Product Description

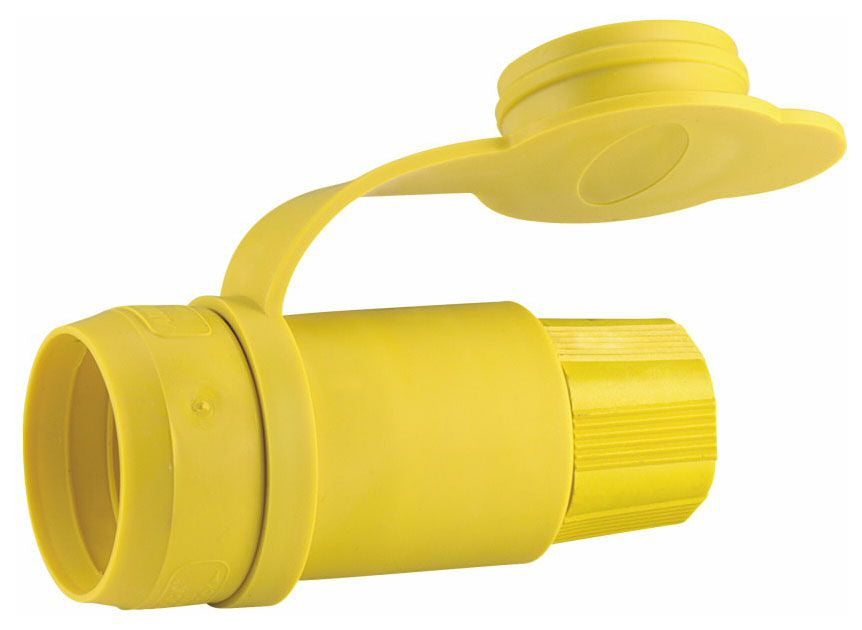

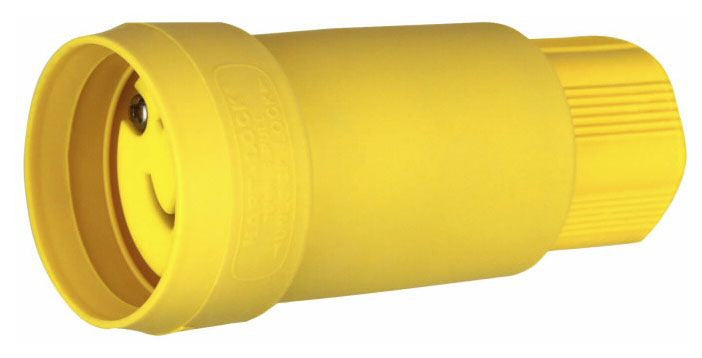

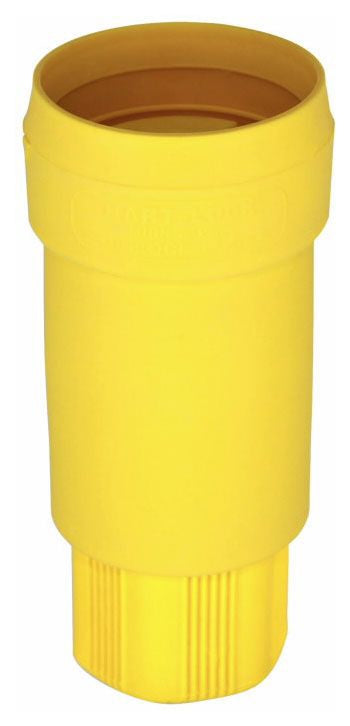

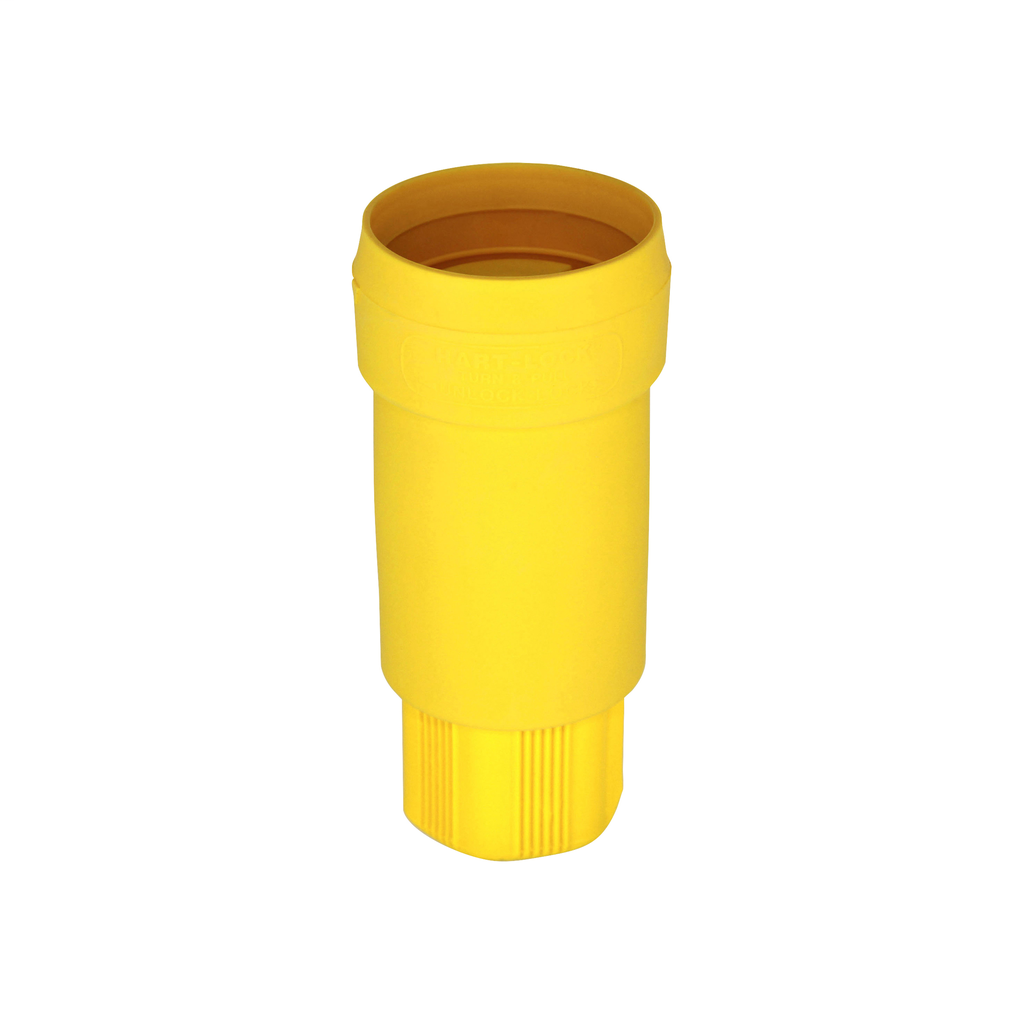

The Eaton 25W47 Arrow Hart watertight locking connector accepts No.18-10 AWG, and is rated for 15 A at 125 V. This industrial connector features back wiring and a Santoprene thermoplastic elastomeric construction. It is two-pole, three-wire, and grounding with a cord size of 0.3 to 0.65 inch.
- Watertight locking connector
- 18-10 AWG
- Industrial
Product Highlights
Watertight locking connector for industrial applications. Features back wiring and Santoprene thermoplastic elastomeric construction.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 25W47
-
Country of Origin: MEX
Technical Specifications
-
Type: Watertight
-
Brand: Eaton
-
Color: Yellow
-
Voltage Rating: 125 VAC
-
Amperage: 15 Amp
-
Material: Thermoplastic
-
Sub Brand: Arrow Hart, Hart Lock
-
Applications: For Industrial Applications
-
Conductor Size: 18-10 AWG
-
Number of Poles: 2 Pole
-
Number of Wires: 3 Wire
-
Contact Material: Nickel Plated
-
Temperature Rating: -40 to 75 degrees C
-
Number of Conductors: 3
-
Constructional Feature: Corrosion Resistant, Watertight
-
Configuration: L5-15R
-
Current Rating: 15 Ampere
-
Ground Type: Grounding
-
Wiring Type: Back
-
Enclosure Type: NEMA 4/4X/6/6P, IP67
-
Wire Size: 18 to 10 AWG
-
ROHS Compliant: True
-
NAFTA Compliant: True
-
Approval: UL (Canada and US), UL 498
-
Flammability Rating: UL 94 V-2
-
NEMA Rating: L5-15
-
Poles: 2
-
Grade: Industrial Extra Heavy-Duty
-
Wiring: Back
-
AWG: 18-10
-
Application: Industrial
-
Product Name: Eaton Arrow Hart watertight locking connector
-
Catalog Number: 25W47
-
UPC: 040893631028
-
Certifications: cULus Listed
-
Product Type: Watertight
-
Amperage Rating: 15A
-
NEMA configuration: L5-15
-
Torque rating: 14 lbf-inch
-
Environmental resistance: IP67 NEMA 6P NEMA 4X NEMA 6 NEMA 4
-
Allowable wire size: #18-10 AWG
-
Wiring method: Back
-
Contact material: Nickel plated brass
-
Cord diameter: 0.3-0.65 in
-
Design type: Watertight locking connector
-
Device grade: Extra heavy-duty industrial specification grade
-
Face/body material: Nylon
-
Special features: Watertight
-
Connector Style: NEMA L5-15C
-
Connector Type: Receptacle, Female Sockets
-
Current Rating (Amps): 15A
-
Voltage: 125V
-
Number of Positions: 3
-
Mounting Type: Free Hanging (In-Line)
-
Termination: Screw
-
Features: Cord Grip
-
Material Flammability Rating: UL94 V-2
-
Ingress Protection: IP67 - Dust Tight, Waterproof
-
Approval Agency: cULus
-
Certificate: cUL/UL Listed
-
Control Style: 2-Pole
-
Maximum Amperage: 15 Amp
-
Maximum Voltage: 125V
