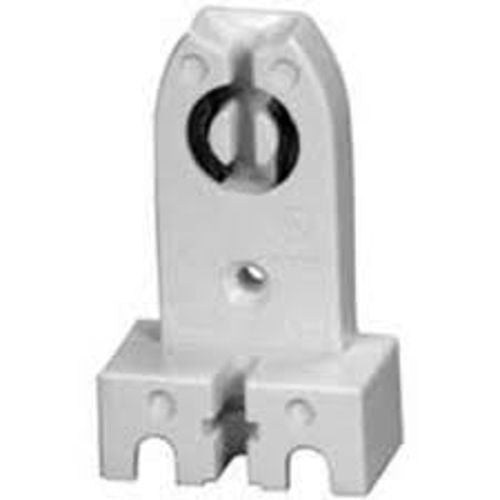

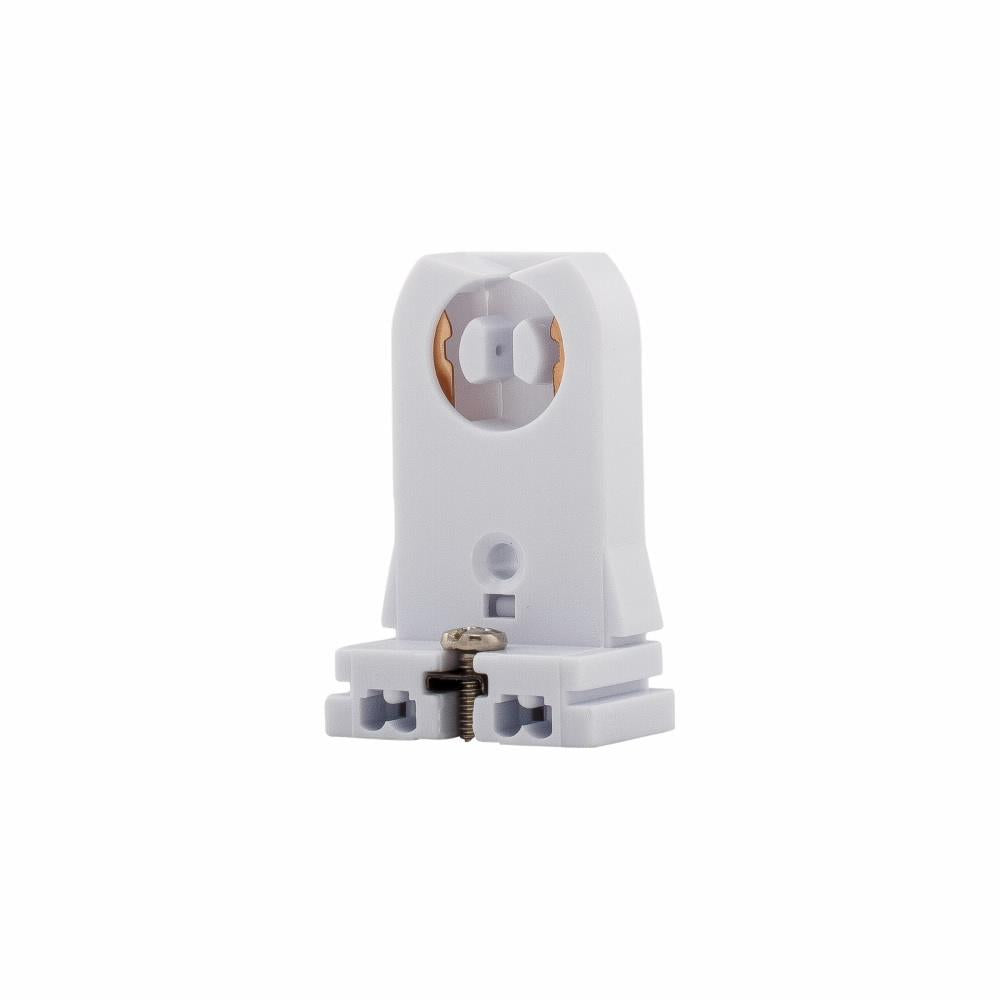

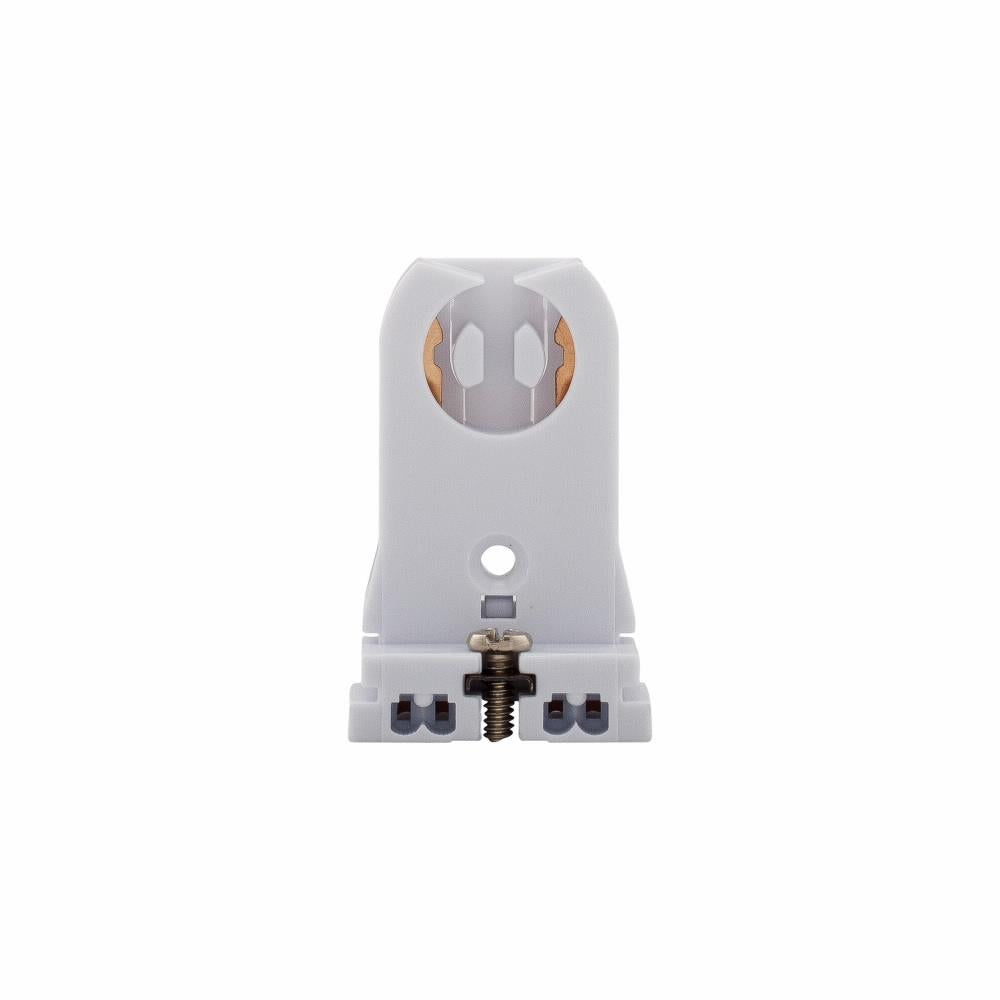

Eaton 2509W-BOX SlimLine Standard Lampholder 660 W

Product Description

The EATON 2509W-BOX SlimLine standard lampholder is designed for use with fluorescent lighting fixtures in flush or surface mount applications. It supports a 660 W lamp and 600 VAC. Ideal for garages, closets, attics, basements, utility rooms, sheds and outbuildings.

• Commercial grade fluorescent lampholder medium bi-pin sockets
• Captive pal nut for easy mounting
• Push-in wire terminals feature release slots

Product Highlights

This lampholder is suitable for indoor and outdoor applications and features push-in wire terminals with release slots for easy mounting.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 2509W-BOX
• Country of Origin: United States

Technical Specifications

• Type: Standard
• Series: SlimLine
• Lamp Wattage: 660 W
• Voltage Rating: 600 VAC
• Lamp Base Type: 2-Pin Medium
• Lamp Type: Fluorescent
• Connection Type: Push Wire/Screw/Slide-On
• Mounting Type: Flush
• Material: Thermoset
• Standard & Approvals: UL, cULus Listed, CSA Certified, NOM 426, RoHS Compliant
• Application: For areas such as garages, closets, attics, basements, utility rooms, sheds and outbuildings
