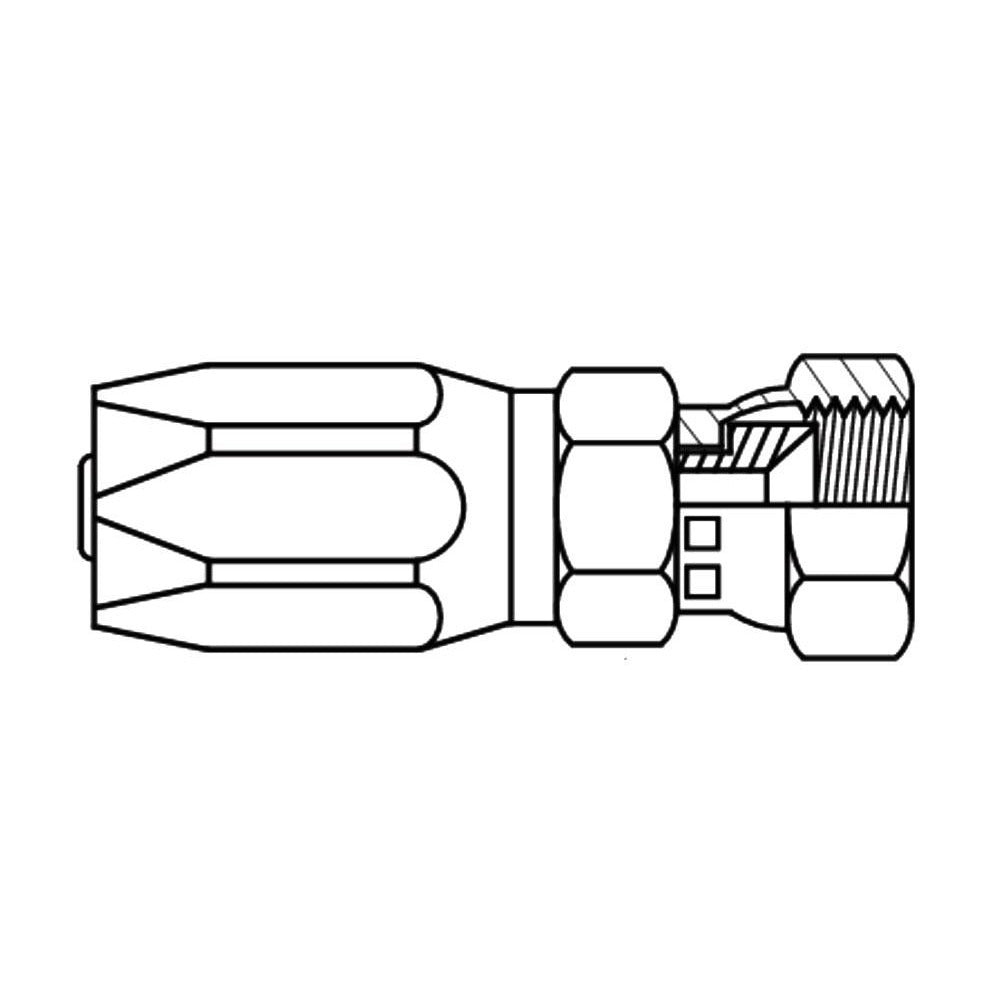

Eaton 24706N-606 Female Swivel Fitting 9/16-18 Jic

Product Description

The EATON 24706N-606 is a reusable hose female swivel fitting designed for JIC (Joint Industry Council) hydraulic and fluid-transfer line connections. Constructed from carbon steel, this fitting accepts a 5/16-inch hose ID and terminates in a 9/16-18 JIC female swivel thread. The swivel design allows the mating hose to rotate during assembly without twisting, reducing installation stress on the line. At 2.35 inches in overall length and weighing just 0.01 pounds, it is a compact, lightweight component suited for tight routing in hydraulic, pneumatic, and fluid systems. Reusable construction means the fitting can be reclaimed and reinstalled on a replacement hose, reducing material waste on service calls.

This fitting is used in hydraulic systems, fluid power circuits, and industrial fluid-transfer assemblies where a JIC 37-degree flare swivel connection is required. It is a common choice in mobile equipment, industrial machinery, and shop-built hydraulic lines. Licensed plumbers, hydraulic technicians, and fluid-power mechanics working on low- to medium-pressure hydraulic circuits will find this fitting appropriate for standard hose-end termination work. Its threaded swivel connection suits applications where the hose must be positioned without torquing the fitting body.

Key Features

• 9/16-18 JIC female swivel thread for 37-degree flare connections
• Reusable design allows fitting to be reclaimed when replacing hose
• Carbon steel construction provides durability in hydraulic fluid environments
• Swivel end reduces hose twist stress during assembly and routing
• Compact 2.35-inch overall length suits tight installation spaces
• Accepts 5/16-inch hose ID for standard small-bore hydraulic lines

Compatibility

Designed as a reusable hose-end fitting for 5/16-inch ID hydraulic hose assemblies requiring a 9/16-18 JIC female swivel termination. Verify hose ID, pressure rating, and fluid compatibility before installation.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid-power mechanic. Depressurize and drain the hydraulic circuit fully before disassembling any fittings. Follow JIC assembly procedures for proper swivel nut torque and seat engagement; consult the system manufacturer's service documentation for torque specifications. Inspect the hose and fitting for damage or contamination before reuse.
