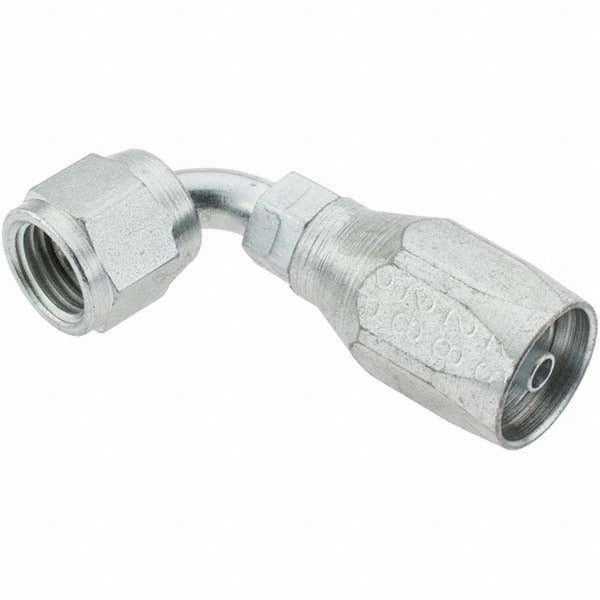

Eaton 24704N-664 Female Swivel Fitting 7/16-20 Sae

Product Description

The EATON 24704N-664 is a reusable female swivel hose fitting designed for hydraulic and fluid-transfer lines requiring a 7/16-20 SAE female thread connection. Built from carbon steel, this fitting accepts a 3/16 inch hose inner diameter and provides a leak-resistant swivel action that allows the hose to be positioned without twisting during assembly or service. Reusable fittings of this type are preferred in field applications where hose ends must be remade without replacing the entire fitting body. Installation and disassembly are straightforward with standard hand tools, making this a practical choice for service technicians working on hydraulic systems, mobile equipment, or fluid power circuits.

This fitting is suited for use in hydraulic hose assemblies where a 7/16-20 SAE female swivel connection is required at the hose end. Typical applications include mobile hydraulic equipment, low-pressure fluid lines, and industrial hose assemblies using 3/16 inch ID hose. The reusable design makes it well suited for shop or field hose fabrication where fittings may need to be reclaimed from replaced hose sections.

Key Features

• 7/16-20 SAE female swivel thread for secure, leak-resistant connections
• Accepts 3/16 inch hose inner diameter
• Carbon steel construction for durability in hydraulic and fluid service
• Reusable design allows disassembly and reuse with replacement hose
• Swivel action prevents hose twist during installation and routing

Compatibility

Designed as an OEM-style reusable female swivel hose end fitting for hydraulic and fluid power hose assemblies using 3/16 inch ID hose with a 7/16-20 SAE female swivel port connection.

Installation Notes

Installation should be performed by a qualified hydraulic or mechanical technician. Depressurize and fully isolate the hydraulic circuit before disassembling any hose or fitting. Inspect the hose cut end for squareness and the fitting body for thread damage before assembly. Follow the fitting manufacturer's assembly procedure for reusable fittings, and verify there are no leaks before returning the system to service.
