Eaton 2174W-BOX combination wallplate 4 Gang

Product Description

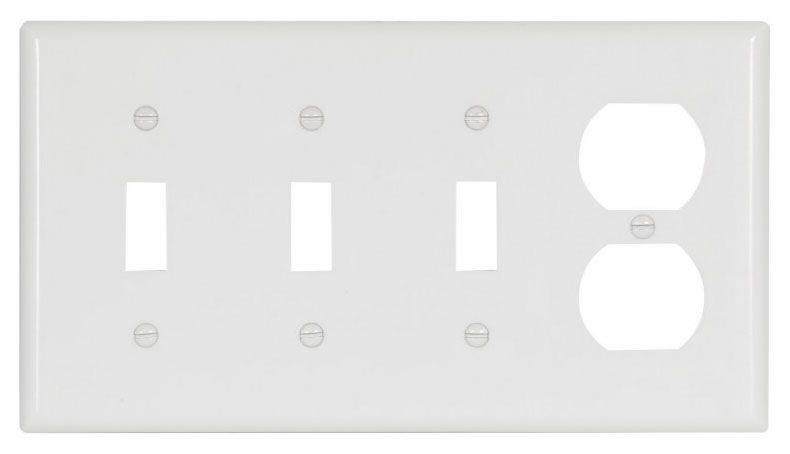

The EATON 2174W-BOX is a combination wallplate designed for a wide range of applications. This standard size, four-gang wallplate is constructed from thermoset material and includes matching mounting screws. It features a configuration of one duplex receptacle and three toggle switches. It is UL and cUL listed and RoHS/NAFTA compliant.

• Configuration: (1) Duplex Receptacle, (3) Toggle Switch
• Constructed from 0.08 inch thickness thermoset material
• Overall dimension: 8.19 Inch Width x 4.5 Inch Height

Product Highlights

The EATON 2174W-BOX combination wallplate provides a durable and compliant solution for residential applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 2174W-BOX
• Country of Origin: MEX

Technical Specifications

• Number of Gangs: 4
• Designated Size: Standard
• Material: Thermoset
• Includes: Mounting Screws
• Temperature Rating: -40 to 90 Deg C
• Packaging Type: Box
• Approvals: UL (Canada and US), UL 514D, C22.2
• Cutout: 0.93 in H x 0.4 in W Toggle, 1.13 in H x 1.34 in W Duplex Receptacle
• Type: Standard
• Mounting: Surface
• Number of Ports: 5
• Thickness: 0.08 in
• UPC: 032664519864
• UNSPSC: 39121704
• Vendor SKU: 2174W-BOX
• Standard & Approvals: UL Listed to UL 514D File No. E33216, cUL Listed to C22.2 File No. 42.1, UL File E33216, RoHS Compliant
• Application: Residential Applications
• Manufacturer: EATON
• Product Length/Depth: 0.08 in
• Product Height: 4.5 in
• Product Width: 8.19 in
• Compliances: NAFTA RoHS Compliant
• Certifications: CSA Certified cULus Listed UL Listed
• Product Type: Combination wallplate
• Wallplate size: Standard
• Product Series: Standard Size Wallplate
• Family Series: Eaton Electrical Box Covers, Standard Size Wallplate Series
• Composition: Non-Metallic
• Cover Type: Combination - Switch and Receptacle
• Cover Design: Flat
• Gasket Included: No
