Eaton 210292-10S Aeroquip Cap for Male JIC Fitting 5/8 JIC(f)

Product Description

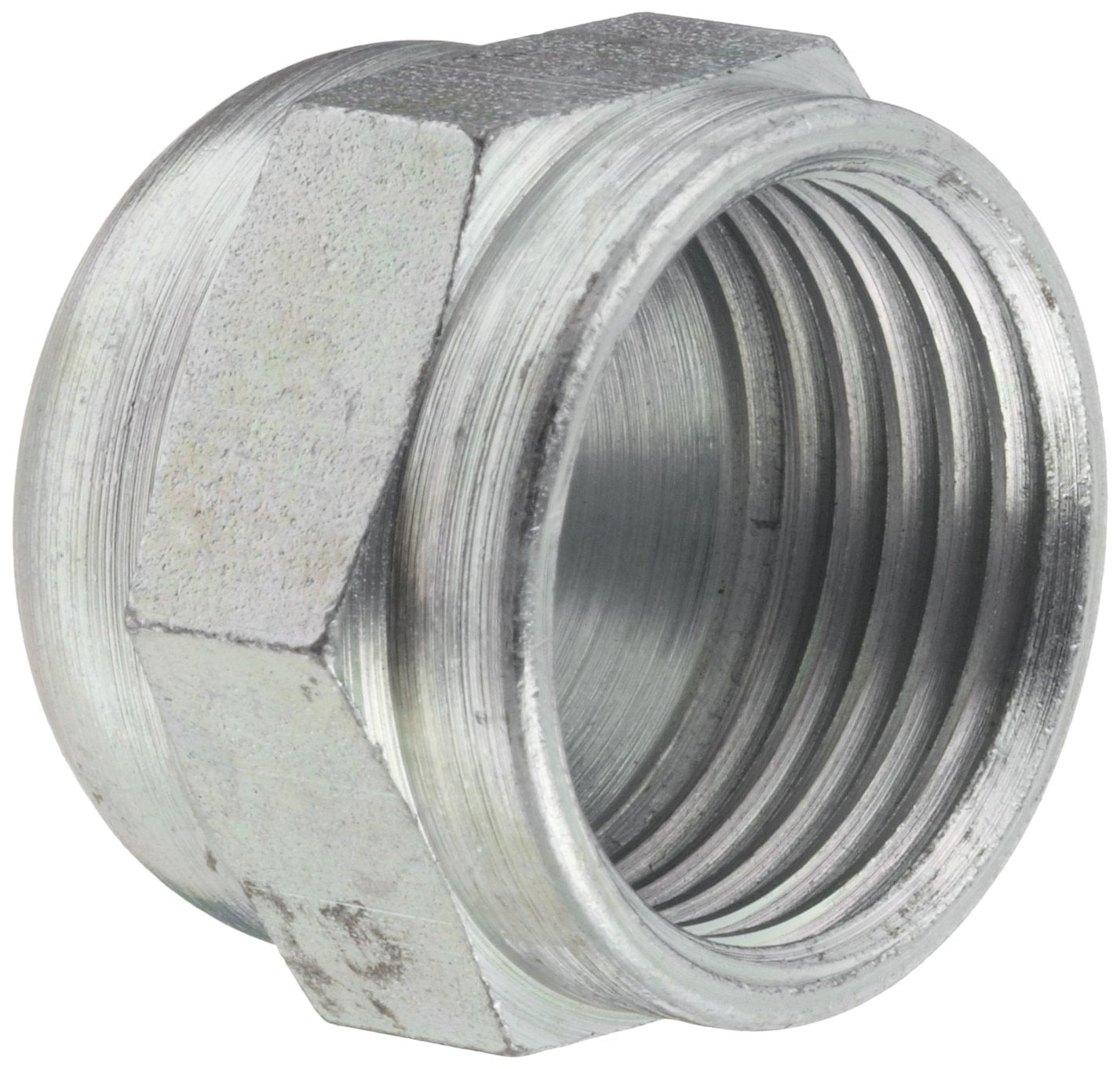

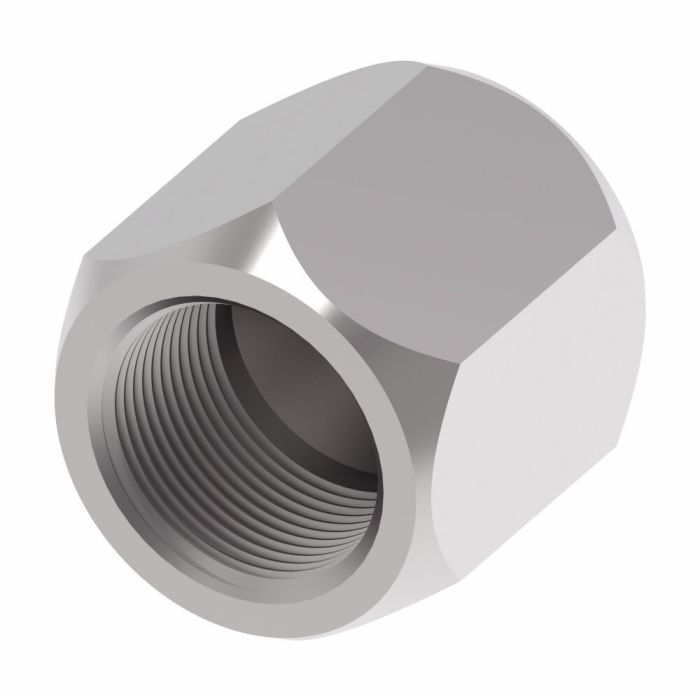

The Eaton 210292-10S Aeroquip cap is designed for closing the end of a male JIC fitting. Constructed from carbon steel for tensile strength and hardness, it features JIC threads to securely cap a JIC male end. This cap is SAE-compliant for standards J512, J513, J514, J1926 and J1453 for functional requirements.

• Cap for closing the end of a fitting
• JIC threads to cap a JIC male end
• Carbon steel for tensile strength and hardness

Product Highlights

This Aeroquip cap is ideal for light to medium pressure applications, ensuring a reliable seal in hydraulic systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 210292-10S
• Country of Origin: US

Technical Specifications

• End Types: JIC 37 Degree
• Material: Carbon Steel
• End Size: 5/8 JIC(f)
• Tube OD: 5/8"
• A: 0.84
• Alternate Part Number: MINO-00015F64517
• B: 1
• Brand: Aeroquip
• Pack Size: 1.00
• UOM: EA
• End Size 1: 0.63
• End Type 1: SAE 37
• Minimum Working Temperature: -40
• Supplier Part Number: 210292-10S
• Thread 2: 7/8-14
• Thread Sealant: No
• Tube O.D.: 0.63
• MPN: 210292-10S
• Features: Hydraulic Hose Cap, For Hose Dash Size -10, For Hose I.D. 5/8 in, Thread Size 7/8 In.-14, 3, 000 psi, Reusable Yes, Steel, 12L14, 12L15, SAE/JIC 37 Degrees
• Country of Origin: US
