Eaton 20Z-677-BG Female Jic Swivel 90 Elbow 20mm 1-5/8-12

Product Description

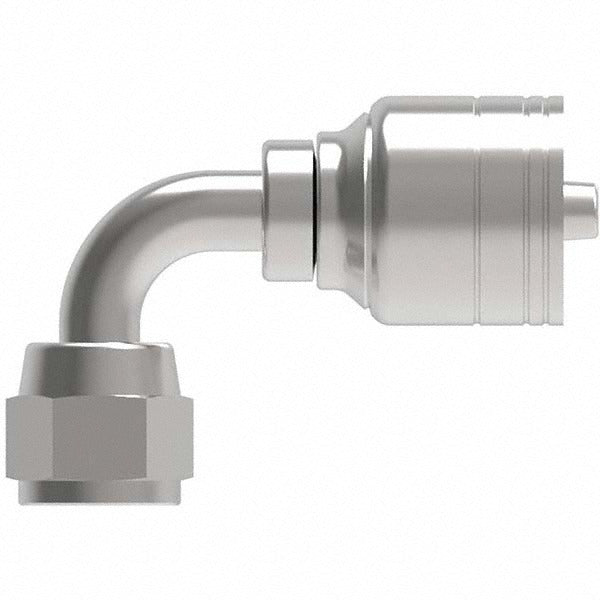

The EATON 20Z-677-BG is a female JIC swivel 90-degree elbow hydraulic hose fitting manufactured from steel. It is designed to create a secure, leak-resistant connection at a right angle between a hydraulic hose and a port or component in high-pressure fluid systems. The fitting uses a JIC 37-degree flare seating surface and a 1-5/8-12 thread size, making it suitable for high-flow hydraulic lines. It is installed by hydraulic system technicians and heavy equipment mechanics in industrial, mobile, and agricultural hydraulic circuits where routing space requires a 90-degree change in hose direction.

This fitting is applied in hydraulic systems that require a swivel-style female JIC elbow to manage hose routing around obstructions or to reduce stress on hose ends. The swivel design allows the hose to be positioned without twisting during installation or operation. Common installation scenarios include mobile equipment, industrial machinery, and agricultural equipment hydraulic circuits. The 20 mm hose size classification and 1-5/8-12 thread designation are key for matching this fitting to the correct hose assembly and port specification.

Key Features

• Female JIC swivel 90-degree elbow configuration for flexible hose routing
• JIC 37-degree flare seating surface for reliable, leak-resistant connections
• 1-5/8-12 thread size for correct port and hose end matching
• Steel construction for durability in high-pressure hydraulic applications
• Swivel design prevents hose twisting during installation and under operating loads
• 20 mm hose size classification for use with matching hose assemblies

Compatibility

Designed as an OEM-style replacement female JIC swivel 90-degree elbow fitting for hydraulic hose assemblies with a 20 mm hose size and 1-5/8-12 JIC thread specification.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and isolate the hydraulic circuit fully before removing or installing any fittings. Inspect the JIC 37-degree flare seating surfaces on both the fitting and the mating component for damage or contamination before assembly. Torque the fitting to the equipment or hose manufacturer specifications using appropriate flare-fitting wrenches; do not use pipe-thread sealants on JIC flare connections.
