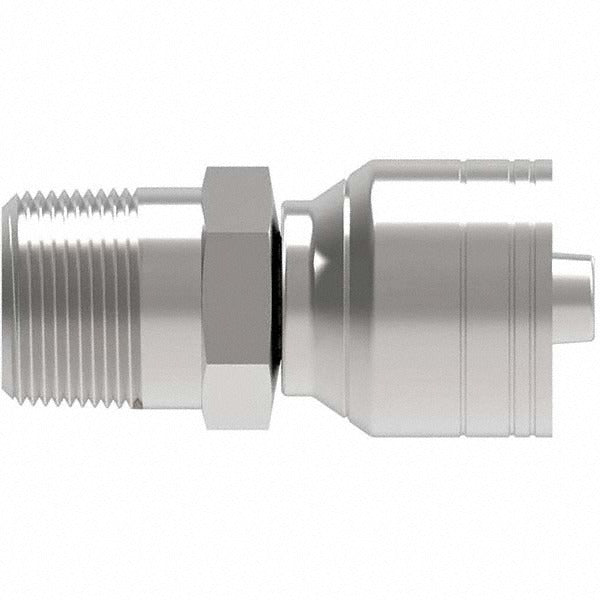

Eaton 20Z-120-BG Hydraulic Hose Male Pipe Rigid Fitting

Product Description

The EATON 20Z-120-BG is a male pipe rigid fitting designed for hydraulic hose assemblies. It provides a fixed, non-swivel connection at the hose end, joining hydraulic lines to male pipe thread ports. Constructed from steel, this fitting handles the pressure and vibration demands typical of industrial and mobile hydraulic systems. The 1-1/4-11-1/2 MPT thread size and 1-13/16 inch hex make it compatible with standard wrenching tools. Licensed hydraulic technicians and industrial maintenance professionals install this type of fitting during hose assembly fabrication or field replacement on hydraulic circuits.

This fitting is suited for hydraulic hose assemblies in industrial machinery, mobile equipment, and fluid power systems requiring a rigid male pipe thread termination. The 20 mm hose size designation and 1-1/4 inch hose diameter make it appropriate for medium-to-large bore hydraulic circuits. It is typically installed at pump outlets, valve ports, cylinder connections, or manifold interfaces where a fixed-angle pipe thread connection is required and a swivel end is not needed.

Key Features

• Male pipe rigid (non-swivel) fitting for secure, fixed-angle hose terminations
• Steel construction for durability under hydraulic pressure and mechanical stress
• 1-1/4-11-1/2 MPT thread size for standard pipe thread port connections
• 1-13/16 inch hex size allows installation with standard open-end or combination wrenches
• Designed for 20 mm hose size with 1-1/4 inch hose diameter
• Sold individually — package quantity of one

Compatibility

Designed as an OEM-style replacement rigid male pipe fitting for hydraulic hose assemblies using 20 mm hose with a 1-1/4-11-1/2 MPT thread port connection.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and de-energize the hydraulic system fully before removing or installing any hose fittings. Use the 1-13/16 inch hex with a properly rated wrench and do not over-torque, as rigid pipe thread fittings rely on thread engagement and sealant rather than a sealing face. Apply an appropriate thread sealant compatible with the hydraulic fluid in service, following the system manufacturer and applicable fluid power standards.
