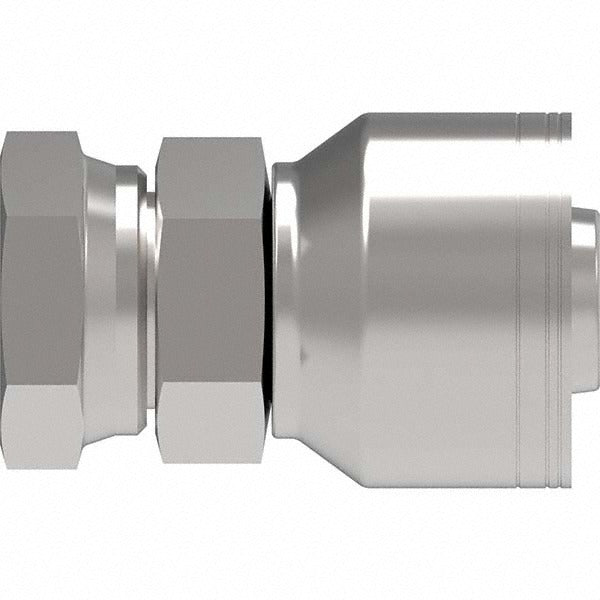

Eaton 20Z-070-BG Hydraulic Hose Swivel Fitting 1-1/4 Fpt

Product Description

The EATON 20Z-070-BG is a female straight pipe swivel fitting designed for hydraulic hose assemblies. It connects a 20 mm hose to a 1-1/4-11-1/2 female pipe thread (FPT) port in a straight, in-line configuration. The swivel design allows the fitting to rotate during installation, reducing hose twist and making it easier to achieve proper routing without stressing the hose or the mating port. Constructed from steel, this fitting delivers the mechanical strength required for demanding hydraulic service. It measures 3.65 inches in length and 2.41 inches in both height and width, with a packaged weight of 1.32 pounds. Hydraulic system technicians and fluid power mechanics are the primary installers.

This fitting is suited for use in industrial, mobile, and off-highway hydraulic systems where a straight female pipe swivel connection is required between a 20 mm hydraulic hose and an FPT port. Typical applications include connecting hose assemblies to pumps, cylinders, manifolds, and other hydraulic components that use standard pipe thread ports. The swivel feature is especially useful in confined spaces or where hose routing geometry makes fixed fittings impractical.

Key Features

• Female straight pipe swivel fitting for in-line hydraulic hose connections
• Compatible with 20 mm hose diameter and 1-1/4-inch hose diameter
• 1-1/4-11-1/2 FPT thread size for standard pipe thread port compatibility
• Steel construction for high mechanical strength in hydraulic service
• Swivel body reduces hose twist during assembly and routing
• Single-piece packaging with a minimum order quantity of 1

Compatibility

Designed as a replacement-style hydraulic hose fitting for systems requiring a 20 mm hose connection to a 1-1/4-11-1/2 FPT port in a straight swivel configuration.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power mechanic. Depressurize and isolate the hydraulic circuit fully before removing or installing any fitting. Use appropriate thread sealant on the pipe thread end in accordance with the system manufacturer's requirements and applicable fluid power standards. Do not overtighten; use a calibrated torque wrench and follow the fitting manufacturer's torque specifications for the thread size and material involved.
