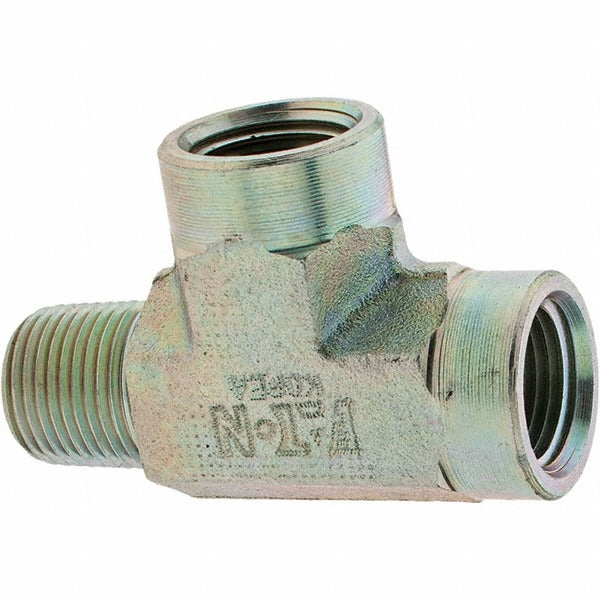

Eaton 2092-6-6S Pipe Tee 3/8 Mnpt X Fnpt X Fnpt 5000 Psi

Product Description

The EATON 2092-6-6S is a heavy-duty industrial pipe tee designed to split or combine flow in high-pressure hydraulic and pneumatic piping systems. It features a male NPT run connection with two female NPT branch outlets, forming a standard MNPT x FNPT x FNPT configuration. Rated to 5,000 psi maximum working pressure, this fitting handles demanding service conditions across a wide temperature range of -65 degrees F to 400 degrees F. Licensed plumbers, pipefitters, and hydraulic technicians install this fitting in industrial, commercial, and heavy-equipment applications where reliable, leak-free threaded connections are required.

This tee is suited for use in industrial piping systems, hydraulic power units, pneumatic distribution lines, and commercial plumbing assemblies where a threaded branch connection is needed. The 3/8 x 3/8 inch thread size makes it a common choice for moderate-flow branch circuits in high-pressure fluid systems. It conforms to SAE 140424 standards, making it appropriate for applications where compliance to recognized industry specifications is required.

Key Features

• 5,000 psi maximum working pressure for demanding hydraulic and pneumatic service
• MNPT x FNPT x FNPT connection type for straightforward threaded installation
• 3/8 x 3/8 inch male and female thread sizing for standard pipe compatibility
• Wide operating temperature range of -65 degrees F to 400 degrees F
• Meets SAE 140424 standard for industrial fitting applications

Compatibility

Designed as an OEM-style replacement or direct-install fitting for industrial piping and hydraulic systems requiring a 3/8 inch MNPT x FNPT x FNPT tee rated to 5,000 psi.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified hydraulic technician. Depressurize and isolate the system completely before removing or installing any fittings. Apply appropriate thread sealant to NPT threads per the fluid media and system requirements. Verify all connections are wrench-tight and inspect for leaks before returning the system to service.
