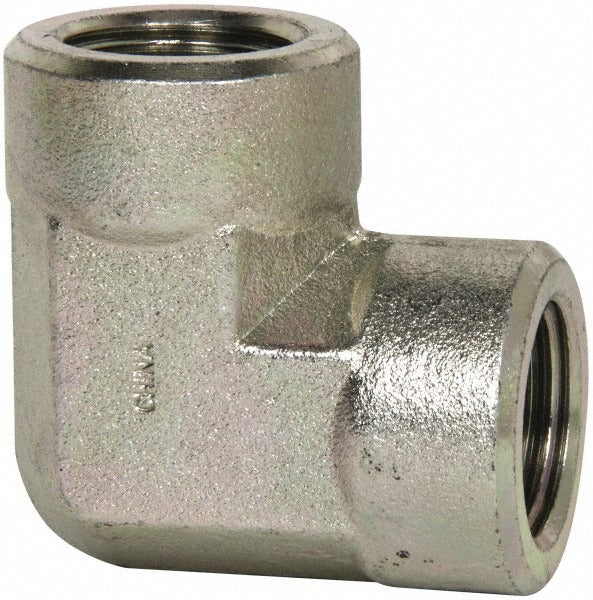

Eaton 2087-8-8S 90 Degree Female Pipe Elbow 1/2 Inch Fnpt

Product Description

The EATON 2087-8-8S is a 90-degree female pipe elbow designed for high-pressure industrial fluid and pneumatic systems. This fitting accepts 1/2 inch female National Pipe Taper (FNPT) connections on both ports, allowing a right-angle turn in threaded pipe or hose assemblies. It carries a maximum working pressure of 4,000 psi and a pressure rating of 5,000 psi, making it suitable for demanding hydraulic and pneumatic applications. The fitting is rated for service from -65 degrees F to 400 degrees F. Licensed plumbers, pipefitters, and hydraulic technicians typically specify this type of elbow for rerouting lines in tight equipment enclosures or manifold assemblies.

This elbow is intended for industrial pipe and hydraulic systems that require a compact, threaded 90-degree direction change. It is well suited for use in hydraulic power units, compressor plumbing, and industrial fluid-transfer lines where FNPT threaded connections are specified. The 1/2 inch thread size fits a wide range of standard valves, fittings, and ported manifolds used in commercial and industrial settings. Conformance to SAE 140238 standards ensures dimensional and pressure-performance consistency across matched components.

Key Features

• 90-degree female elbow configuration for right-angle FNPT threaded connections
• 1/2 inch FNPT thread on both ports for direct in-line pipe or hose assembly integration
• Maximum working pressure of 4,000 psi with a pressure rating of 5,000 psi
• Wide temperature range: -65 degrees F to 400 degrees F
• Meets SAE 140238 standards for dimensional and performance compliance

Compatibility

Designed as an OEM-style replacement or add-on fitting for industrial hydraulic and pneumatic pipe assemblies using 1/2 inch FNPT threaded connections rated for high-pressure service.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified hydraulic technician. Depressurize and isolate the system fully before removing or installing any threaded fittings. Apply an appropriate thread sealant rated for the working fluid and pressure before assembly. Follow applicable codes such as the International Plumbing Code (IPC) or relevant OSHA and ASME B31 piping standards for the system type.
