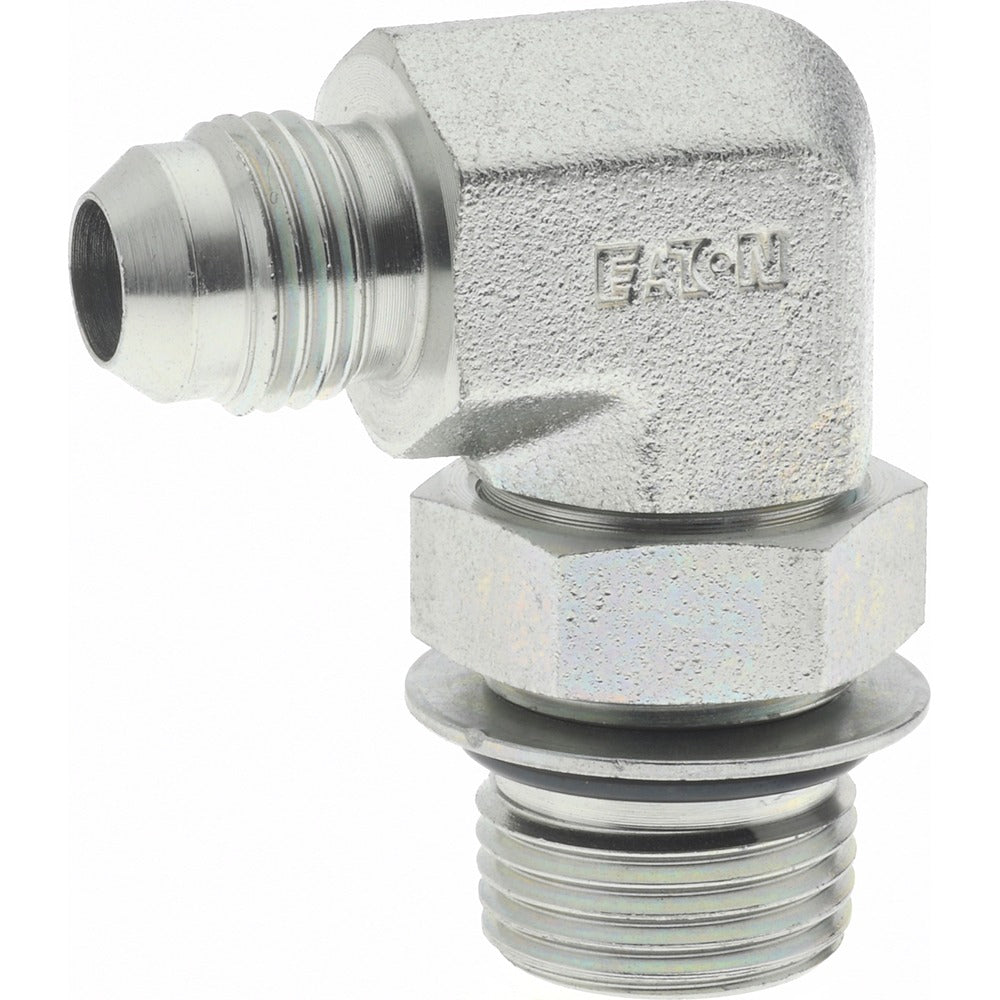

Eaton 2062-8-6S Steel Flared 90 Deg Elbow 3/8 in Tube Od

Product Description

The EATON 2062-8-6S is a 90-degree straight thread elbow fitting designed for high-pressure hydraulic and fluid power systems. It connects a 37-degree flared tube end to a male SAE O-Ring Boss (ORB) port, providing a reliable, leak-resistant joint in demanding applications. Constructed from steel, the fitting handles working pressures up to 6000 psi and operates across a temperature range of -65 degrees F to 400 degrees F. With an overall length of 1.885 inches and a tube outside diameter of 3/8 inch, it fits cleanly into tight plumbing runs. Licensed HVAC, plumbing, and fluid power technicians install this type of fitting in hydraulic lines, refrigeration systems, and related fluid circuit assemblies.

This fitting is suited for industrial, commercial, and mobile hydraulic plumbing where a 90-degree change of direction is required between a flared tube line and a straight-thread O-Ring Boss port. The 37-degree flare angle conforms to SAE standard 070220, making it appropriate for OEM and field-service applications where SAE-compliant fittings are specified. It is sold individually and is a direct-use component requiring no additional hardware beyond compatible tubing and a properly sized ORB port.

Key Features

• 90-degree elbow geometry for directional routing in tight plumbing runs
• 37-degree flared tube end meets SAE 070220 specification
• Male SAE O-Ring Boss thread provides a positive, leak-resistant seal at the port connection
• Rated to 6000 psi maximum working pressure for demanding hydraulic applications
• Wide service temperature range: -65 degrees F to 400 degrees F
• Steel construction for durability in high-pressure fluid and hydraulic environments

Compatibility

Designed for use with 3/8 inch OD flared tubing and 1/2 inch male SAE O-Ring Boss (ORB) ports in hydraulic, fluid power, and related plumbing systems conforming to SAE 070220 standards.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic or fluid power plumbing. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the mating tube end is properly flared to a 37-degree angle using a calibrated flaring tool before assembly. Verify thread engagement and O-ring seating visually before returning the system to service, and inspect for leaks at operating pressure during initial startup.
