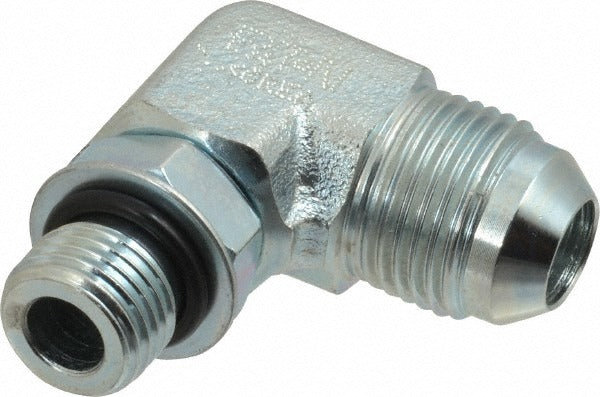

Eaton 2062-6-8S Steel 90 Deg Flared Tube Elbow 1/2 in Od

Product Description

The EATON 2062-6-8S is a 90-degree straight thread elbow fitting designed to connect flared tubing to male SAE O-ring boss (ORB) ports in hydraulic and fluid power systems. Constructed from steel, it accepts a 1/2-inch tube OD with a 37-degree flare angle and mates to a 3/8-inch ORB male thread end. Rated to 6000 psi maximum working pressure, this fitting handles demanding hydraulic circuits. The operating temperature range spans -65 degrees F to 400 degrees F, making it suitable for both cold-start and high-heat system environments. It is sold individually and weighs 0.22 pounds.

This fitting is used in hydraulic lines, fluid power assemblies, and industrial tubing systems where a 90-degree change of direction is required between a flared tube and an SAE O-ring port. Typical installation scenarios include mobile hydraulic equipment, industrial machinery, and any system routed to SAE ORB ported components. It is installed by hydraulic technicians, pipefitters, and mechanical contractors working on high-pressure fluid circuits.

Key Features

• 90-degree elbow geometry allows directional routing of hydraulic tubing in tight spaces
• 37-degree flare angle conforms to SAE standard flare specifications
• Flared tube to male SAE O-ring end connection provides a reliable, leak-resistant seal
• 6000 psi maximum working pressure rating suitable for high-pressure hydraulic circuits
• Wide temperature range of -65 degrees F to 400 degrees F supports diverse operating environments
• Steel construction provides strength and durability in demanding fluid power applications

Compatibility

Designed for use in hydraulic and fluid power systems requiring a 90-degree flared tube to male SAE O-ring boss connection with a 1/2-inch tube OD and 3/8-inch ORB thread, conforming to SAE 070220 standards.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. De-energize and depressurize the hydraulic system fully before removing or installing any fitting. Inspect the flare seat and O-ring sealing surface for damage before assembly, and ensure the SAE O-ring is in good condition and properly seated before torquing. Follow applicable system design and safety standards for high-pressure hydraulic plumbing.
