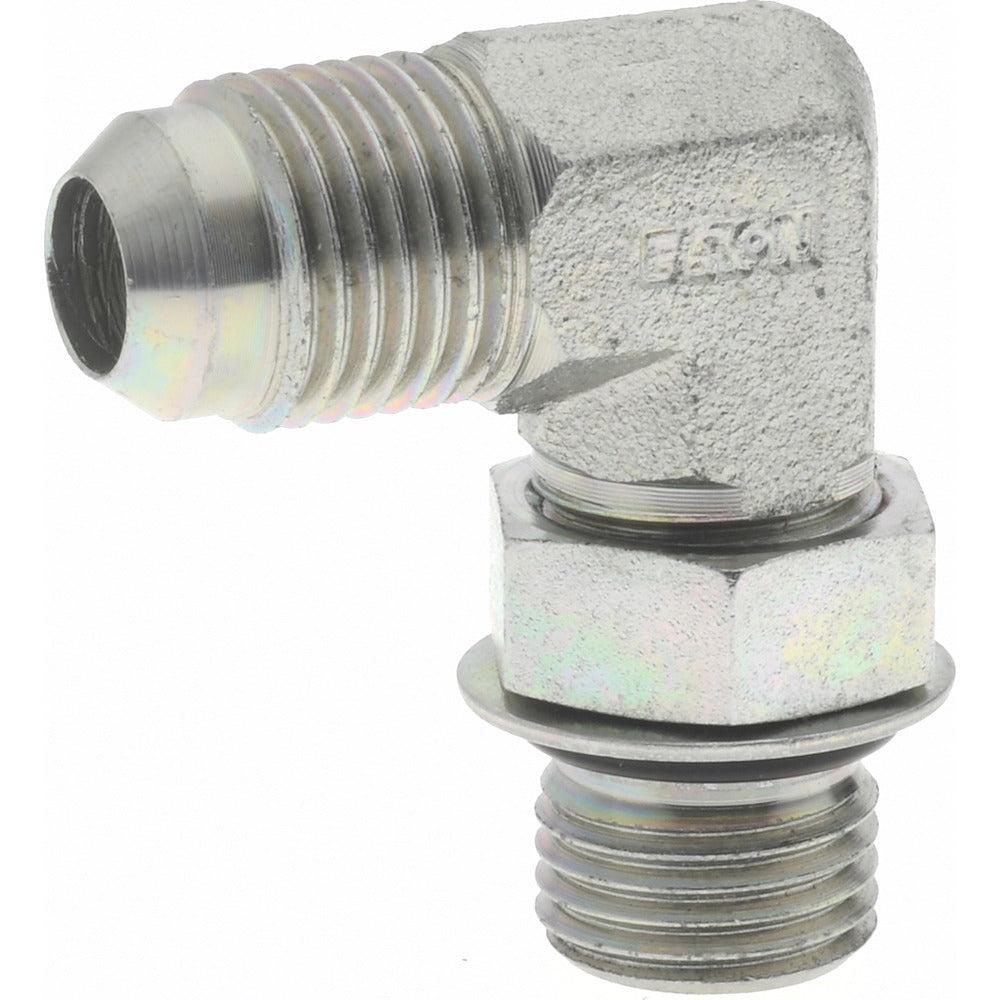

Eaton 2062-6-6S Steel 90 Deg Flared Elbow 3/8 in Tube Od

Product Description

The EATON 2062-6-6S is a 90-degree straight thread elbow fitting designed to connect flared tubing to male SAE O-ring boss (ORB) ports. Constructed from steel, this fitting features a 37-degree flare angle and a 3/8-inch tube outside diameter. It is rated for up to 6000 psi working pressure and handles temperatures from -65 degrees F to 400 degrees F, making it suitable for high-pressure hydraulic and fluid power lines. Licensed HVAC technicians, plumbers, and hydraulic system technicians install this type of fitting in compressed fluid systems requiring a reliable, leak-resistant angled connection.

This elbow fitting is used in residential and commercial hydraulic, pneumatic, and refrigeration plumbing applications where a 90-degree directional change is required at a straight thread port. It is a flared-to-male SAE O-ring end fitting conforming to SAE 070220 standards. Typical installation scenarios include hydraulic power units, fluid transfer systems, and high-pressure tubing assemblies where space constraints require an angled routing solution.

Key Features

• 90-degree elbow configuration for space-efficient tube routing
• 37-degree flare angle with flared-to-male SAE O-ring end connection
• Rated to 6000 psi maximum working pressure
• Wide temperature range: -65 degrees F to 400 degrees F
• Steel construction for durability in high-pressure applications
• Conforms to SAE 070220 standard

Compatibility

Designed as an OEM-style replacement or new-installation fitting for high-pressure hydraulic and fluid power systems using 3/8-inch OD flared tubing with male SAE O-ring boss port connections.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic or fluid power systems. Depressurize and fully isolate the system before removing or installing any fittings. Ensure the mating port threads and O-ring seating surfaces are clean and undamaged before assembly. Follow applicable system pressure ratings and SAE fitting standards during installation.
