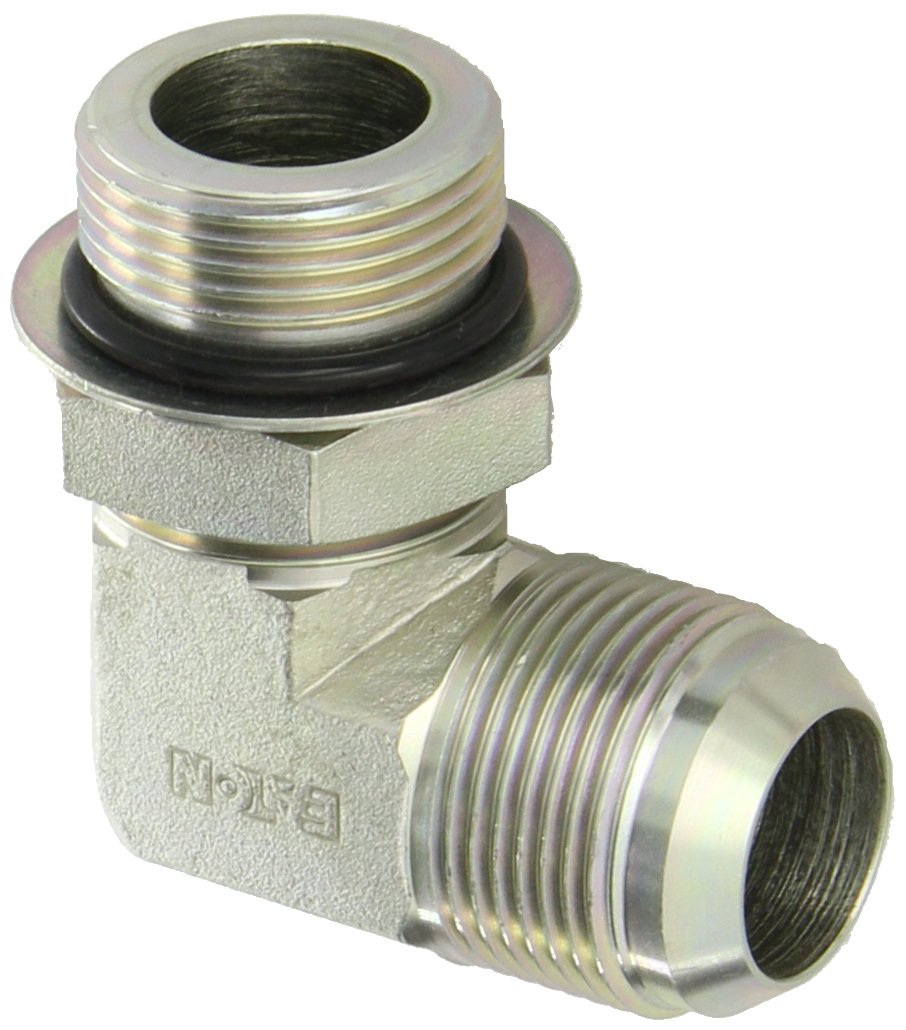

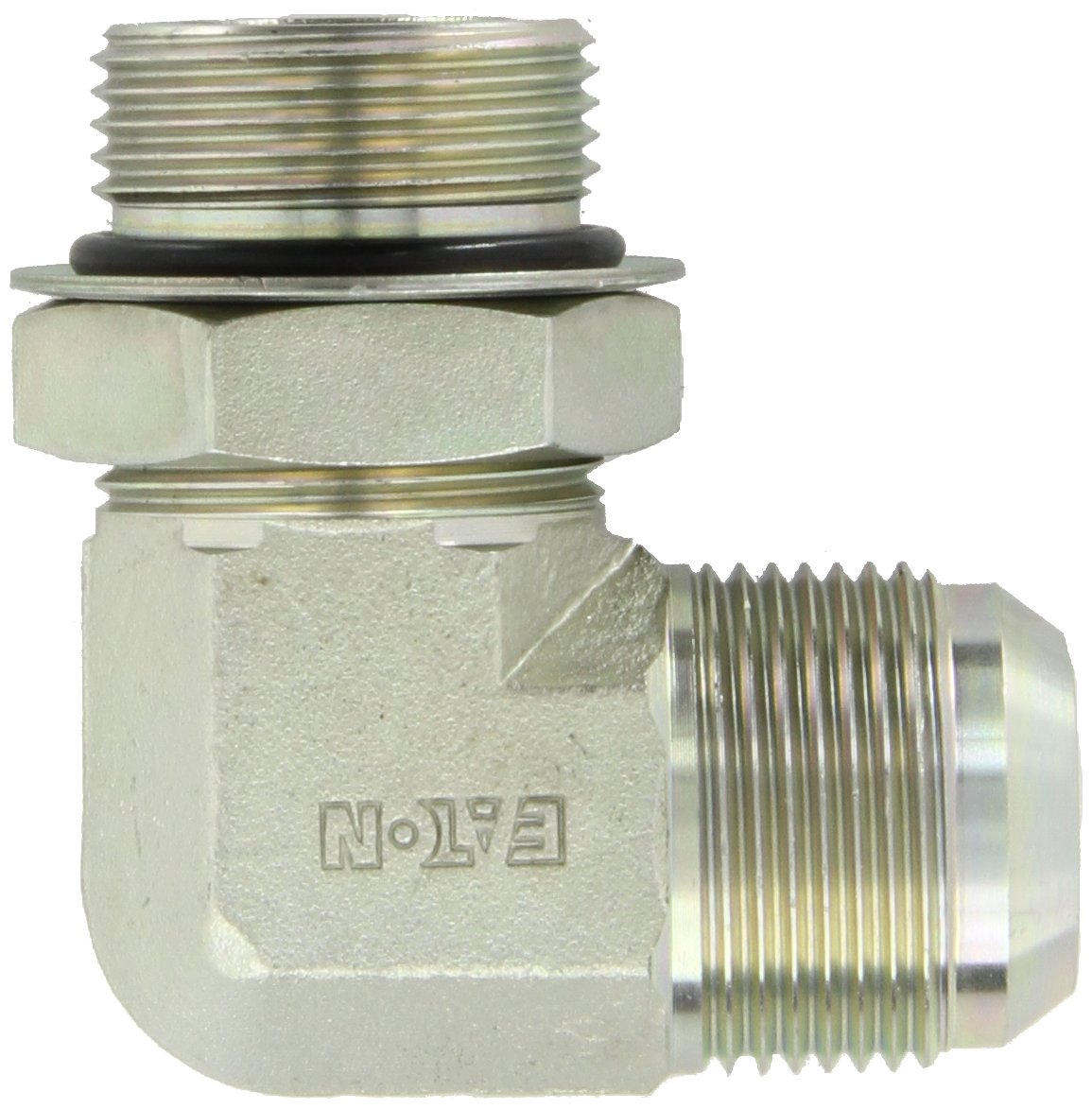

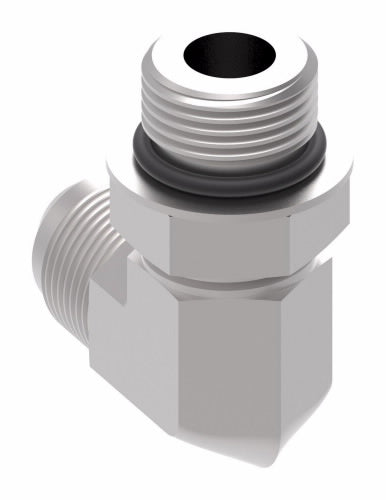

Eaton 2062-16-16S Aeroquip Steel Flared Tube Fitting 90 Degree Elbow 1 inches Male JIC x 1 inches O-Ring Boss Male

Product Description

The Eaton 2062-16-16S Aeroquip steel flared tube fitting is designed for connecting, branching, and changing the direction of tubing in pneumatic and hydraulic systems. This fitting features a 90-degree elbow with 1" Male JIC x 1" O-Ring Boss Male connection type. It is compliant with military standard MIL-F-18866 and Society of Automotive Engineers standard SAE J514.

• Joint Industry Council (JIC) male 90-degree elbow for connecting a tube to an O-ring boss female at a 90-degree angle
• Male JIC threads on one end and male O-ring boss threads on the other end for connecting two different threaded ends
• Steel for weldability and greater resistance to rust than iron

Product Highlights

This steel flared tube fitting is suitable for use in machine tools, airplane and truck controls, and automated production lines.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 2062-16-16S
• Country of Origin: CN

Technical Specifications

• Fitting Angle: 90-Degree
• Material: Steel
• Connection Type: Male JIC x Male O-Ring Boss
• Size: 1" Male JIC x 1" O-Ring Boss Male
• Standards Met: Military standard MIL-F-18866 compliant, Society of Automotive Engineers standard SAE J514 compliant for 37-degree JIC flare type tubing
• Application: Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
• Brand: Aeroquip
• End Gender 1: Male
• End Gender 2: Male
• End Type 1: SAE ORB
• End Type 2: SAE 37
• Minimum Working Temperature: -65
• Supplier Part Number: 2062-16-16S
• Thread 1: 1-5/16-12
• Thread 2: 1-5/16-12
• Thread Sealant: No
• Tube O.D.: 1
• MPN: 2062-16-16S
• Fitting Shape: 90 Degrees Elbow
• Fitting Movement: Rigid
• Fitting Material: Carbon Steel x Carbon Steel
• Fitting Connection Type: ORB x JIC
• Max. Working Pressure @ 70 F: 2,500 psi
• Hose Adapter Material: Carbon Steel
• Max. Working Pressure (PSI): 2500
• Fitting Thread Type 2: Male JIC
• Standards: SAE/JIC 37 Degrees
• Finish: Trivalent Chromate Zinc
• Fitting Thread Type 1: Male ORB
• Includes O-Ring: Yes
• Crimpable: No
• Hose Fitting A Gender: Male
• Hose Fitting A Connection Type: ORB
• Hose Fitting B Gender: Male
• For Hose Type: Hydraulic
• Hose Fitting B Connection Type: JIC
• Material Grade: 12L14, 12L15
• Product Trade Name: 2062 Series
• Angle Shape: 90 Degree
• End Size 1: 1 5/16 IN
• End Size 2: 1 5/16 IN
• Finish Plating: DURA-KOTE
• Hex Size 1: 1.5 inch
• Item Type: SAE ORB Male/SAE 37 Male Elbow Adapter
• Product Material: Carbon steel
• Segment Code: A
• Sub Brand: None
• Working Temperature Max: 400 degree Fahrenheit
• Fitting Size: 1 in x 1 in
• Fitting Thread Size 1: 1-5/16"-12
• Fitting Thread Size 2: 1-5/16"-12
• Hose Fitting A Size: 1 in
• Hose Fitting B Size: 1 in
• Overall Length: 2.05 in
• Item: Hydraulic Hose Adapter
