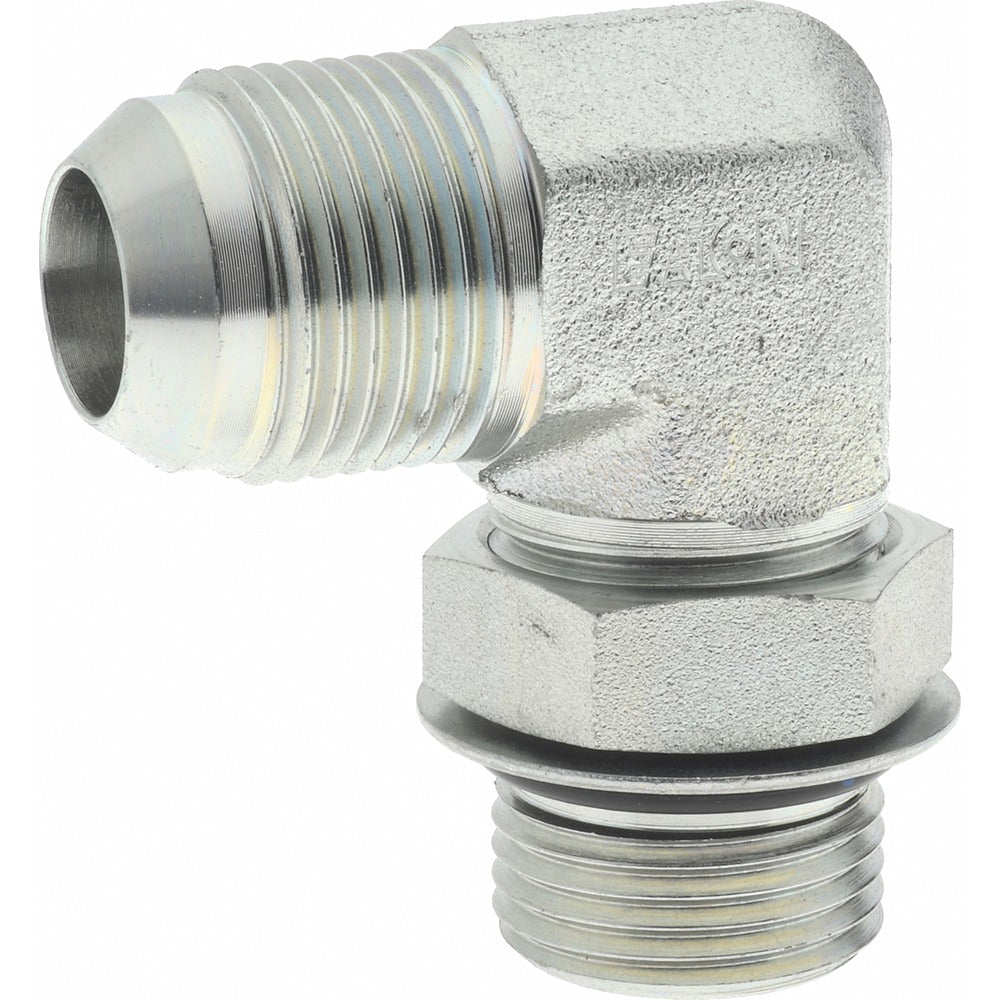

Eaton 2062-12-12S Steel 90 Deg Flared Tube Elbow 3/4 in

Product Description

The EATON 2062-12-12S is a 90-degree straight thread elbow fitting designed for high-pressure hydraulic and fluid system applications. Machined from steel, it connects flared tubing to male SAE O-Ring Boss (ORB) ports. The fitting features a 37-degree flare angle on the tube end and a male SAE O-Ring connection on the threaded end, providing a reliable seal under demanding conditions. It is rated for working pressures up to 6000 psi and handles temperatures from -65 degrees F to 400 degrees F. The 0.75-inch tube OD and 0.610-inch inside diameter support solid flow capacity in tight routing scenarios. Hydraulic technicians, plumbers, and industrial maintenance pros install this fitting in tube assemblies where a 90-degree change in direction is required.

This elbow is suited for residential and commercial fluid power, hydraulic, and refrigeration-adjacent plumbing systems where steel construction and SAE O-Ring Boss thread standards are specified. The 37-degree flared tube connection is compatible with standard SAE flared tube assemblies. It is commonly installed in equipment requiring compact 90-degree tube routing with leak-free, high-pressure connections at the ORB port interface. Applications include hydraulic power units, industrial machinery plumbing, and high-pressure fluid lines where tube OD sizing at 3/4 inch is required.

Key Features

• 90-degree elbow geometry for space-efficient 3/4-inch tube routing
• 37-degree flared tube end conforms to SAE flare standards
• Male SAE O-Ring Boss (ORB) threaded end for leak-resistant port connection
• Rated to 6000 psi maximum working pressure
• Wide temperature range: -65 degrees F to 400 degrees F
• Steel construction for durability in high-pressure fluid systems

Compatibility

Designed for use with 3/4-inch OD SAE 37-degree flared tube assemblies connecting to male SAE O-Ring Boss ORB ports, conforming to SAE 070220 standards.

Installation Notes

Installation should be performed by a qualified hydraulic or plumbing technician. Depressurize and drain the fluid system completely before removing or installing any fittings. Inspect the flare and O-Ring sealing surfaces for nicks or contamination before assembly. Consult applicable SAE and system manufacturer specifications for proper assembly procedures.
