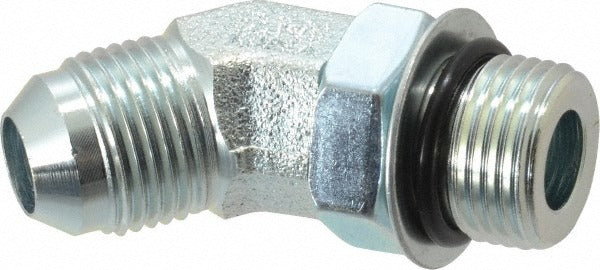

Eaton 2061-8-8S Steel 45 Deg Flared Tube Elbow 1/2 in

Product Description

The EATON 2061-8-8S is a steel 45-degree flared tube elbow with a straight thread connection, designed for use in high-pressure hydraulic and fluid power systems. It connects a 37-degree flared tube end to a male SAE O-ring boss (ORB) port, providing a leak-resistant seal under demanding conditions. The fitting handles working pressures up to 6000 psi and operates reliably across a wide temperature range of -65 to 400 degrees F. With an overall length of 2.28 inches and a tube OD of 1/2 inch, it is a compact, single-piece adapter used by hydraulic technicians, OEM assemblers, and field service professionals.

This elbow is suited for industrial hydraulic lines, mobile equipment, and fluid power plumbing where a 45-degree directional change is needed between a flared tube and an ORB port. It is commonly installed in tight routing situations on pumps, valves, cylinders, and manifolds. The 37-degree flare angle conforms to SAE standards, making it compatible with standard JIC-style flared tube assemblies and SAE O-ring boss ports found across a wide range of industrial and mobile hydraulic equipment.

Key Features

• 45-degree elbow geometry for directional tube routing in confined spaces
• 37-degree flared tube end to male SAE O-ring boss connection
• Rated to 6000 psi maximum working pressure
• Temperature range of -65 to 400 degrees F for broad application coverage
• Conforms to SAE 070320 standard
• Steel construction for strength and durability in high-pressure service

Compatibility

Designed for use with 1/2 inch OD 37-degree flared tubes mating to male SAE O-ring boss ports conforming to SAE 070320. Suitable for standard hydraulic and fluid power assemblies using ORB port connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and drain the hydraulic system completely before removing or installing any fitting. Inspect the O-ring for damage before assembly and replace if necessary; a missing or damaged O-ring will result in leakage under pressure. Torque the fitting to the equipment manufacturer's recommended specification for the port size and material.
