Description

Product Description

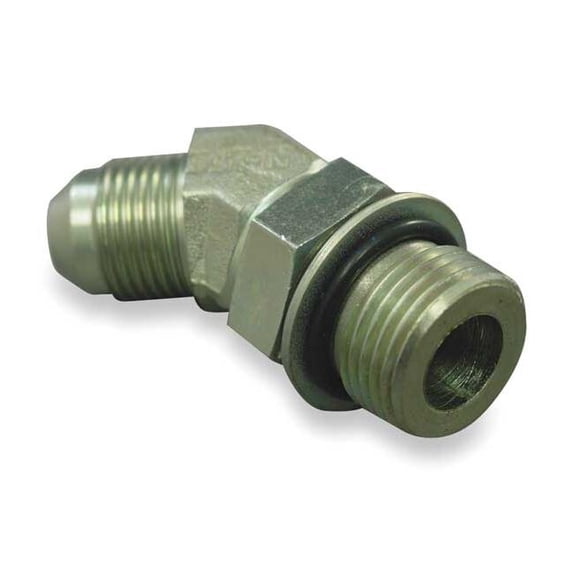

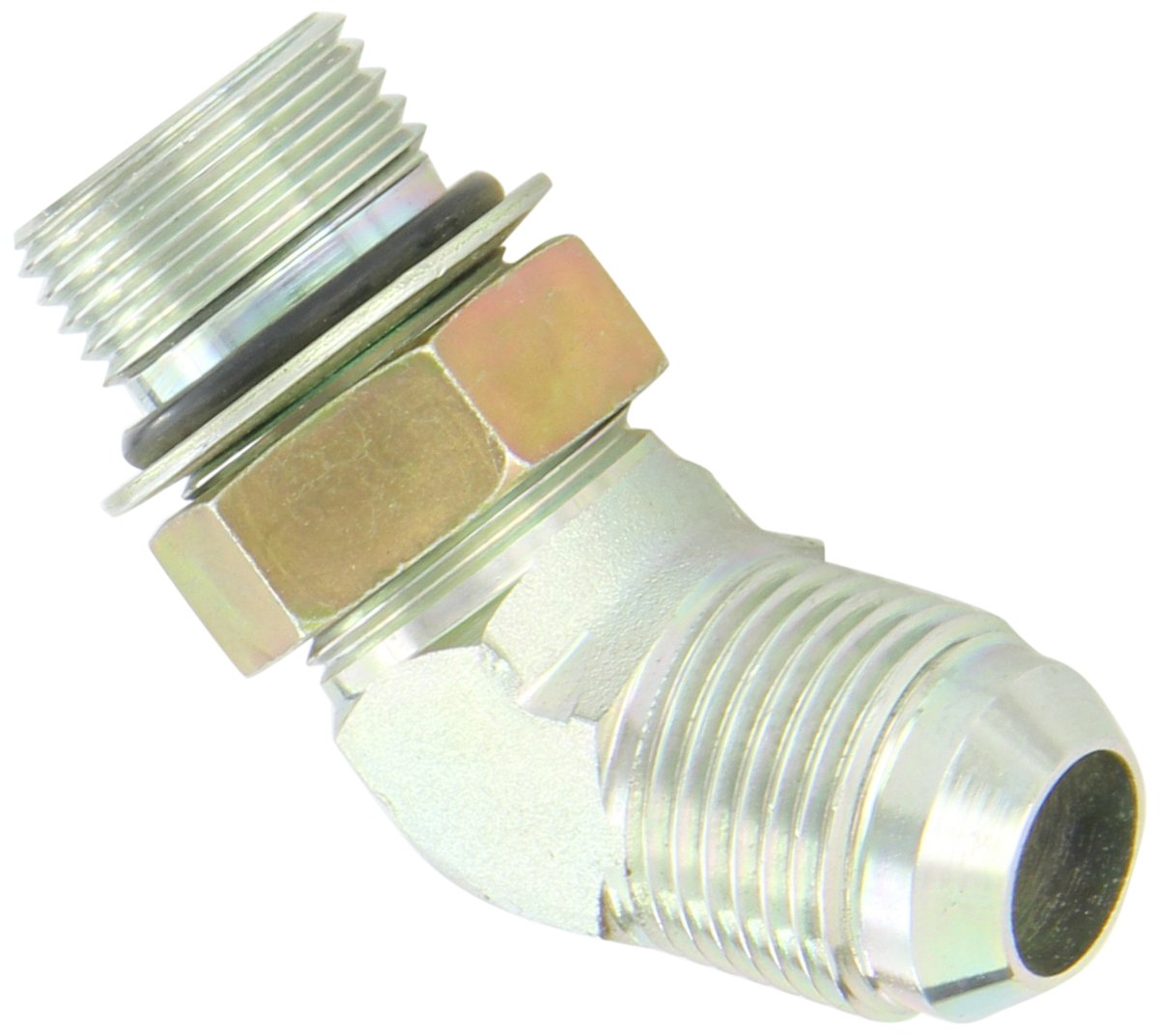

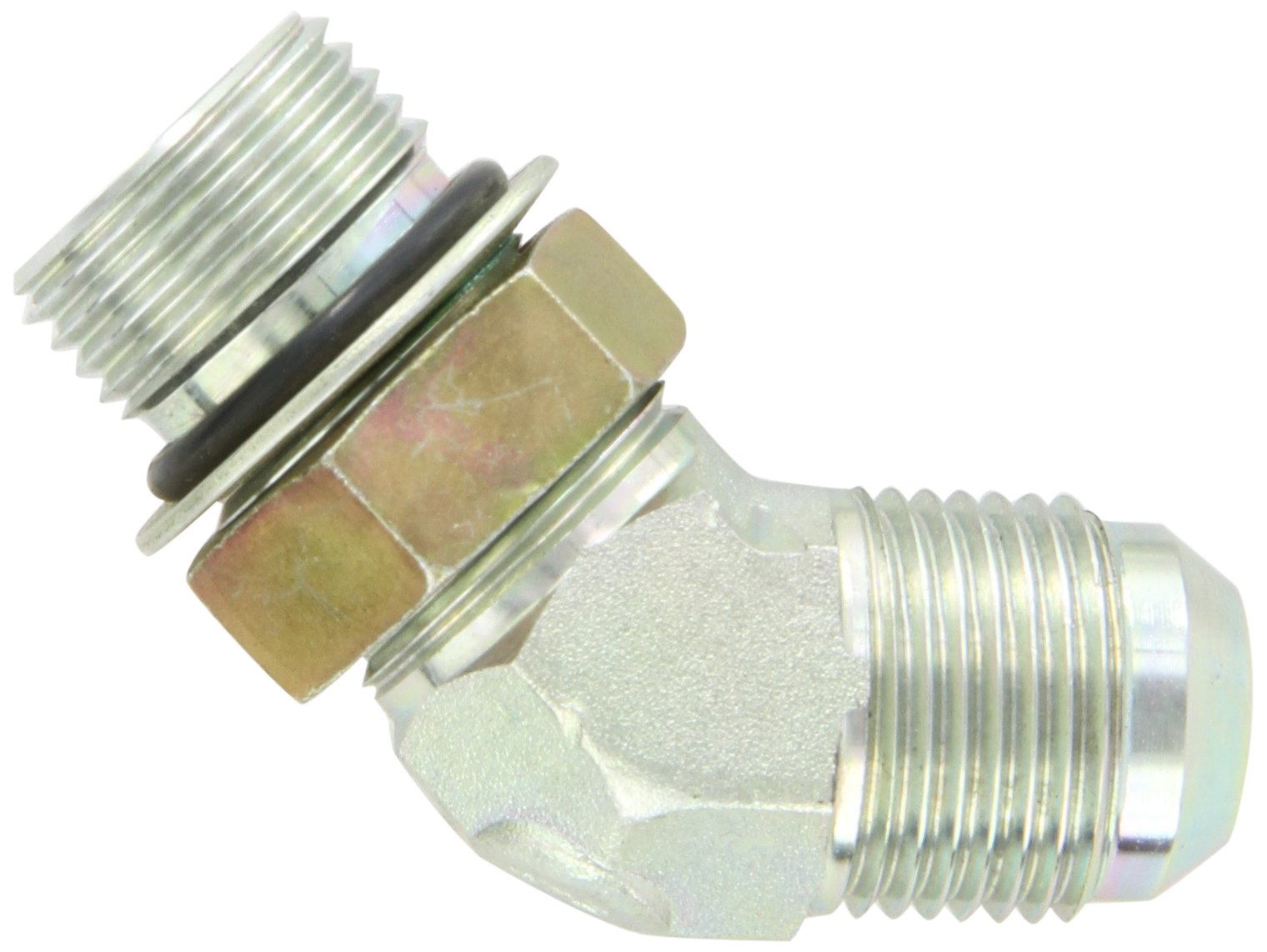

The Eaton Aeroquip 2061-10-10S is a steel flared tube fitting designed for connecting, branching, and changing the direction of tubing in hydraulic and pneumatic systems. This 45-degree elbow features a 5/8" Male JIC to 5/8" O-Ring Boss Male connection. Constructed from steel, it offers weldability and greater resistance to rust. It is compliant with military standard MIL-F-18866 and SAE J514.

  • Joint Industry Council (JIC) male 45-degree elbow for connecting a tube to an O-ring boss female at a 45-degree angle
  • Male JIC threads on one end and male O-ring boss threads on the other end for connecting two different threaded ends
  • Steel for weldability and greater resistance to rust than iron

Product Highlights

This steel flared tube fitting is ideal for use in hydraulic and pneumatic systems, offering a secure and reliable connection.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: 2061-10-10S
Technical Specifications
Fitting Angle
45 Degree
Material
Steel
Connection Type
5/8" Male JIC x 5/8" O-Ring Boss Male
Compliance
Military standard MIL-F-18866 compliant, Society of Automotive Engineers standard SAE J514 compliant for 37-degree JIC flare type tubing
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
End Size 1
0.88
End Size 2
0.88
End Type 1
SAE ORB
End Type 2
SAE 37
Thread 1
7/8-14
Thread 2
7/8-14
Tube O.D.
0.63
Brand
Eaton
Model
2061-10-10S
Standards
SAE/JIC 37 Degrees
