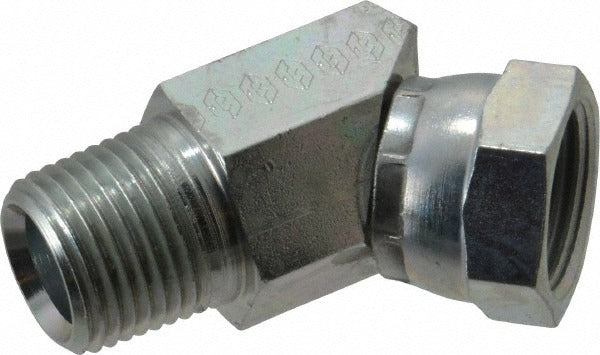

Eaton 2049-8-8S 45 Degree Elbow Adapter 1/2-14 Steel

Product Description

The EATON 2049-8-8S is a 45-degree elbow adapter fitting designed for industrial pipe and hydraulic systems that require a directional change in fluid routing. It features a 1/2-14 female NPSM thread on one end and a 1/2-14 male NPT thread on the other, allowing connection between FNPSM and MNPT ports. Constructed from steel, this adapter is rated for a maximum working pressure of 3,500 psi and handles temperatures from -65 degrees F to 400 degrees F. It is used in high-pressure fluid power and industrial plumbing applications where space constraints or routing requirements call for a 45-degree offset at the connection point.

This fitting is suited for industrial hydraulic lines, pneumatic systems, and high-pressure fluid transfer installations. The FNPSM x MNPT configuration makes it a practical adapter when connecting components with differing thread standards in tight or angled routing scenarios. Typical installers include hydraulic system technicians, industrial maintenance mechanics, and plumbing professionals working in commercial or industrial environments.

Key Features

• 45-degree elbow geometry for angled routing in confined spaces
• 1/2-14 FNPSM inlet to 1/2-14 MNPT outlet thread configuration
• Maximum working pressure of 3,500 psi for demanding hydraulic applications
• Operating temperature range of -65 degrees F to 400 degrees F
• Steel construction for durability in high-pressure environments
• Meets SAE 140330 standards

Compatibility

Designed as an OEM-style replacement or direct-install fitting for industrial hydraulic and high-pressure pipe systems using 1/2-14 FNPSM female and 1/2-14 MNPT male threaded connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber familiar with high-pressure fluid systems. Depressurize and isolate the system completely before removing or installing any fittings. Apply appropriate thread sealant compatible with the system fluid and pressure rating. Avoid over-tightening, which can damage threads and compromise the pressure seal.
