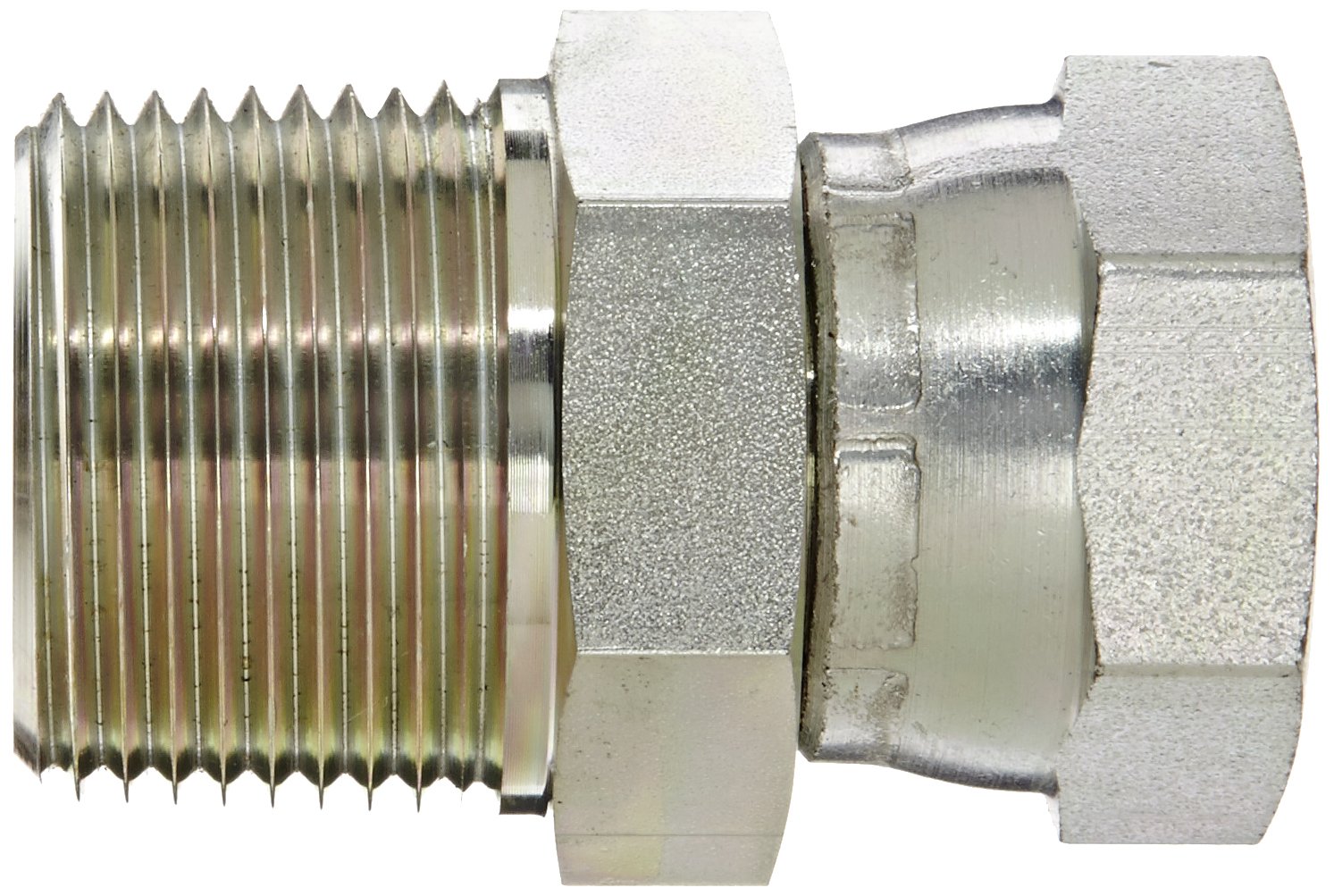

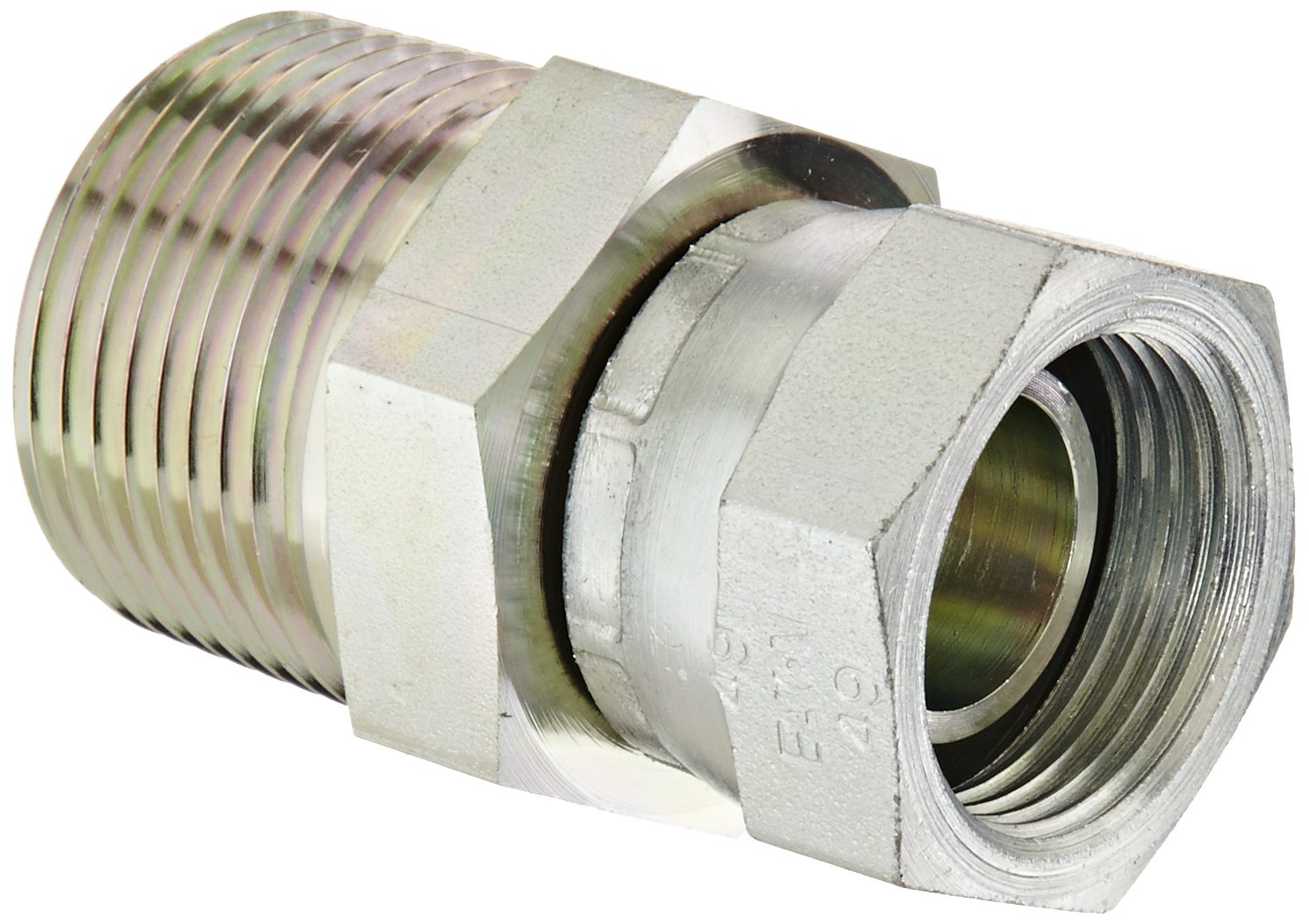

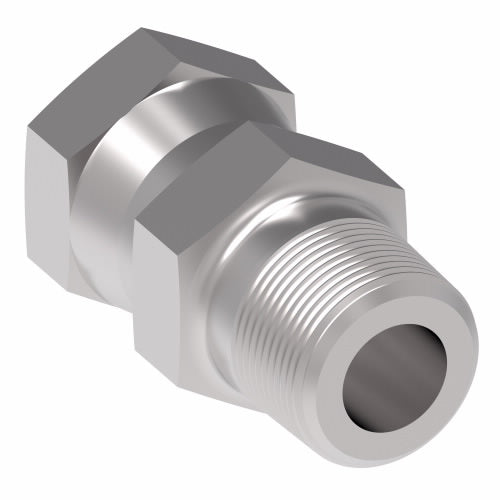

Eaton 2045-12-16S Aeroquip Steel Pipe Fitting Adapter 3/4 inches NPSM Female x 1 inches NPT Male

Product Description

The Eaton 2045-12-16S Aeroquip steel pipe fitting is an adapter used for connecting, terminating, controlling flow, and changing the direction of piping. It features a 3/4" NPSM female end and a 1" NPT male end. This fitting is suitable for light to medium pressure applications. Eaton manufactures electrical, hydraulic, and mechanical power equipment.

• National Pipe Straight Mechanical (NPSM) female adapter for connecting a pipe to an National Pipe Thread (NPT) female
• Female NPSM threads on one end and male NPT threads on the other end for connecting two threaded pipes
• Steel for weldability and greater resistance to rust than iron

Product Highlights

This steel adapter is SAE-compliant for functional requirements and ideal for light to medium pressure applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 2045-12-16S
• Country of Origin: CN

Technical Specifications

• Fitting Type: Adapter
• End 1: 3/4" NPSM Female
• End 2: 1" NPT Male
• Material: Steel
• Application: Light to medium pressure applications
• SAE Compliant: SAE standards J512, J513, J514, J1926 and J1453
• End Size 1: 0.75
• End Size 2: 1 IN
• End Type 1: NPSM
• End Type 2: NPTF
• Minimum Working Temperature: -40
• Supplier Part Number: 2045-12-16S
• Thread 1: 3/4-14
• Thread 2: 1-11-1/2
• Thread Sealant: No
• MPN: 2045-12-16S
• Adapter Type: Straight Adapter
• End 1 Style: Female Pipe Swivel
• Both Ends Gender Type: Female to Male
• Both Ends Style/Type: NPSM to NPTF
• End 1 Size Type: 3/4 NPSM
• End 2 Size Type: 1 NPTF
• Description Keyword: 3/4 in Female Pipe Swivel x 1 in Male Pipe Rigid
• Angle shape: Straight
• End gender 1: Female
• End gender 2: Male
• End size 1: 3/4 IN
• End type 1: NPSM
• Product material: Carbon steel
• Product trade name: 2045 Series
• Thread size 1: 3/4-14
• Thread size 2: 1-11.5
• Tube od 1: 0.75 inch
• Tube od 2: 1 inch
• Hex size 1: 1.375 inch
• Hex Size 2: 1.25 inch
• Finish plating: DURA-KOTE
• Item type: NPSM Female / NPTF Male Straight Adapter
