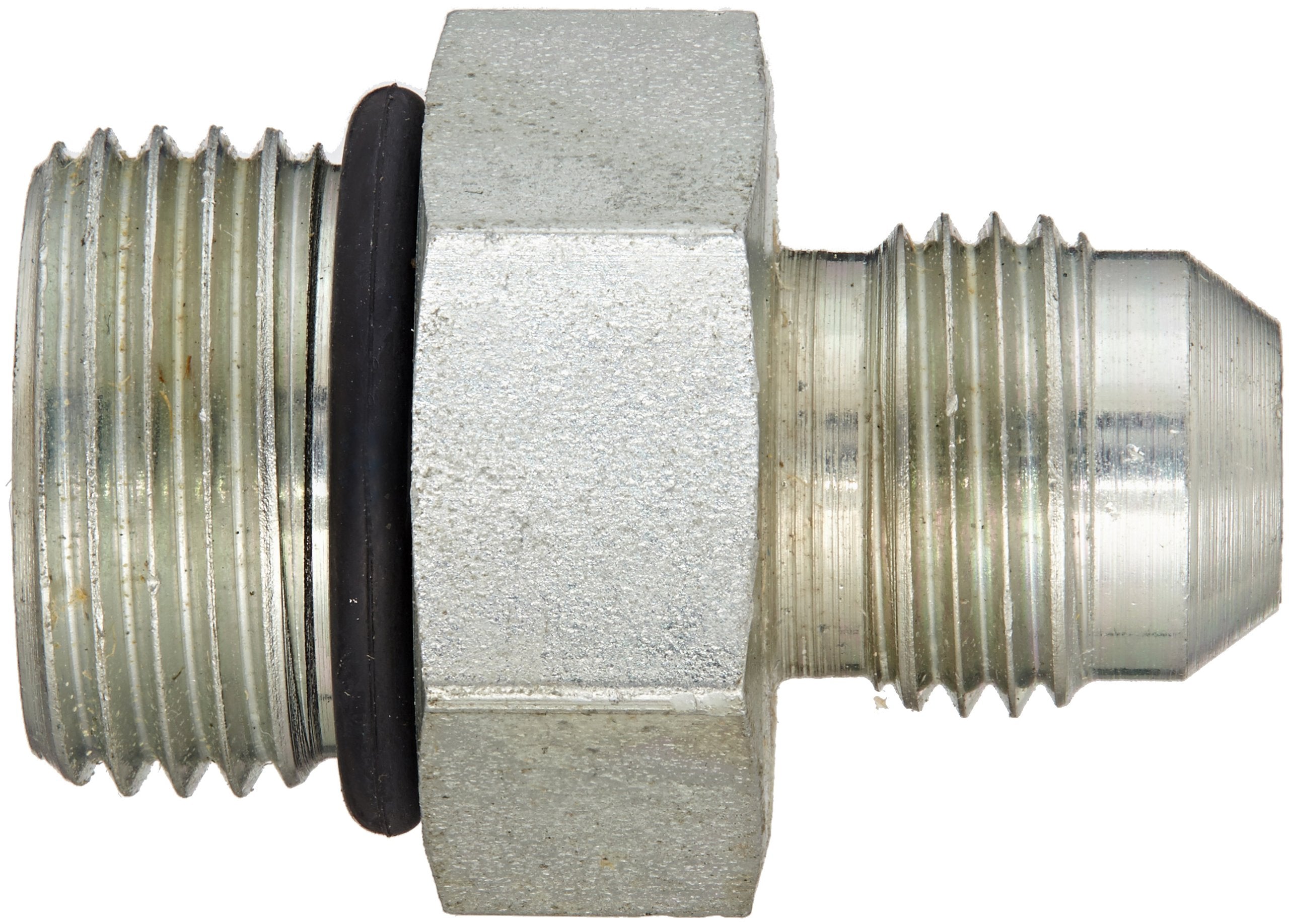

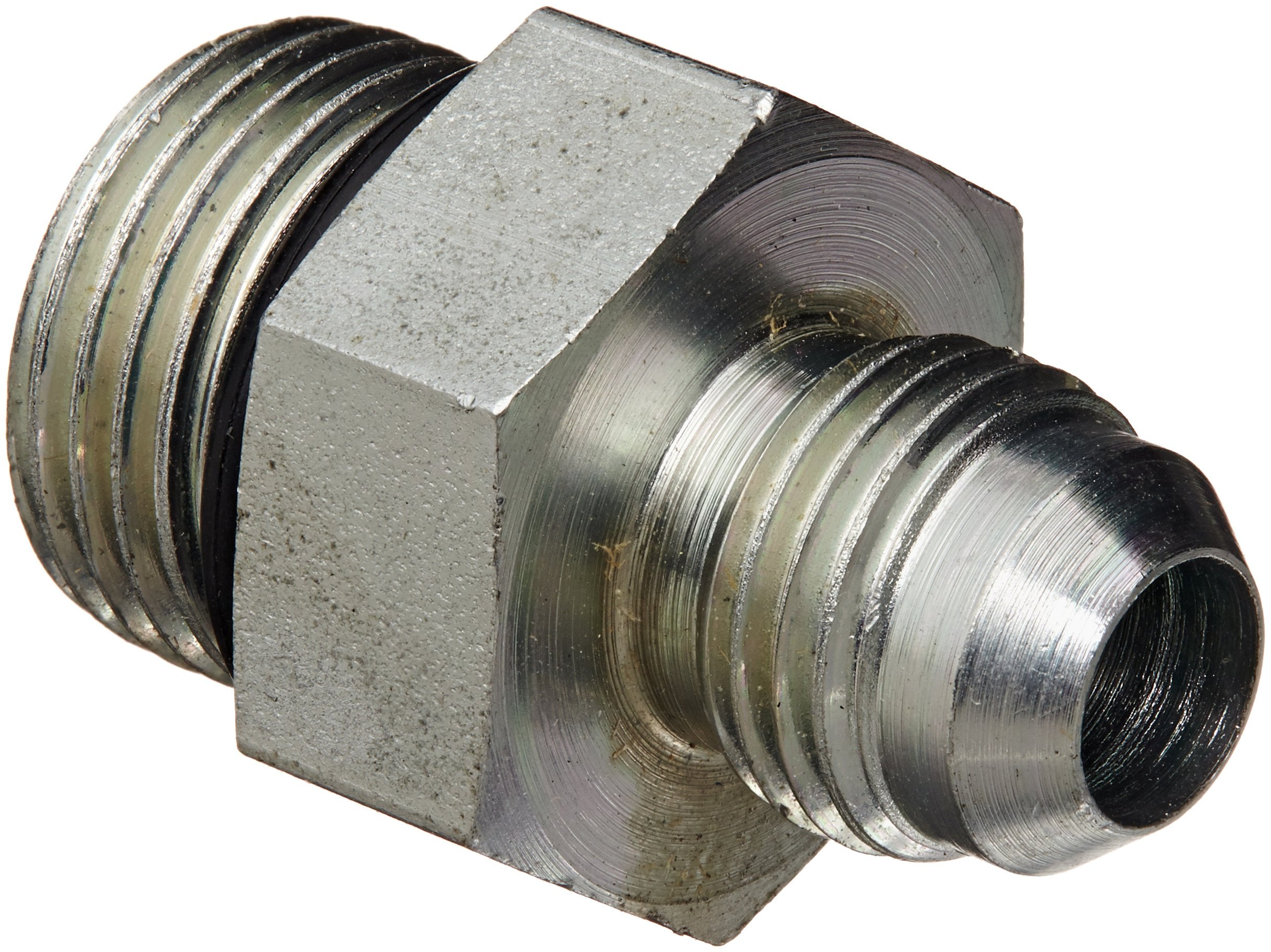

Eaton 202702-8-6S Aeroquip Steel Flared Tube Fitting Adapter 3/8 inches Male JIC x 1/2 inches O-Ring Boss Male

Product Description

The Eaton Aeroquip 202702-8-6S steel flared tube fitting is an adapter for connecting, branching, or changing the direction of tubing in hydraulic and pneumatic systems. It features a 3/8" Male JIC fitting end A and a 1/2" O-Ring Boss Male fitting end B. This adapter is suitable for connecting a tube to an O-ring boss female.

• Joint Industry Council (JIC) male adapter for connecting a tube to an O-ring boss female
• Male Joint Industry Council (JIC) threads on one end and male O-ring boss threads on the other end for connecting tubes with different ends
• Steel for weldability and greater resistance to rust than iron

Product Highlights

This steel adapter is ideal for hydraulic, instrumentation, and chemical processing systems. It meets military standard MIL-F-18866 and SAE J514.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 202702-8-6S
• Country of Origin: CN

Technical Specifications

• Fitting End A: 3/8" Male JIC
• Fitting End B: 1/2" O-Ring Boss Male
• Material: Steel
• Standards Met: Military standard MIL-F-18866 compliant, Society of Automotive Engineers standard SAE J514 compliant for 37-degree JIC flare type tubing
• Application: connecting a tube to an O-ring boss female
• Brand: Aeroquip
• Supplier Part Number: 202702-8-6S
• Thread 1: 3/4-16
• Thread 2: 9/16-18
• Thread Sealant: No
• Tube O.D.: 0.38
• Features: Hydraulic Hose Adapter, For Hose Type Hydraulic, Fitting Shape Straight, Rigid, 7, 000 psi, Includes O-Ring Yes, Crimpable No, Hose Fitting A Gender Male, Hose Fitting B Gender Male, Hose Fitting A Size 1/2 in, Hose Fitting B Size 3/8 in, Hose Fitting A Connection Type ORB, Hose Fitting B Connection Type JIC, Overall Length 1.38 in, Fitting Material Carbon Steel x Carbon Steel, 12L14, 12L15, SAE/JIC 37 Degrees
