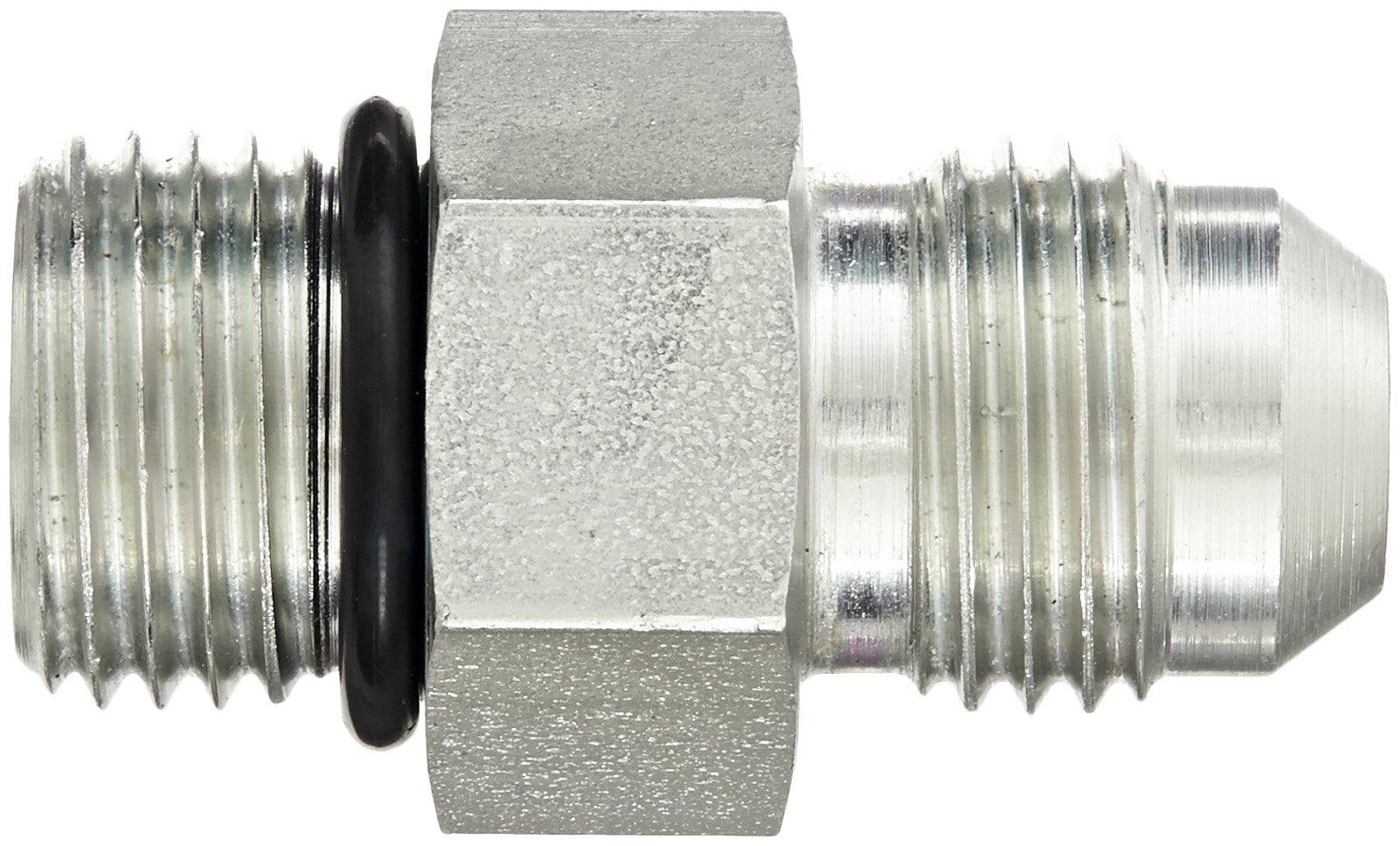

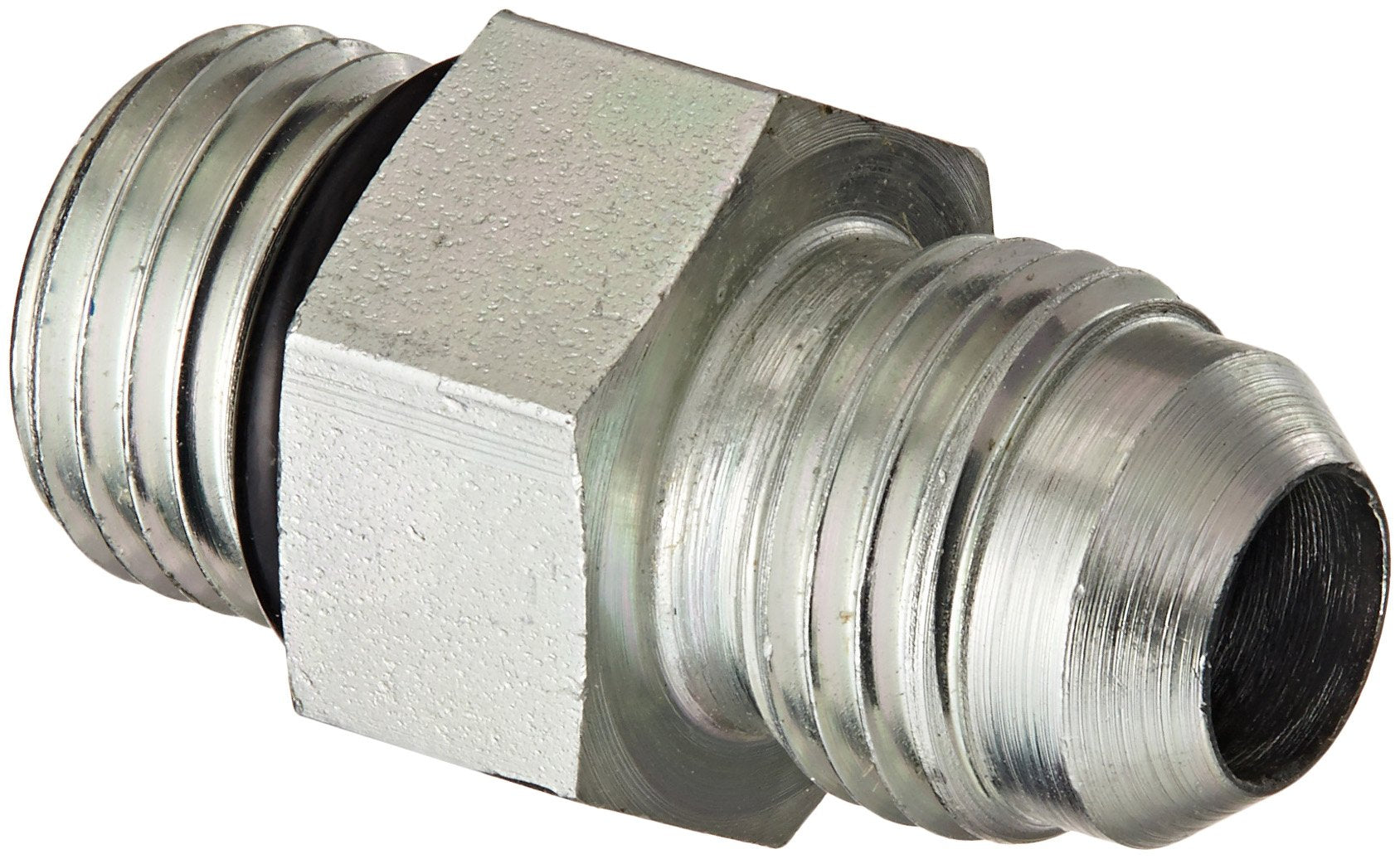

Eaton 202702-6-6S Aeroquip Steel Flared Tube Fitting 3/8 inches Male JIC x 3/8 inches O-Ring Boss Male

Product Description

The Eaton 202702-6-6S Aeroquip steel flared tube fitting is designed for connecting, branching, and changing the direction of tubing in hydraulic and pneumatic systems. It features male Joint Industry Council (JIC) threads on one end and male O-ring boss threads on the other end. This adapter is compliant with military standard MIL-F-18866 and Society of Automotive Engineers standard SAE J514.

• Connects a tube to an O-ring boss female
• Steel construction provides weldability and rust resistance
• Buna-nitrile O-ring seal compatible with petroleum and hydrocarbons

Product Highlights

This steel adapter connects tubes with different ends in hydraulic and pneumatic systems, offering durability and fluid compatibility.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 202702-6-6S
• Country of Origin: US

Technical Specifications

• Fitting End A: 3/8" Male JIC
• Fitting End B: 3/8" O-Ring Boss Male
• Material: Steel
• Standards Met: Military standard MIL-F-18866 compliant, Society of Automotive Engineers standard SAE J514 compliant for 37-degree JIC flare type tubing
• Product Type: HOSE_PIPE_FITTING
• Application: Other - Hydraulic, instrumentation, and chemical processing systems
• Brand: Aeroquip
• Fitting Type: Straight Adapter
• Series: 202702
• Connection Size 1: 3/8 in
• Connection Size 2: 3/8 in
• Gender 1: Male
• Gender 2: Male
• Connection 1: 3/8 in ORB
• Shape: Straight
• Connection 2: 3/8 in JIC
• Hex Size: 0.688 in
• Pressure Rating: 6000 psi
• Temperature Rating: -40 to 250 deg F
• Connection Type 1: O-Ring Boss
• Connection Type 2: JIC
• Finish: Dura-Kote
• Dimension Standards: SAE 070120, MS 51525
• Minimum Working Temperature: -40
• Thread 1: 9/16-18
• Thread 2: 9/16-18
• Thread Sealant: No
• Tube O.D.: 0.38
