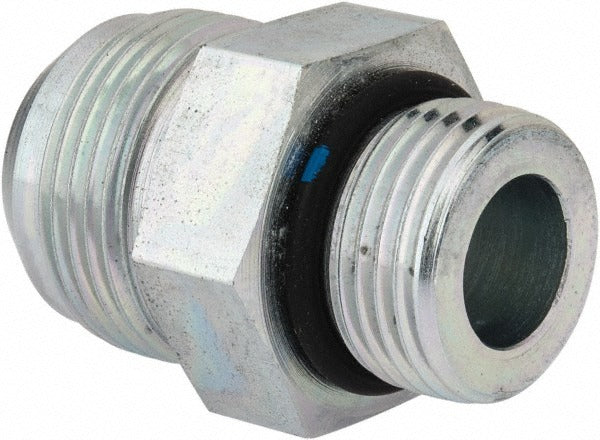

Eaton 202702-12-16S Flared Tube Connector 1 in Od Orb

Product Description

The EATON 202702-12-16S is a steel flared tube straight thread connector designed for high-pressure hydraulic and fluid system plumbing. It features a 37-degree flare on the tube end and a male SAE O-Ring Boss (ORB) thread on the opposite end, creating a leak-resistant connection between flared tubing and ORB-ported components. With a maximum working pressure of 6000 psi and a rated temperature range of -40 to 250 degrees F, this fitting is built for demanding industrial and mobile hydraulic applications. The 1 inch tube OD and 3/4 ORB thread sizing make it a common connector in medium to large hydraulic circuits. Installation is typically performed by hydraulic system technicians or industrial plumbers.

This connector is used in hydraulic power units, mobile equipment, industrial machinery, and fluid transfer systems where flared tube lines must terminate at an ORB-ported valve, manifold, pump, or cylinder. The 37-degree SAE flare conforms to SAE 070120 standards, ensuring compatibility with standard SAE flared tube assemblies. It is suited for both OEM assembly and field repair work where a reliable, high-pressure straight connection is required.

Key Features

• 37-degree flare end mates with standard SAE flared tubing at 1 inch tube OD
• Male SAE O-Ring Boss (ORB) thread provides a positive, leak-resistant seal at the port end
• Rated to 6000 psi maximum working pressure for high-demand hydraulic circuits
• Wide temperature range of -40 to 250 degrees F suits most hydraulic fluid environments
• Steel construction for durability in industrial and mobile equipment applications
• Conforms to SAE 070120 standards

Compatibility

Designed for use in hydraulic fluid systems requiring a flared tube to male SAE O-Ring Boss straight connection, conforming to SAE 070120 standards with a 1 inch tube OD and 3/4 ORB thread.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial plumber. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the flare and O-ring seating surfaces for damage before assembly, and ensure the O-ring is properly seated and lubricated prior to torquing. Follow applicable SAE and equipment manufacturer guidelines for fitting assembly in hydraulic systems.
