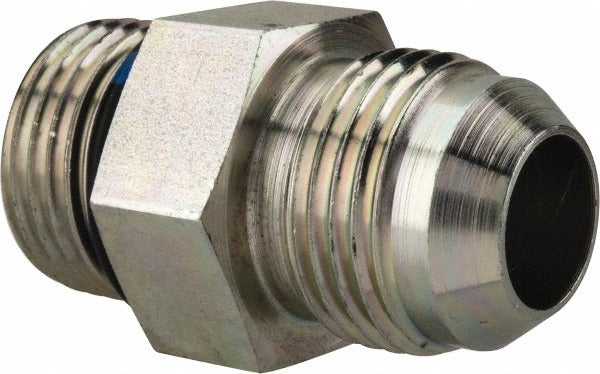

Eaton 202702-10-10S Flared Tube Connector 5/8 in

Product Description

The EATON 202702-10-10S is a steel straight thread connector designed for flared tube hydraulic and fluid system applications. It transitions a 37-degree flared tube end to a male SAE O-ring (ORB) port, creating a reliable, leak-resistant seal in high-pressure lines. The fitting is rated to 9000 psi maximum working pressure and handles operating temperatures from -40 degrees F to 250 degrees F. With an outside diameter of 5/8 inch and an overall length of 1.7 inches, it is a compact inline connector suited for tight routing in hydraulic assemblies. Licensed plumbers, hydraulic technicians, and industrial maintenance mechanics install this type of fitting in fluid power and lubrication systems.

This connector fits hydraulic tubing with a 5/8 inch outside diameter and mates to male SAE O-ring boss ports. It is used in residential and commercial fluid power systems, mobile hydraulic equipment, and industrial machinery where flared-tube-to-ORB transitions are required. The 37-degree flare angle meets SAE standard 070120, making it appropriate for OEM and aftermarket repair work on SAE-compliant hydraulic circuits. Single-piece packaging supports one-off replacement and service calls.

Key Features

• 37-degree flared tube end to male SAE O-ring boss connection for a secure, leak-resistant seal
• Rated to 9000 psi maximum working pressure for demanding hydraulic applications
• Operating temperature range of -40 degrees F to 250 degrees F
• Steel construction for durability in high-pressure fluid power environments
• Meets SAE standard 070120 for consistent flare geometry and thread compatibility
• Compact 1.7 inch overall length suits tight installation spaces

Compatibility

Designed as an OEM-style replacement straight thread flared tube connector for SAE-compliant hydraulic and fluid power systems using 5/8 inch OD tubing with 37-degree flare ends and male SAE O-ring boss ports per SAE 070120.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed plumber familiar with SAE flared fitting procedures. Depressurize and isolate the hydraulic circuit completely before removing or installing any fittings. Inspect the flare seat and O-ring mating surface for damage before assembly, and use appropriate torque wrenches rated for hydraulic fittings. Do not overtighten; follow the fitting manufacturer and system OEM guidelines for thread engagement and seating.
