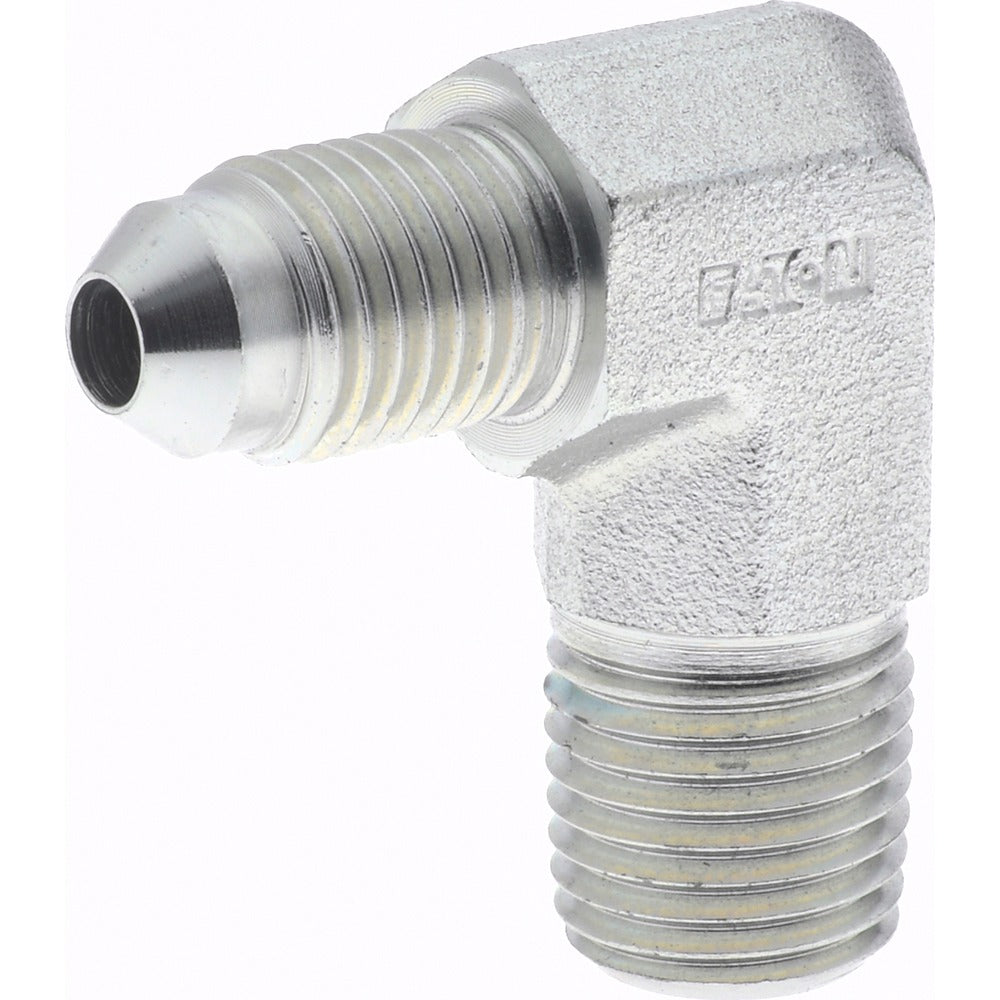

Eaton 2024-4-4S Steel Male Elbow 1/4 in Od 37 Flare

Product Description

The EATON 2024-4-4S is a 90-degree male elbow fitting designed for flared tube connections in hydraulic and fluid transfer systems. It features a Flare x MNPT end configuration, connecting a 1/4-inch OD flared tube on one end to a 1/4-inch male NPT thread on the other. The fitting is constructed from steel and rated for a maximum working pressure of 9500 psi, making it suitable for demanding high-pressure applications. With a temperature range of -65 to 400 degrees F, it performs reliably across a wide range of operating conditions. This fitting meets SAE 070202 standards and is installed by licensed plumbers, hydraulic system technicians, and industrial pipefitters.

This elbow fitting is used in hydraulic lines, pneumatic systems, fuel lines, and other fluid transfer assemblies where a 90-degree directional change is required between a flared tube and an NPT-threaded port. It is suited for both mobile and stationary equipment installations in industrial, commercial, and heavy-duty service environments. The 37-degree flare angle is a standard configuration widely used in SAE-spec hydraulic and refrigeration-adjacent plumbing applications.

Key Features

• 90-degree elbow configuration for tight directional routing in confined spaces
• 37-degree flare angle per SAE 070202 standard
• Rated to 9500 psi maximum working pressure
• Operating temperature range of -65 to 400 degrees F
• Flare x MNPT end connections for tube-to-threaded-port transitions
• Steel construction for durability in high-pressure fluid systems

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid transfer systems requiring a 1/4-inch OD flared tube to 1/4-inch male NPT 90-degree elbow connection conforming to SAE 070202.

Installation Notes

Installation should be performed by a qualified pipefitter, hydraulic technician, or licensed plumber. De-pressurize and isolate the system completely before removing or installing any fittings. Ensure the flare on the tube end is formed correctly to the 37-degree specification before making up the connection, as an improper flare is a common source of leaks. Follow applicable industry codes and equipment manufacturer guidelines for torque and thread sealant use on NPT connections.
