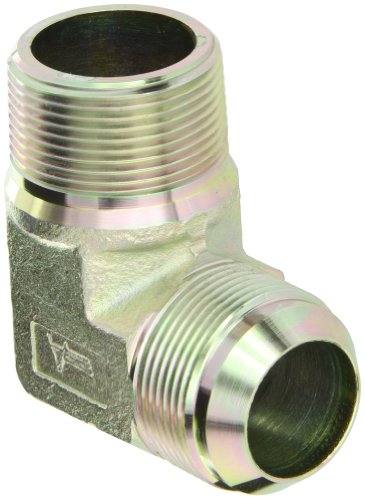

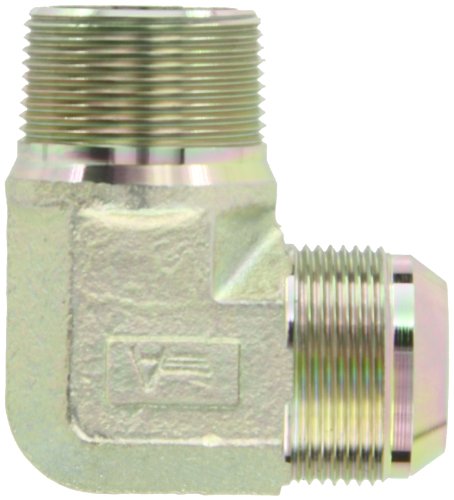

Eaton 2024-20-20S Aeroquip 90 Degree Male Elbow, JIC 37 Degree & NPT End Types

Product Description

The Eaton Aeroquip 2024-20-20S is a 90 Degree Male Elbow with JIC 37 Degree & NPT End Types, constructed from carbon steel. It features a 1-1/4 JIC(m) x 1-1/4 NPT(m) end size and is suitable for use in marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling applications.

• 90 Degree Male Elbow
• JIC 37 Degree & NPT End Types
• Constructed from carbon steel

Product Highlights

This Aeroquip elbow fitting is ideal for connecting hoses and pipes at a 90-degree angle in various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 2024-20-20S

Technical Specifications

• Brand: Aeroquip
• Manufacturer: EATON
• Model / MPN: 2024-20-20S
• Part ID / MPN: 2024-20-20S
• End Types: JIC 37 Degree & NPT
• End Size: 1-1/4 JIC(m) x 1-1/4 NPT(m)
• Tube OD: 1-1/4"
• Male Pipe Size: 1-1/4"
• Material: Carbon Steel
• Product Type: HOSE_PIPE_FITTING
• Number of Items: 1.0
• Application: Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
• Minimum Working Temperature: -65
• Thread 1: 1-1/4-11-1/2
• Thread 2: 1-5/8-12
• Thread Sealant: No
• Tube O.D.: 1.25
• A: 2.38
• B: 2.06
• Drop Dimension: 2.06
• Pack Size: 1.00
• UOM: EA
