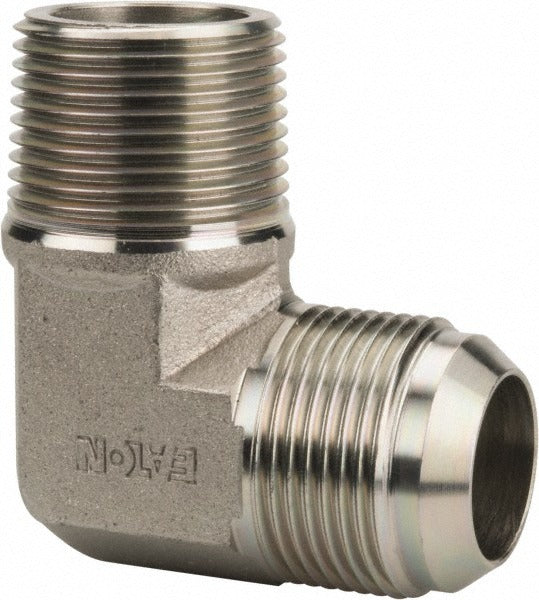

Eaton 2024-16-16S Steel 90 Deg Flared Male Elbow 1 in

Product Description

The EATON 2024-16-16S is a 90-degree flared tube male elbow fitting manufactured from steel for use in high-pressure hydraulic and fluid-transfer systems. It connects a 37-degree flared tube end to a male NPT threaded port, allowing a direction change within a plumbing or hydraulic circuit. The fitting carries a maximum working pressure of 4500 psi and handles a temperature range from -65 degrees F to 400 degrees F, making it suitable for demanding industrial and mobile-equipment applications. Licensed plumbers, pipefitters, and hydraulic technicians are the typical installers of this component.

This elbow is used where a 90-degree change of direction is required in a steel tubing circuit that terminates at an NPT-ported valve, manifold, cylinder, or pump. The Flare x MNPT end configuration allows one end to swage onto a flared tube and the other to thread directly into a female NPT port. Common applications include hydraulic power units, mobile equipment fluid lines, industrial machinery, and high-pressure pneumatic systems that require reliable leak-resistant connections at elevated pressures.

Key Features

• 90-degree male elbow configuration for in-line direction changes in tube assemblies
• 37-degree flare angle conforms to SAE J514 and SAE 070202 standards
• Rated to 4500 psi maximum working pressure for high-pressure service
• Wide temperature range of -65 degrees F to 400 degrees F suits diverse operating environments
• Flare x MNPT end connection integrates flared tubing with NPT-ported equipment
• Steel construction provides strength and durability in hydraulic and fluid-power circuits

Compatibility

Designed as an OEM-style replacement or new-installation fitting for steel flared tube hydraulic and fluid-power systems using 1-inch outside diameter tubing and NPT-ported components conforming to SAE 070202 standards.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or hydraulic technician. Depressurize and isolate the fluid circuit completely before removing or installing any fitting. Use appropriate tube-flaring tools to achieve a proper 37-degree flare seat before assembly, and apply thread sealant to the NPT threads per the system requirements. Refer to applicable SAE and relevant facility or equipment codes for torque guidance and inspection intervals.
