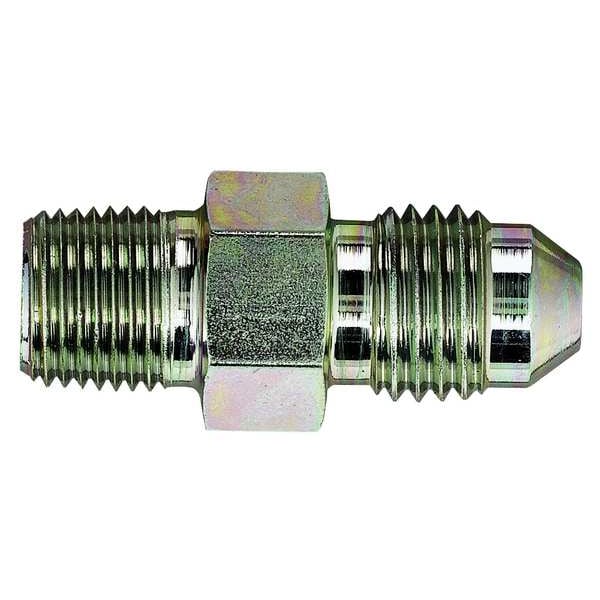

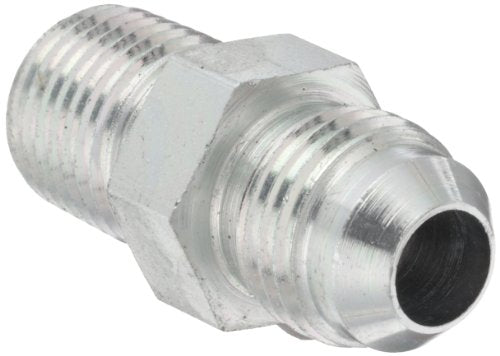

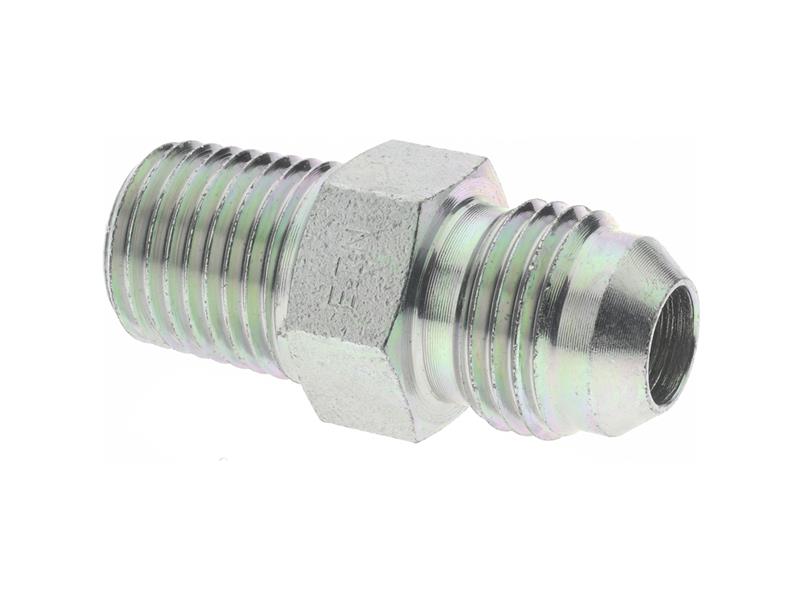

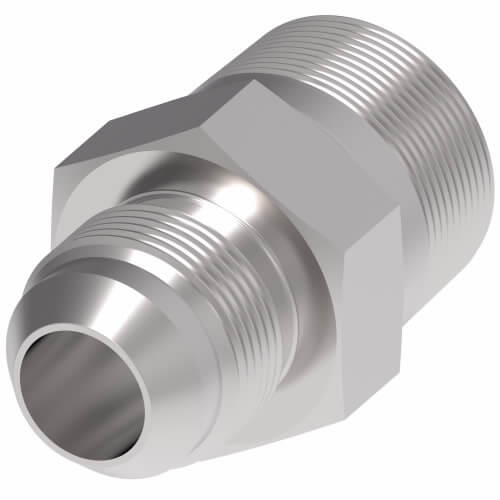

Eaton 2021-4-6S Aeroquip Male Connector 1/4 NPT(m) x 3/8 JIC(m)

Product Description

The Eaton Aeroquip 2021-4-6S male connector features male 37-degree JIC and male pipe threads. Constructed from carbon steel, it is designed with JIC 37 Degree & NPT end types. This rigid hydraulic hose adapter is suitable for marine, military, chemical processing, pulp and paper, and food and beverage applications. It has 1/4 NPT(m) x 3/8 JIC(m) end sizes and a 3/8" tube OD.

• Constructed from carbon steel for durability.
• Features male 37-degree JIC and male pipe threads.
• Suitable for hydraulic applications in various industries.

Product Highlights

The Eaton 2021-4-6S is a carbon steel male connector with JIC and NPT end types, designed for hydraulic hose applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 2021-4-6S
• Country of Origin: US

Technical Specifications

• End Types: JIC 37 Degree & NPT
• Material: Carbon Steel
• End Size: 1/4 NPT(m) x 3/8 JIC(m)
• Tube OD: 3/8"
• Item: Hydraulic Hose Adapter
• Angle: Straight
• Application: Marine/Military, Chemical Processing, Pulp And Paper Industries, Food And Beverage Processing, Off-Shore Drilling
• Compatible Pipe Size: 1/4"
• Crimpable: No
• End Gender 1: Male
• End Gender 2: Male
• End Size 1: 1/4"
• End Size 2: 9/16"
• End Type 1: NPTF
• End Type 2: SAE 37
• Finish: Dura Kote
• Fitting Movement: Rigid
• Fitting Shape: Straight
• For Hose Type: Hydraulic
• Height: 5/8"
• Hex Size 1: 5/8"
• Hose Fitting A Connection Type: NPTF
• Hose Fitting A Gender: Male
• Hose Fitting A Size: 1/4"
• Hose Fitting B Connection Type: Jic
• Hose Fitting B Gender: Male
• Hose Fitting B Size: 3/8"
• Includes O-ring: No
• Inside Dia.: 7/25"
• Item Type: NPTF Male/SAE 37掳 Male Straight Adapter
• Length: 1.43"
• Material Grade: Grade 12L14, Grade 12L15
• Max. Operating Temp.: 250°F
• Max. Working Pressure @ 70 F: 7000 psi
• Min. Operating Temp.: -40°F
• Overall Length: 1.43"
• Thread Sealant: No
• Thread Size: 1/4"-18
• Thread Size 1: 1/4"-18
• Thread Size 2: 9/16"-18
• Tube Od 2: 3/8"
• Width: 5/8"
• Working Pressure: 4000 psi
• standard: SAE/JIC 37°
• Part #: 2021-4-6S
• Category: Hydraulic Fitting
• Fitting Size: 1/4 in x 3/8 in
• Fitting Thread Type 1: Male NPT
• Fitting Thread Type 2: Male JIC
• Max. Working Pressure (PSI): 7000
• Hose Adapter Material: Carbon Steel
• Standards: SAE/JIC 37 Degrees
