Product Description

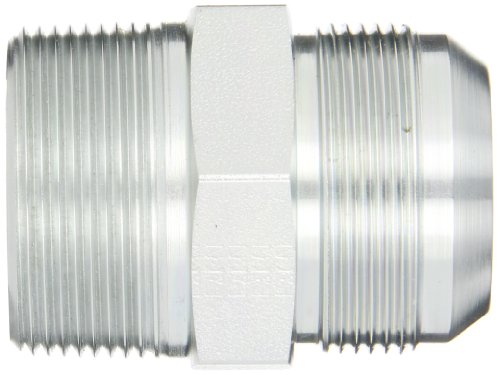

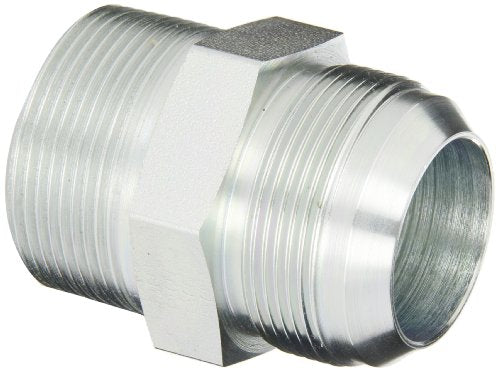

The Eaton Aeroquip 2021-24-24S is a male connector with JIC 37 Degree & NPT end types and is made of carbon steel. It features 1-1/2 JIC(m) x 1-1/2 NPT(m) end sizes and a 1-1/2" tube OD. This straight, rigid fitting is suitable for hydraulic hose applications.
- Made of carbon steel for durability.
- Features JIC 37 Degree & NPT end types.
- Ideal for use with hydraulic hoses.
Product Highlights
The Eaton Aeroquip 2021-24-24S male connector is designed for hydraulic applications, providing a secure and reliable connection.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 2021-24-24S
Technical Specifications
-
Brand: Aeroquip
-
Manufacturer: EATON
-
Model / MPN: 2021-24-24S
-
Part ID / MPN: 2021-24-24S
-
Product Type: HOSE_PIPE_FITTING
-
Product Group: BISS
-
End Types: JIC 37 Degree & NPT
-
Material: Carbon Steel
-
End Size: 1-1/2 JIC(m) x 1-1/2 NPT(m)
-
Tube OD: 1-1/2"
-
A: 2.68
-
Alternate Part Number: MINO-00015F60094
-
Application: Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
-
Pack Size: 1.00
-
UOM: EA
-
End Type 1: NPTF
-
End Type 2: SAE 37
-
Minimum Working Temperature: -40
-
Supplier Part Number: 2021-24-24S
-
Thread 1: 1-1/2-11-1/2
-
Thread 2: 1-7/8-12
-
Thread Sealant: No
-
Tube O.D.: 1.5
-
For Hose Type: Hydraulic
-
Fitting Shape: Straight, Rigid
-
Thread Size: 1-1/2 In. -11-1/2
-
Includes O-Ring: No
-
Crimpable: No
-
Compatible Pipe Size: 1 1/2 in
-
Hose Fitting A Gender: Male
-
Hose Fitting B Gender: Male
-
Hose Fitting A Size: 1 1/2 in
-
Hose Fitting B Size: 1 1/2 in
-
Hose Fitting A Connection Type: NPTF
-
Hose Fitting B Connection Type: NPTF
-
Overall Length: 2.68 in
-
Fitting Material: Carbon Steel x Carbon Steel, 12L14, 12L15, SAE/JIC 37 Degrees
-
psi: 2,000
