Eaton 1PMB800R mcb metering main 800a

Product Description

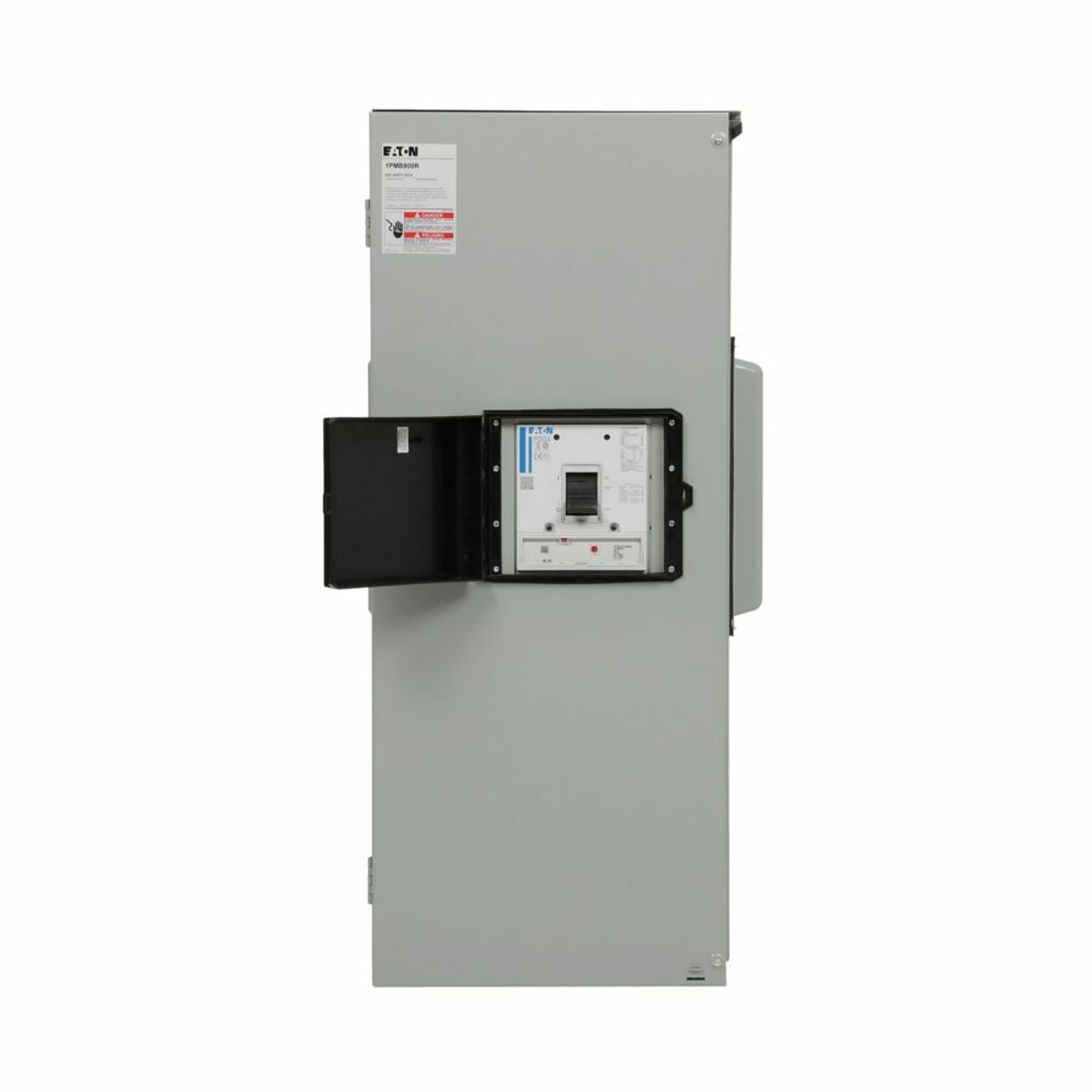

The Eaton 1PMB800R is a main circuit breaker designed for metering applications. It operates at 800 A, 120/240 V, single phase, and three wire configurations. Housed in a NEMA 3R enclosure, this component is suitable for electrical assemblies, panels, and original equipment manufacturers. It functions as part of gangable metering systems, which are used with meter stacks to create custom metering lineups for multi-unit applications.

• NEMA 3R enclosure for environmental protection.
• Single phase, three wire configuration.
• Operates at 120/240 V.

Product Highlights

Eaton 1PMB800R is an 800A main circuit breaker with NEMA 3R enclosure, designed for gangable metering applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1PMB800R
• Country of Origin: United States

Technical Specifications

• Catalog Number: 1PMB800R
• Type: Main circuit breaker
• Brand: Eaton
• Amperage Rating: 800 Amp
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Manufacturer: Cutler-Hammer / Eaton
• Country of Origin: United States
• Phase: 1
• Certifications: UL Listed
• UPC: 786689412760
• Voltage Rating: 120/240 V
• Enclosure Type: NEMA 3R
• Number of Wires: 3
• UNSPSC: 39121102
• Series: PMB
• Mounting Style: Surface
• Color: Gray
• Suitable For: Outdoor
• Operation Method: On/Off
• Current Type: AC
