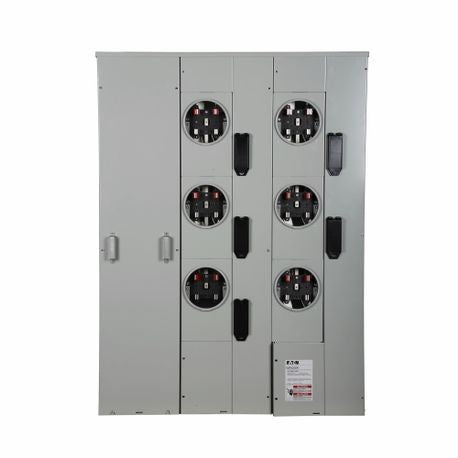

EATON 1MP6206RP Group Metering Meter Pack, 200 A Self-Contained Socket, Underground Feed, 120/240 VAC, 600 A Bus

Product Description

The EATON 1MP6206RP is a group metering meter pack designed for efficient utility management. This unit supports multi-tenant metering, making it suitable for residential and light commercial applications. It is ideal for locations like garden apartments or small condominiums where six or fewer units are metered through one central unit.

• Self-contained design with a main terminal box
• Supports installations for up to six meter sockets
• Includes a provision for a two-pole breaker

Product Highlights

The EATON 1MP6206RP offers a compact solution for meter management. It is robust and efficient, ensuring ease of installation and connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer: EATON

Technical Specifications

• Socket Cover Style: Ring
• Type: Group Metering
• Socket Amps: 200 A
• Dimensions: 7.01 in L x 38.75 in W x 52.41 in H
• Bus Amps: 600 A
• Breaker Type: CCV2-X/CCVH2-X/CVS2-XMM/CV2-XMM/CVH2-XMM
• Number of Meter Sockets: 6
• Phase: 1
• Amperage Rating: 600 A
• Mounting Type: Surface
• Socket Type: Self-Contained
• Feed Type: Underground
• GTIN: 00786685970035
• Enclosure Type: NEMA 1/3R
• Voltage Rating: 120/240 VAC
• Minimum Order Qty: 1
• UNSPSC: 39121102
• UPC: 786685970035
• Order Interval: 1
• Application: Electrical Assemblies, Panels, EOEMs, Residential, Light Commercial, Garden Apartments, Small Condominiums, Townhouses, Indoor and Outdoor Applications
• Standard & Approvals: UL Listed, EUSERC/CECHA Approved
