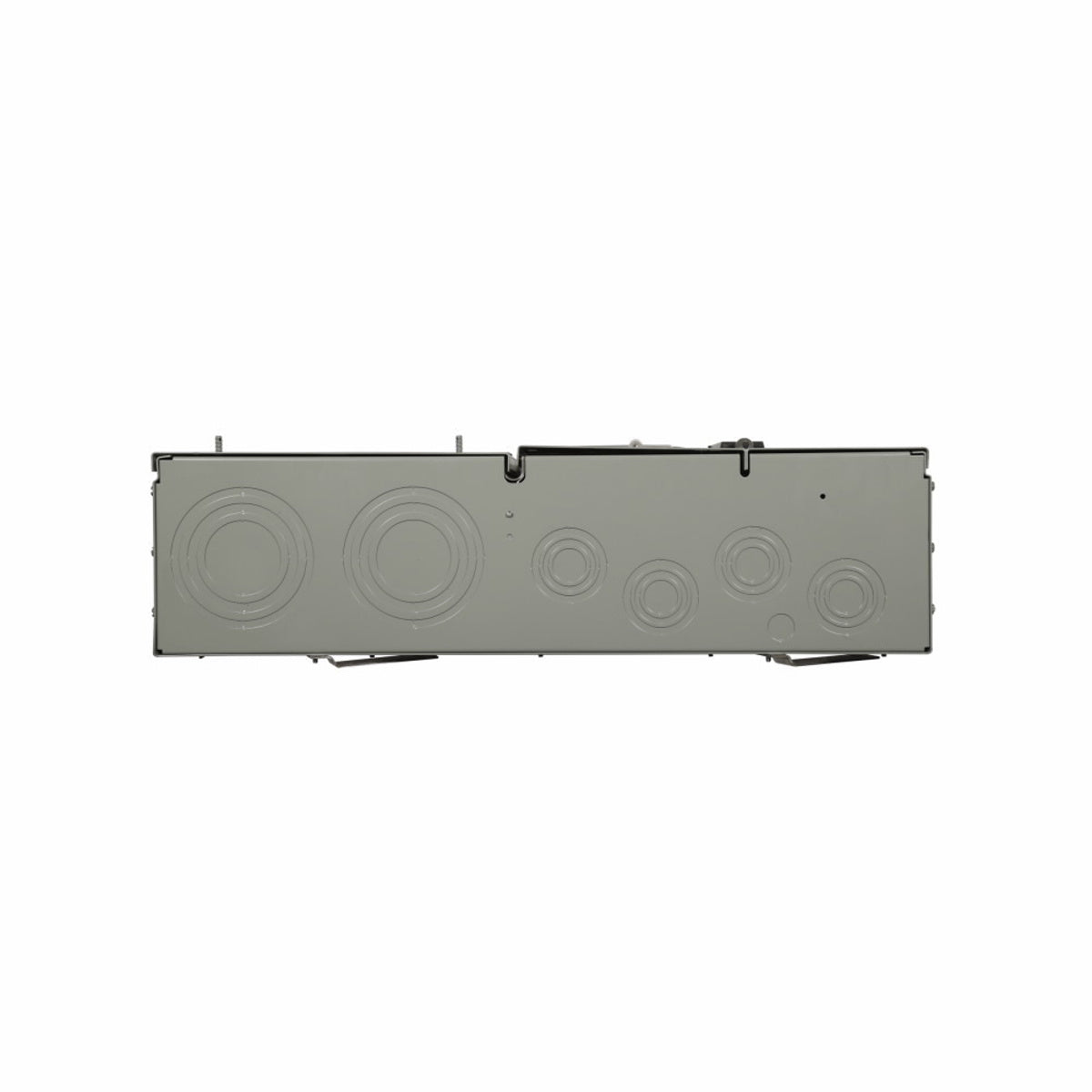

Eaton 1MP4206RRLB Group Metering Meter Pack With Horn Bypass 200 A 4 1 Phase

Product Description

The Eaton Meter Pack with part number 1MP4206RRLB offers a reliable solution for group metering. This unit is designed for various residential and light commercial applications where multiple meters are required. With a capacity of two hundred amps, it supports a maximum of four meter sockets. This unit is compatible with underground feed and operates efficiently at one phase with a voltage rating of 120/240 VAC.

• Multiple sockets for efficient metering
• Supports indoor and outdoor installations
• UL Listed for safety compliance

Product Highlights

This Eaton meter pack is ideal for applications such as garden apartments and small condominiums, allowing for centralized monitoring of energy consumption.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: 1MP4206RRLB

Technical Specifications

• Voltage Rating: 120/240 VAC
• Bus Amps: 600 A
• Socket Amps: 200 A
• Number of Meter Sockets: 4
• Dimensions: 7.01 in L x 25.5 in W x 42.69 in H
• Phase: 1
• Bus Material: Aluminum
• Bypass Type: Horn
