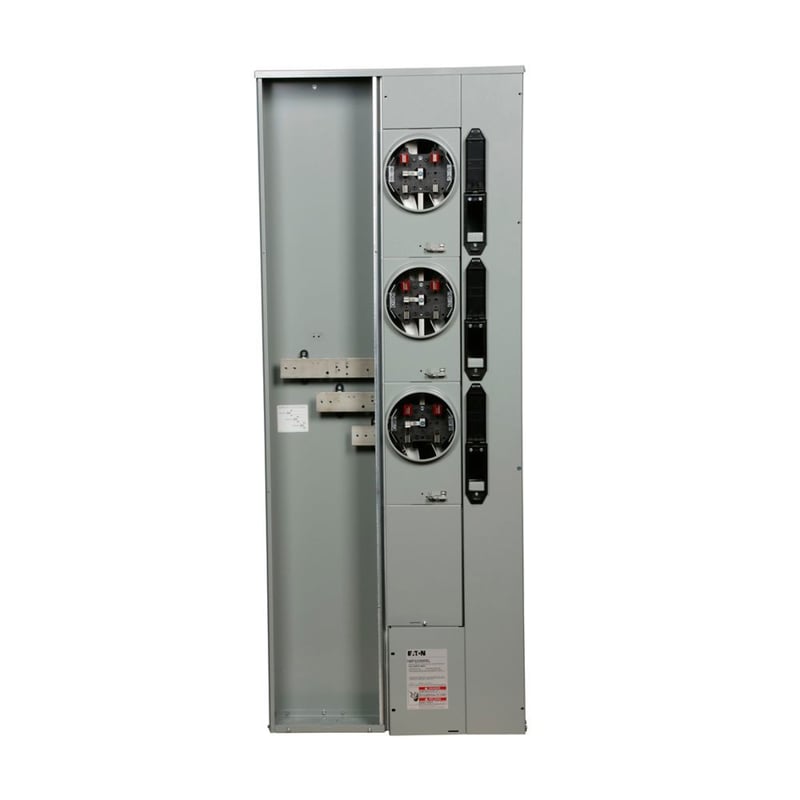

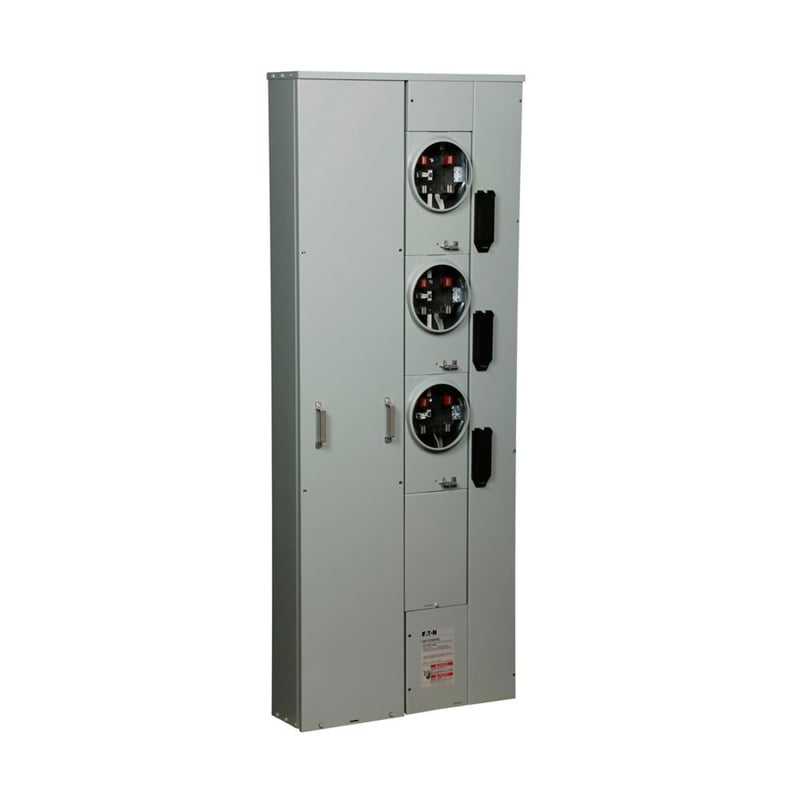

Eaton 1MP3206RRLB 200 Amp, 3 Meter Ringless Meter Pack, Horn Bypass, 600 Amp Bus

Product Description

The Eaton Meter Pack 1MP3206RRLB provides a reliable solution for residential and light commercial metering. This product features a two hundred amp capacity with a three meter ringless design suitable for indoor or outdoor installation. The horn bypass allows for easy access and maintenance, while the six hundred amp bus rating ensures optimal performance.

• Suitable for single-phase applications
• UL listed for safety compliance
• Compatible with various utility requirements in regions like Minnesota and Wisconsin

Product Highlights

This meter pack is ideal for multi-tenant housing, ensuring effective energy distribution with simplified metering.

Product Information

Standard Information

• Brand: Eaton
• Part Number: 1MP3206RRLB

Technical Specifications

• Construction Material: Aluminum
• Application: Electrical assemblies and panels
• Dimensions: 7.56 inches x 11.88 inches x 34.56 inches
• Bus Rating: 600 Amp
• Socket Rating: 200 Amp
• Voltage: 120/240 V
• UNSPSC: 39121102
• Catalog Description: Eaton Meter packs, 200A, Aluminum, 600 Bus Ampere, Horn bypass, Indoor/outdoor, 3, Single-phase, Ringless, 120/240 V.
