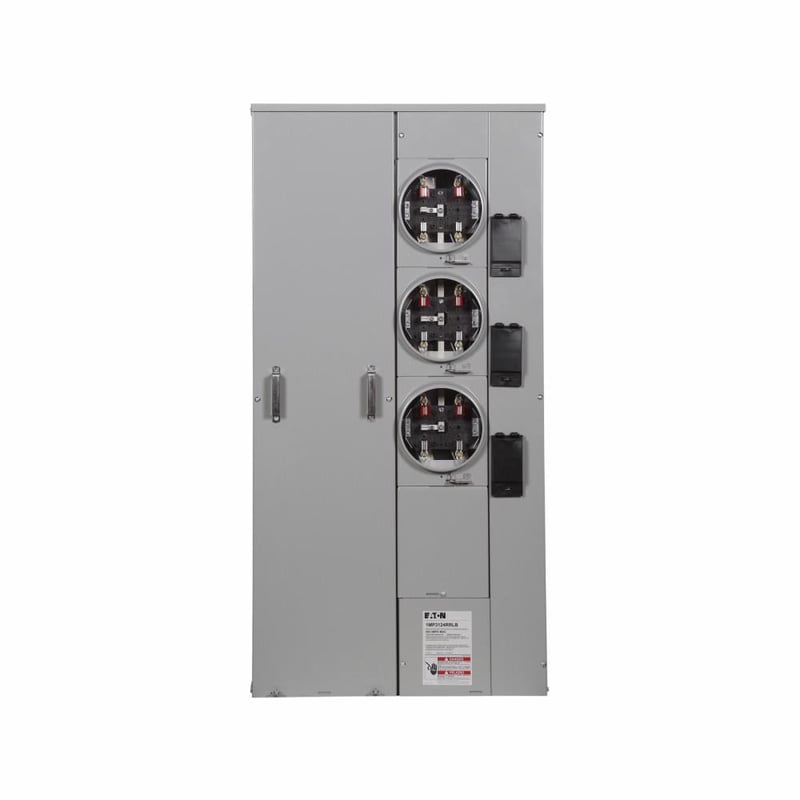

Eaton 1MP3124RRLB Ringless Meter Pack, Horn Bypass, 3 Meter Sockets, 125 Amp Per Position, 400 Amp Bus

Product Description

The Eaton 1MP3124RRLB is a ringless meter pack designed for multi-tenant metering applications. This unit features a 125 amp rating per socket with a total bus rating of 400 amps, supporting single-phase 120/240 V systems. Constructed with an aluminum bus housing, it is suitable for both indoor and outdoor installations.

This meter pack includes a horn bypass configuration and is built as a self-contained unit with a main terminal box, allowing installations with up to six meter socket positions in a single enclosure. It is not gangable with other metering devices, ensuring a dedicated and secure setup.

Designed for utility compliance in select regions, the unit is compatible with applications in MN, WI, IA, and MI, including Alliant and Consumers Energy requirements. It also features a bondable neutral and provision for a 2-pole breaker, supporting flexible installation configurations.

• Self-contained meter pack with main terminal box

• Not gangable with other metering devices

• Horn bypass configuration for service convenience

• Suitable for indoor and outdoor use

• Compatible with select utility requirements

Product Highlights

This meter pack provides a compact and efficient solution for multi-meter installations while supporting high fault current ratings and utility-specific configurations.

Product Information

Standard Information

• Brand: Eaton

• MPN: 1MP3124RRLB

Technical Specifications

• Product Type: Ringless Meter Pack

• Socket Rating: 125 Amps

• Bus Rating: 400 Amps

• Phase: Single-phase

• Voltage: 120/240 V

• Construction Material: Aluminum

• Bus Material: Aluminum

• Number of Sockets: 3

• Bypass Type: Horn Bypass

• Enclosure: Indoor/Outdoor Rated

• Neutral: Bondable

• Breaker Provision: 2-pole breaker provision

• Series Rating: Up to 100 kAIC
