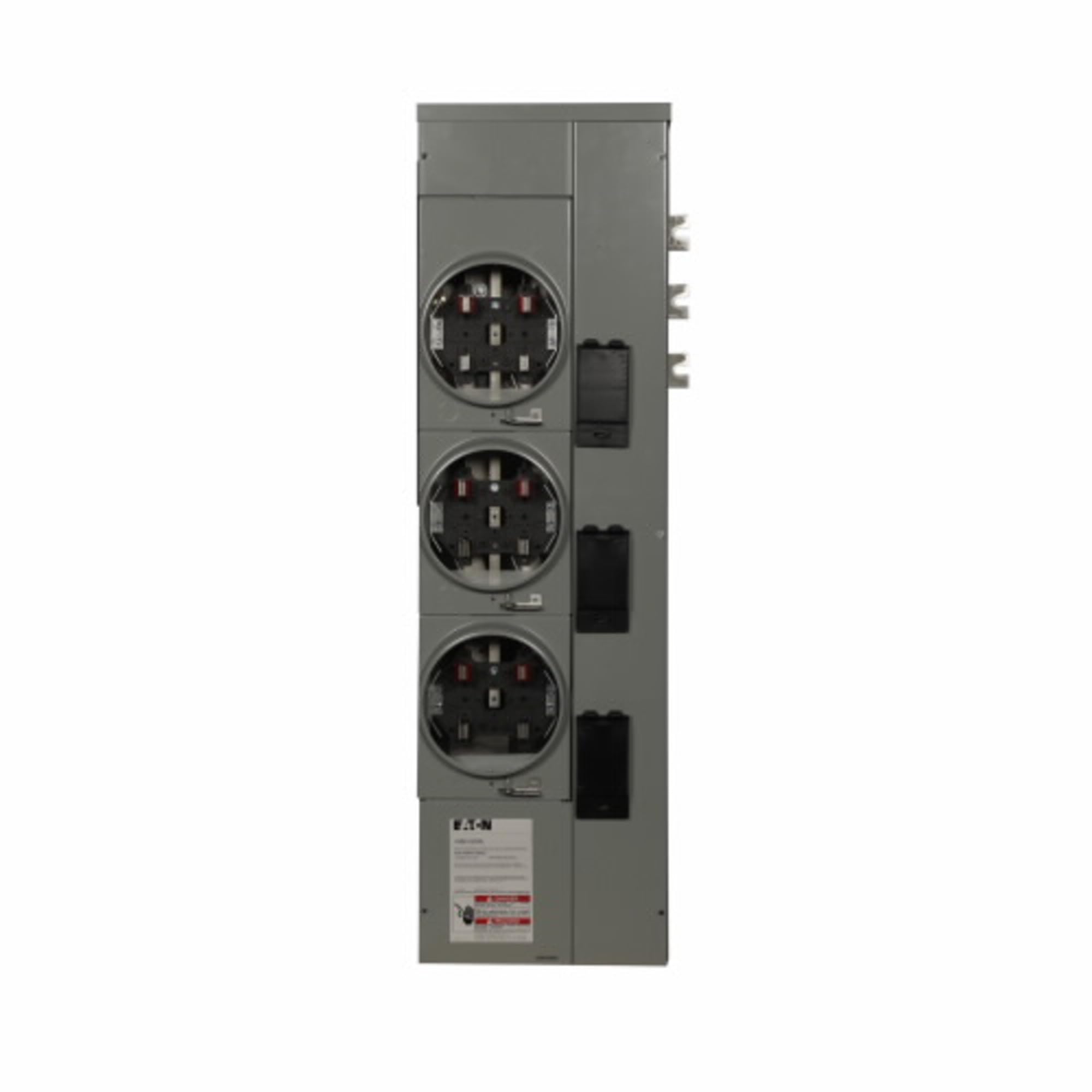

Eaton 1MM312RRL Residential Meter Stack Module 125 Amp 120/240 V (3-Socket 1-Phase 800A Bus)

Product Description

Eaton 1MM312RRL is a residential meter stack module rated 125 A and 120/240 VAC for single-phase in/single-phase out metering. The ringless module includes three meter sockets and a standard 800 A aluminum bus within a NEMA 3R outdoor enclosure. It is sized for modular residential applications such as apartment complexes, duplexes, and triplexes and provides plug-on mounting compatibility and neutral termination in each module wireway.

• Three ringless meter sockets, single-phase in/out, 125 A per module
• Standard 800 A aluminum bus, bus bar connection, plug-on mounting
• NEMA 3R outdoor enclosure; dimensions 41.8 in H x 12.26 in W x 7.01 in D

Product Highlights

125 A, 120/240 V residential meter stack with 3 sockets, 800 A bus, ringless aluminum construction and NEMA 3R outdoor rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1MM312RRL
• Country of Origin: United States

Technical Specifications

• Manufacturer: Eaton
• MPN: 1MM312RRL
• Brand: Eaton
• GTIN: 00786849052065
• UPC: 786849052065
• Voltage Rating: 120/240 V
• Amperage Rating: 125 A
• Bus Rating: 800 A
• Phase: Single-phase
• Sockets: 3
• Material: Aluminum
• Enclosure Type: Outdoor
• Enclosure Rating: NEMA 3R
• Dimensions: 41.8 in H x 12.26 in W x 7.01 in D
• Weight: 70 lb
• Mounting Type: Plug-On
• Connection Type: Bus Bar
• Short Circuit Current Rating: 100 kA
• Certifications: UL Listed
• Applications: Residential multiple metering (apartment complexes, duplexes, triplexes)
• Jaws: 4
