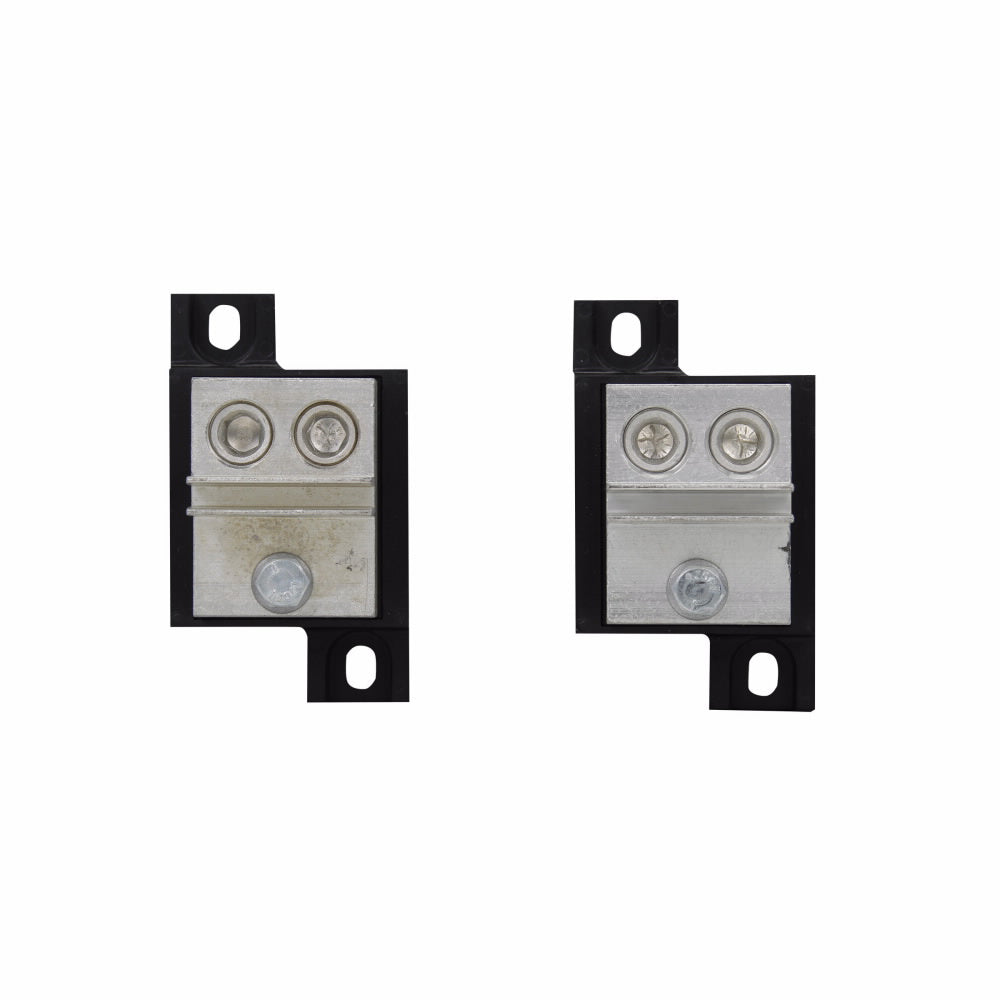

Eaton 1BS102 1BS10x BUS FUSEBLOCK 600 V 400 A

Product Description

Eaton 1BS102 is a modular universal fuse block designed for reliable circuit protection. The product supports a voltage rating of six hundred volts and an amperage rating of four hundred amps. It can accommodate wire sizes ranging from six AWG to two hundred fifty kcmil. This unit is suitable for stud mounting and is compatible with 300/600 VAC Class T high-speed fuses.

• Modular universal design
• Temperature rating of one hundred fifty degrees Celsius
• CE and UL listed for safety compliance

Product Highlights

The Eaton 1BS102 fuse block ensures safety and compliance in electrical assemblies and panels.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: 1BS102

Technical Specifications

• Amperage Rating: 400 A
• Voltage Rating: 600 V
• Connection Type: Screw
• Number of Poles: 1
• Dimensions: 2.25 in W x 2.53 in H
• Material: Phenolic
• Temperature Rating: 150 deg C
• Application: Electrical assemblies, panels, and EOEMs applications
• Standards/Approvals: CE Certified, CSA Certified, RoHS Compliant, UL Listed
• Suitable For Use With: 300/600 VAC Class T High Speed Fuse
• Series: 1BS10x
• Mounting Type: Stud
