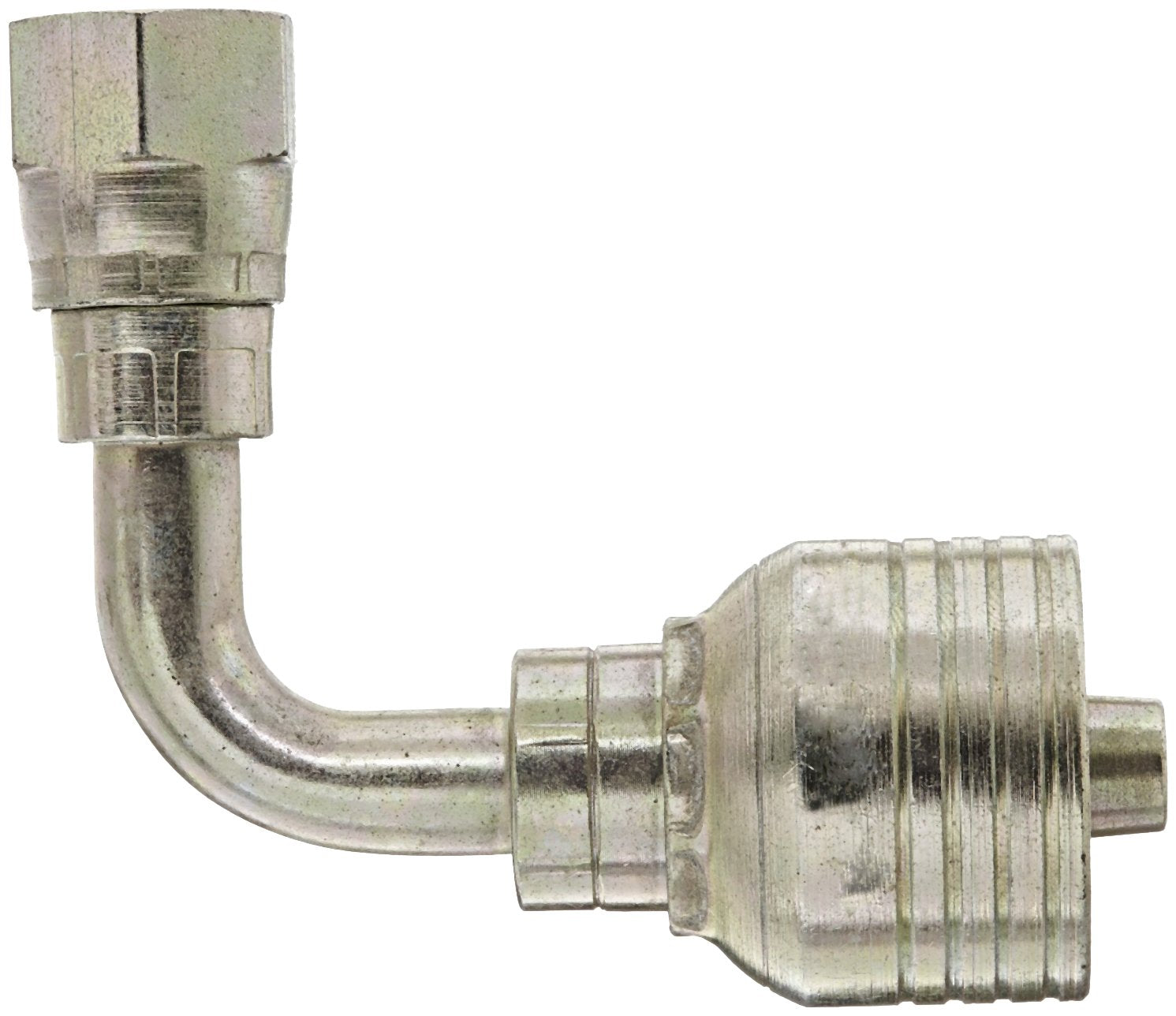

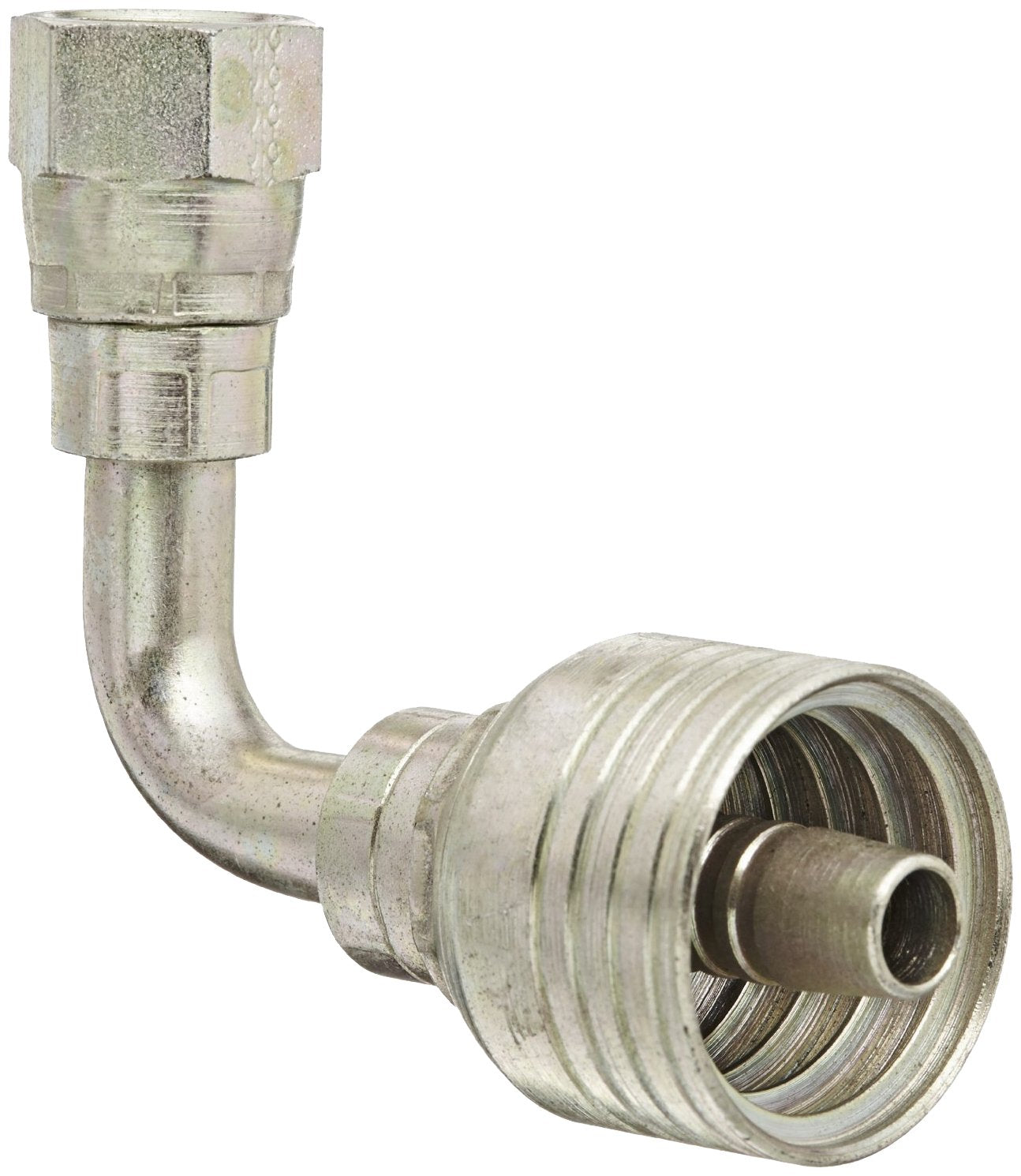

Eaton 1BA12FJB12 Aeroquip Global TTC12 Crimp Hose Fitting 90 Degree Elbow

Product Description

The EATON 1BA12FJB12 Aeroquip Global TTC12 crimp hose fitting connects hose to tube at a 90-degree angle, facilitating a quarter direction change. Constructed from carbon steel for enhanced hardness, strength, and rust resistance. Designed for use with hose series GH493. The 90-degree elbow configuration helps prevent hose kinking and strain.

• 90 degree elbow for connecting hose at an angle
• Carbon steel for hardness, strength, and resistance to rust
• 90 degree bend prevents hose kinking and strain

Product Highlights

Aeroquip Global TTC12 crimp hose fitting made of carbon steel with a 90-degree elbow, ideal for connecting hoses to valves, water pressure pumps, and deck drains.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1BA12FJB12
• Country of Origin: United States

Technical Specifications

• Fitting Angle: 90 Degree Elbow
• Hose ID: 3/4"
• Tube Size: 3/4"
• Material: Carbon Steel
• Connection Type: JIC 37 Degree Female Swivel
• Hydraulic Fitting Thread Size: 1-1/16"-12
• Length (In.): 3.36
• Hose Dash Size: 12
• For Hose Dash Size: -12
• Fitting Shape: 90 Degrees Elbow
• Fitting Material: Steel
• Thread Angle (Deg.): 37
• Hydraulic Hose I.D.: 3/4"
• Hydraulic Fitting Connection Type: Crimpable
• Finish: Trivalent Chromium Zinc
• For Use With Hose Series: GH493
• Standards: SAE/JIC
• Hydraulic Fitting Thread Type: Female JIC Swivel
• Fitting Type: 90 Degrees Elbow
