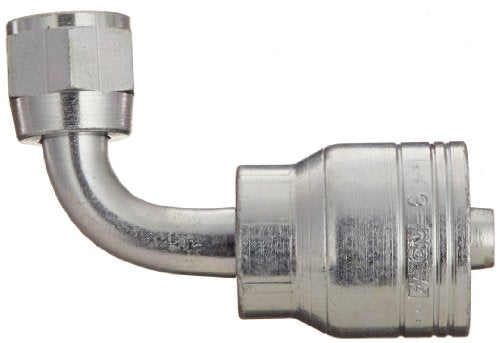

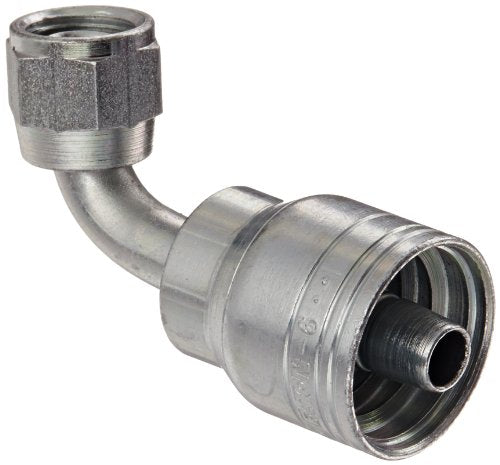

Eaton 1AA6FJB6 Aeroquip Carbon Steel Global TTC Crimp Hose Fitting 3/8 inches 90 Degree Elbow

Product Description

The Eaton 1AA6FJB6 Aeroquip is a carbon steel global TTC (Thru the Cover) crimp hose fitting with a female JIC swivel and a 90-degree elbow. Designed for general purpose low and medium pressure hydraulics, it features a 3/8" hose ID and 9/16" - 18 thread. Dura-Kote plating provides superior corrosion resistance.

• Carbon Steel Construction
• Global TTC (Thru the Cover) Crimp Hose Fitting
• Female JIC Swivel

Product Highlights

This carbon steel crimp hose fitting offers a 90-degree elbow and is suitable for hydraulic applications requiring corrosion resistance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA6FJB6

Technical Specifications

• Fitting Gender: Female
• Fitting Angle: 90 Degree Elbow
• Hose ID: 3/8"
• Thread Size: 9/16" - 18
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• Brand: Aeroquip
• End Size 1: 0.56
• End Size 2: 0.38
• End Type 1: JIC 37
• End Type 2: Line/Hose/Tube
• Hose Size: -06
• Mandrel Required: No
• Supplier Part Number: 1AA6FJB6
• Thread 1: 9/16-18
• Thread Sealant: No
• Torque Rating: 20-22 LB/FT
• Adapter Type: Hose Fittings
• Material: Carbon Steel
• Body Material: Carbon Steel
• Compatible Hose Series: 2661(–12 thru –32), FC310, FC510, FC579, FC611, FC619 (–12 thru –32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681–6, GH781, GH793, EC115, EC215, EC110, EC210, EC118
• Connection 1 Short Name: JIC 37
• Hose Cut-Off Factor: 1.22 in
• Length: 2.68 in
• Overall Length: 2.68 in
• Manufacturer Catalog Number: 1AA6FJB6
• Manufacturer Upc Number: 678146127143
• Finish: DURA-KOTE
• End 1 Size: 9/16 in
• End 1 Thread: 9/16-18
• Hex Size: 0.69 in
• End 1 Style: JIC 37
• Inside Diameter: 0.24 in
• Type: Hose Fitting
• Height: 1.75 in
• Angle: 90 °
• Finish/Coating: DURA-KOTE
• Product Types: Fitting Assembly
• Overall Weight: 1.33 lb
• Compatible Tube Outer Diameter: 0.38 in
• End 2 Size: 1.067 in
• Hose Dash Size: 06
• Width: 1.07 in
• Fitting Type: 90 deg Elbow
• Gender 2: Female
• Connection Size 2: 3/8 in
• Nominal Size: 3/8 in
• Thread Size 2: 9/16-18
• Cut-Off Factor: 1.22 in
• For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses
• Series: 1A
• Hose Connection: 3/8 in
• Connection Type 1: Hose
• Connection Size 1: 3/8 in
• Connection 2: 3/8 in JIC Swivel
• Connection Type 2: SAE 37 deg JIC Swivel
