Eaton 1AA6FJ6 Aeroquip Global TTC Crimp Hose Fitting 3/8 inches Hose ID

Product Description

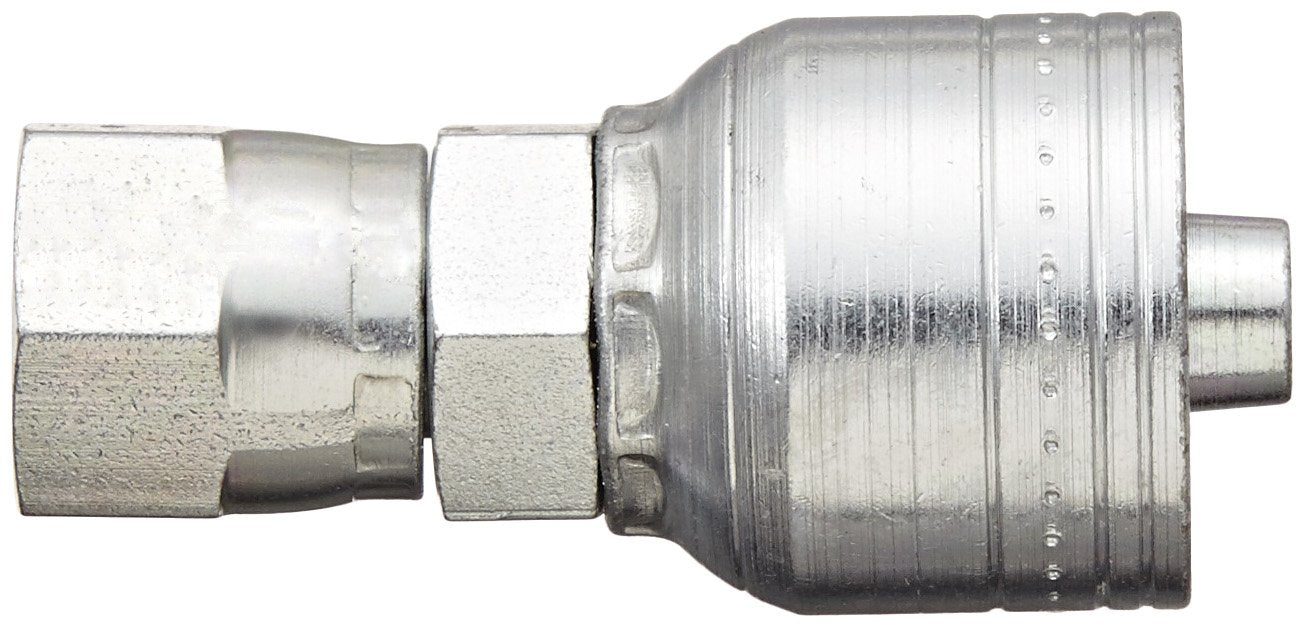

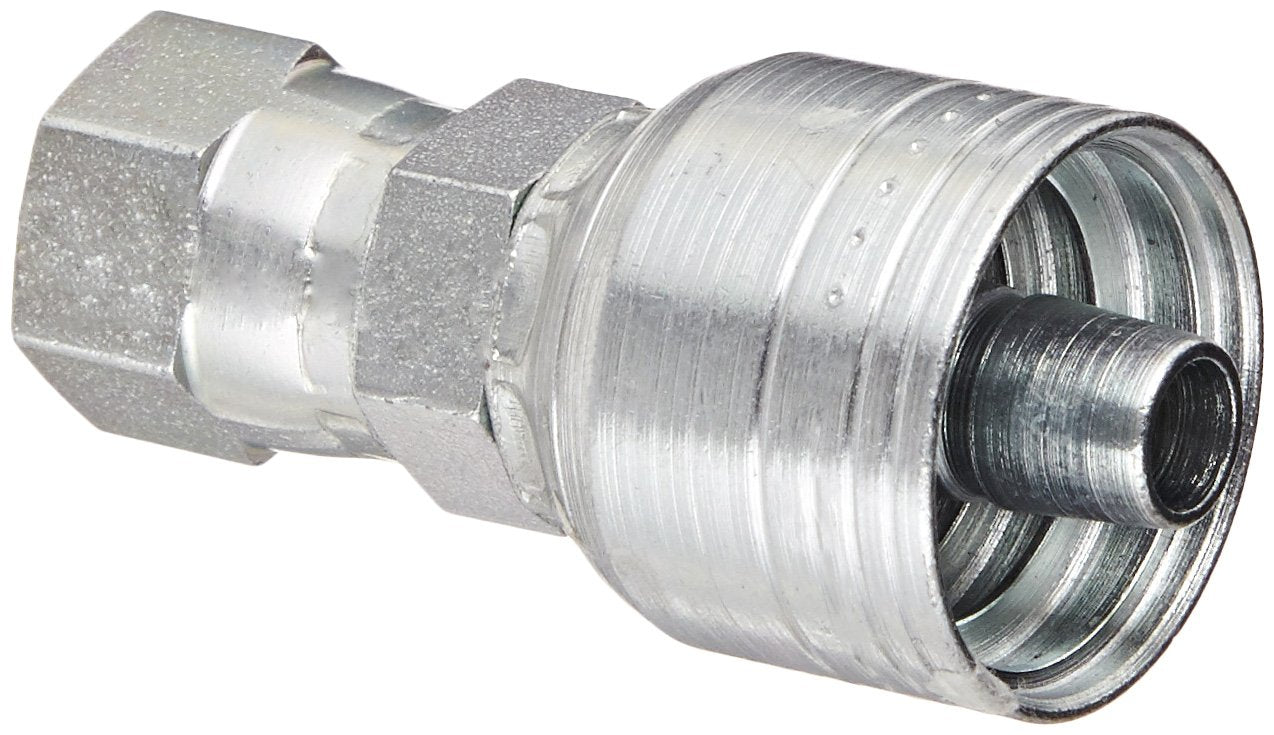

The EATON 1AA6FJ6 Aeroquip global crimp hydraulic hose fitting is a carbon steel hose crimp socket for a straight connection of hose to a pipe. It features a crimp socket on one end and a JIC 37-degree female swivel on the other for connecting to a male threaded pipe. Designed for low, medium, and high pressure hydraulic applications.

• Crimp socket for connecting steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and JIC 37-degree female swivel for connecting to a male threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

This Aeroquip fitting is made of carbon steel with a zinc coating for corrosion resistance. It is suitable for automotive, agriculture, airline, municipal, and industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA6FJ6

Technical Specifications

• Material: AISI 12L14 carbon steel
• Coating: Zinc-plated
• Connection Type: Crimp fitting, JIC 37-degree female swivel
• Hose ID: 3/8"
• Thread Size: 9/16" - 18
• Adapter Type: Hose Fittings
• End Gender: Female
• Hose Inside Diameter: 3/8 in
• Body Material: Carbon Steel
• Compatible Hose Series: 2661(–12 thru –32), FC310, FC510, FC579, FC611, FC619 (–12 thru –32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681–6, GH781, GH793, EC115, EC215, EC110, EC210, EC118
• Connection 1 Short Name: JIC 37
• Hose Cut-Off Factor: 1.28 in
• Length: 2.26 in
• Overall Length: 2.26 in
• Finish: DURA-KOTE
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• End 1 Size: 9/16 in
• End 1 Thread: 9/16-18
• Hex Size: 0.69 in
• End 1 Style: JIC 37
• Inside Diameter: 0.26 in
• Type: Hose Fitting
• Height: 1.07 in
• Angle: 180 °
• Finish/Coating: DURA-KOTE
• Outer Diameter: 1.07 in
• End 2 Size: 0.375 in
• Hose Dash Size: -6
• Width: 1.07 in
