Eaton 1AA4MP4 Aeroquip Carbon Steel Global TTC Crimp Hose Fitting 1/4 inches Hose ID, 1/4 inches - 18 Thread

Product Description

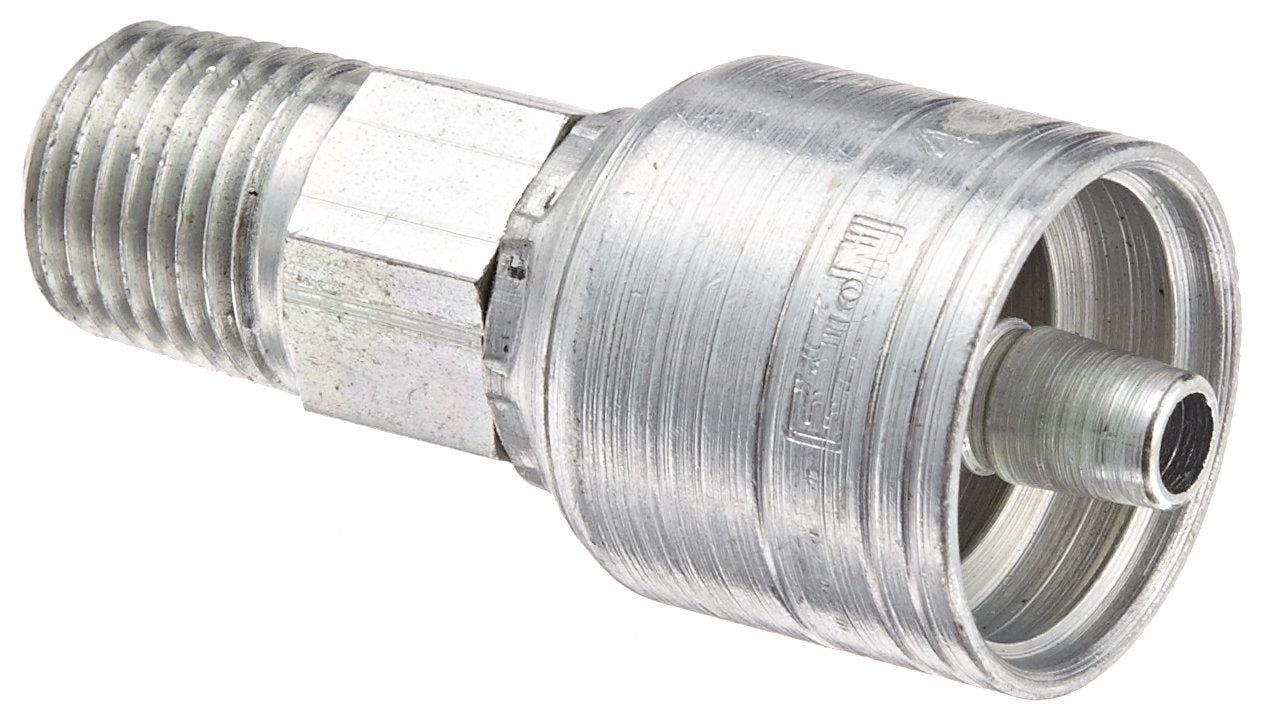

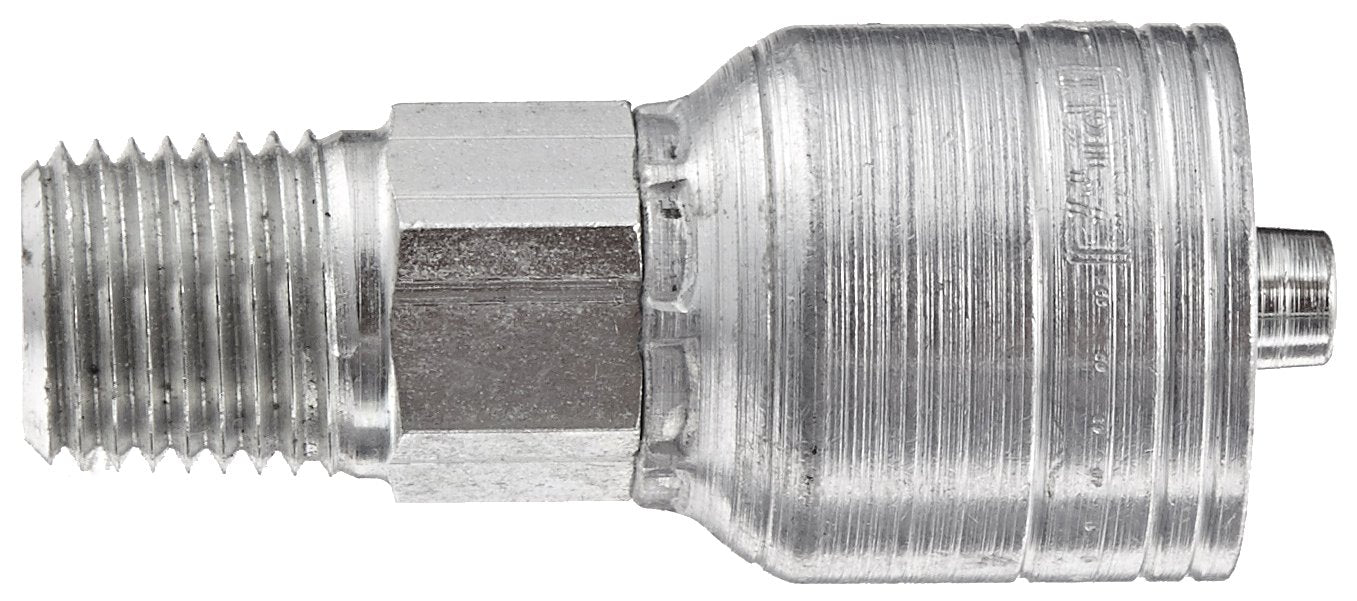

The EATON 1AA4MP4 Aeroquip global crimp hydraulic hose fitting is a carbon steel hose crimp socket for a straight connection of hose to a pipe. It features a crimp socket on one end that connects to the hose, with no skiving necessary, and a male pipe thread form for connecting to a female threaded pipe. It is made of AISI 12L14 carbon steel with a zinc coating for corrosion resistance and meets SAE standards.

• Crimp socket for a straight connection of steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and a male pipe end for connecting to a female threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

This Aeroquip fitting is designed exclusively for Aeroquip hose for low, medium, and high pressure hydraulic applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA4MP4

Technical Specifications

• Material: Carbon Steel
• Coating: Zinc
• Standards Met: SAE
• Hose ID: 1/4"
• Thread Size: 1/4"-18
• Manufacturer: Eaton Aeroquip
• Finish: ROHS Trivalent Chromium Zinc
• Standards: GH793, SAE 100R1, SAE 100R2
