Eaton 1AA16MJ16 Aeroquip Carbon Steel Global TTC Crimp Hose Fitting Male SAE, 1 inches Hose ID

Product Description

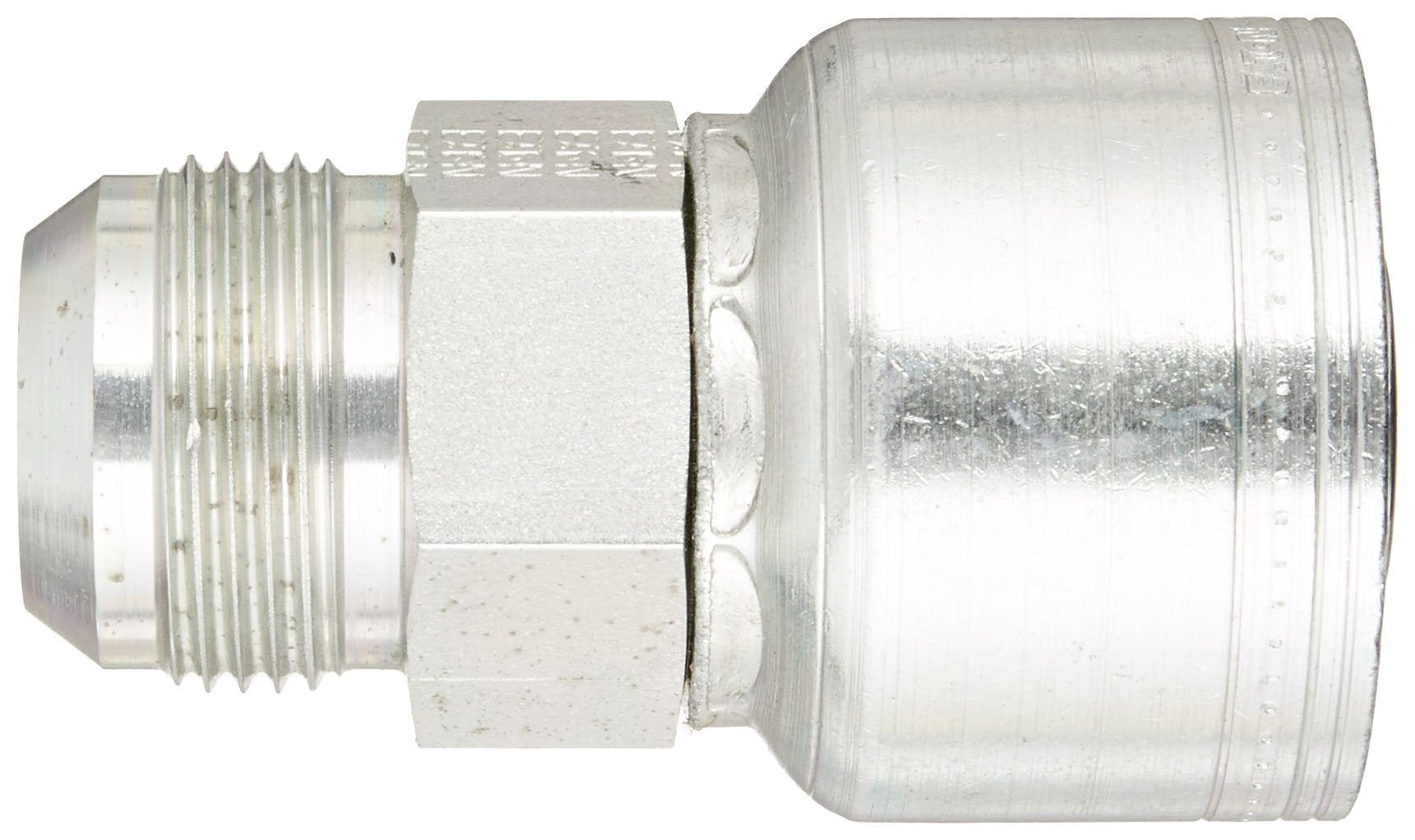

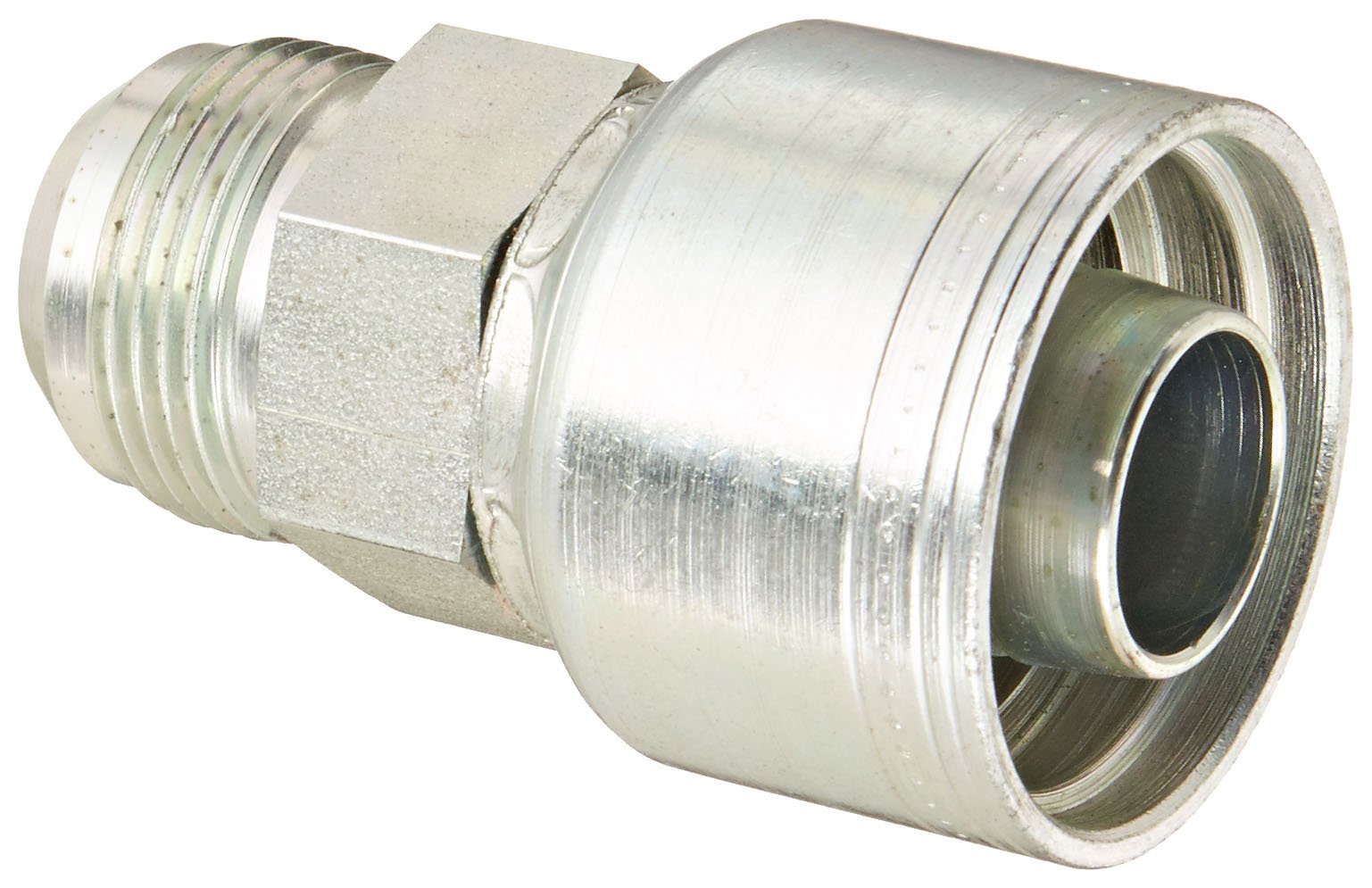

The EATON 1AA16MJ16 Aeroquip global crimp hydraulic hose fitting is a carbon steel hose crimp socket for a straight connection of hose to a pipe. This fitting has a crimp socket on one end that connects to the hose, with no skiving necessary, and a male pipe thread form for connecting to a female threaded pipe. It is designed exclusively for Aeroquip hose for low, medium, and high pressure hydraulic applications.

• Crimp socket for a straight connection of steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and a male SAE end for connecting to a female threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

The Aeroquip 1AA16MJ16 fitting's TTC crimping design allows for higher operating pressure. It is made of AISI 12L14 carbon steel with zinc coating for corrosion resistance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA16MJ16

Technical Specifications

• Material: AISI 12L14 carbon steel
• Coating: Zinc
• Hose ID: 1"
• Thread Size: 1-5/16" - 12
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• Brand: Aeroquip
• Hose Size: -16
• Mandrel Required: No
• Supplier Part Number: 1AA16MJ16
• Thread 1: 1-5/16-12
• Thread Sealant: No
• Torque Rating: 117-125 LB/FT
• Alternate Part Number: MINO-00015F51636
