Eaton 1AA16FJ12 Aeroquip Global TTC Crimp Hose Fitting 3/4 inches Hose ID, 1-5/16 inches - 12 Thread

Product Description

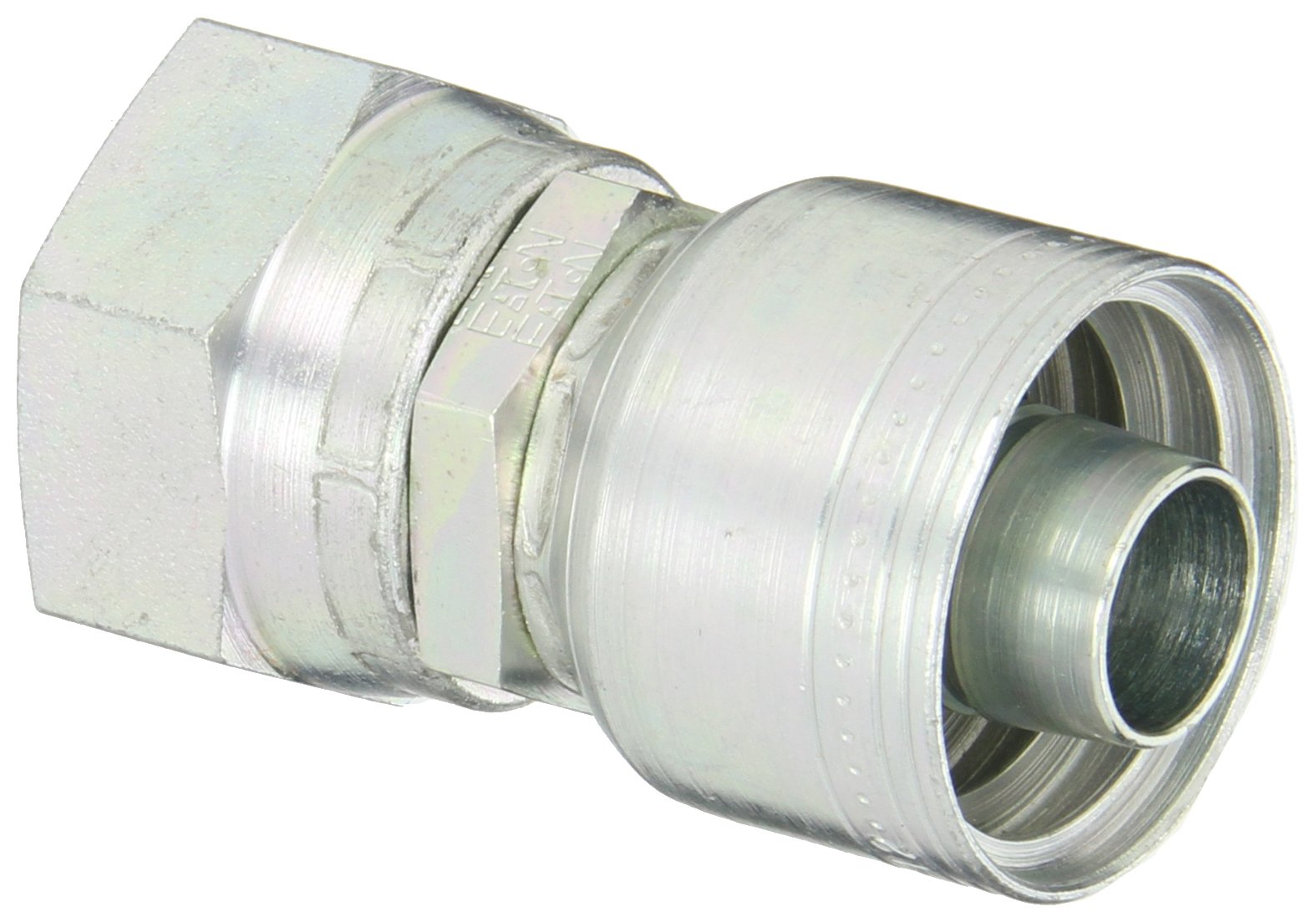

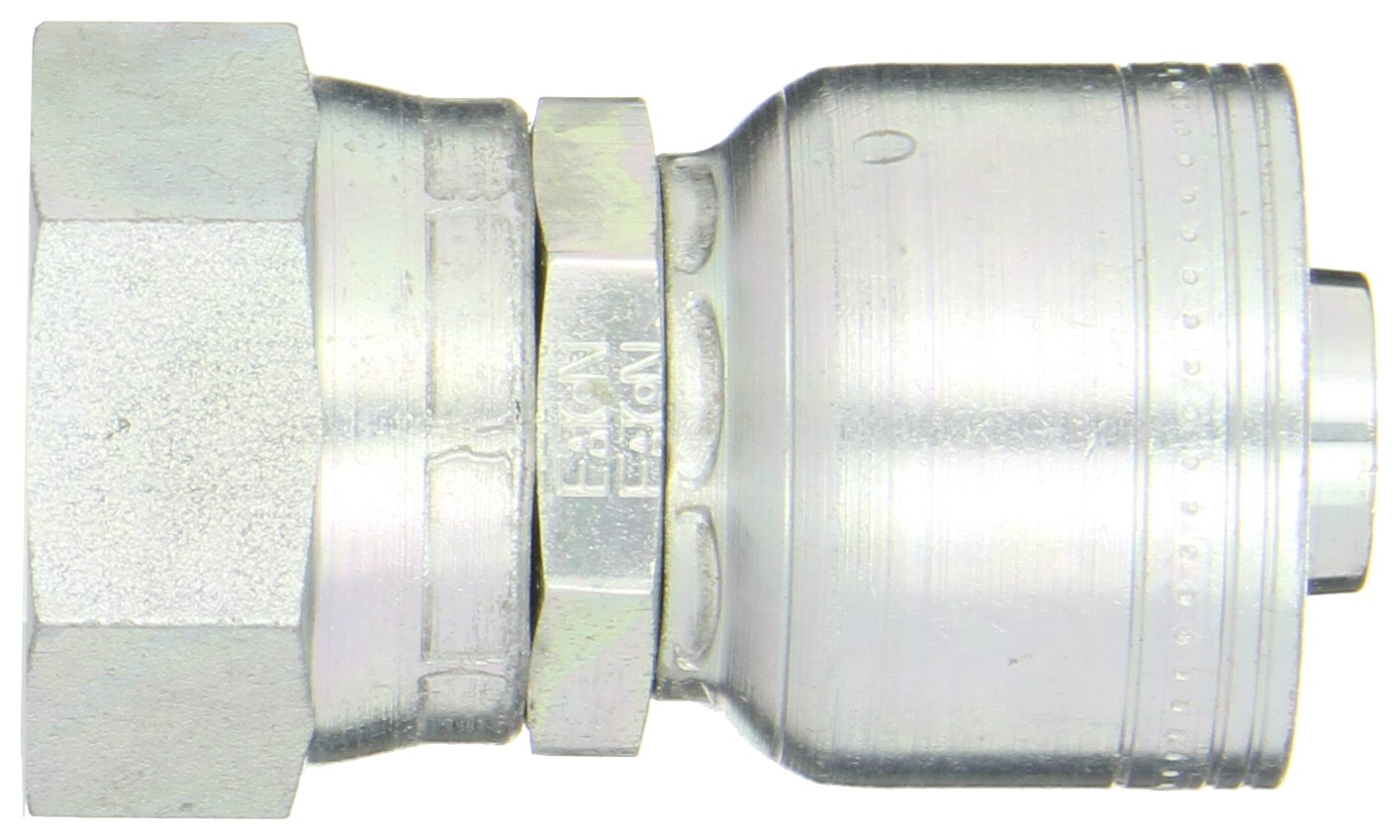

The EATON 1AA16FJ12 Aeroquip global crimp hydraulic hose fitting is a carbon steel hose crimp socket for a straight connection of hose to a pipe. It features a crimp socket on one end that attaches to the hose, with no skiving necessary, and a JIC 37-degree female swivel on the other end for connecting to a male threaded pipe. Designed exclusively for Aeroquip hose for low, medium, and high pressure hydraulic applications.

• Crimp socket for connecting steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and JIC 37-degree female swivel for connecting to a male threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

The Aeroquip 1AA16FJ12 fitting's Through-The-Cover (TTC) crimping design allows for higher operating pressure and burst pressure. It is compatible with various Aeroquip hoses.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA16FJ12

Technical Specifications

• Brand: Aeroquip
• Manufacturer: Eaton
• Model / MPN: 1AA16FJ12
• Product Type: HOSE_PIPE_FITTING
• Part ID / MPN: 1AA16FJ12
• Size: 3/4" Hose ID, 1-5/16" - 12 Thread
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• Hose Size: -12
• Mandrel Required: No
• Supplier Part Number: 1AA16FJ12
• Thread 1: 1-5/16-12
• Thread Sealant: No
• Torque Rating: 117-125 LB/FT
• End Type 1: JIC 37
• End Type 2: Line/Hose/Tube
• Hex Size 2: 1.18
