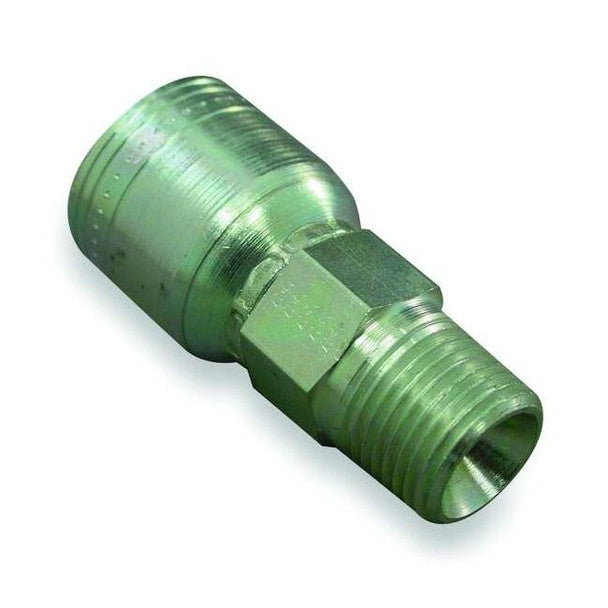

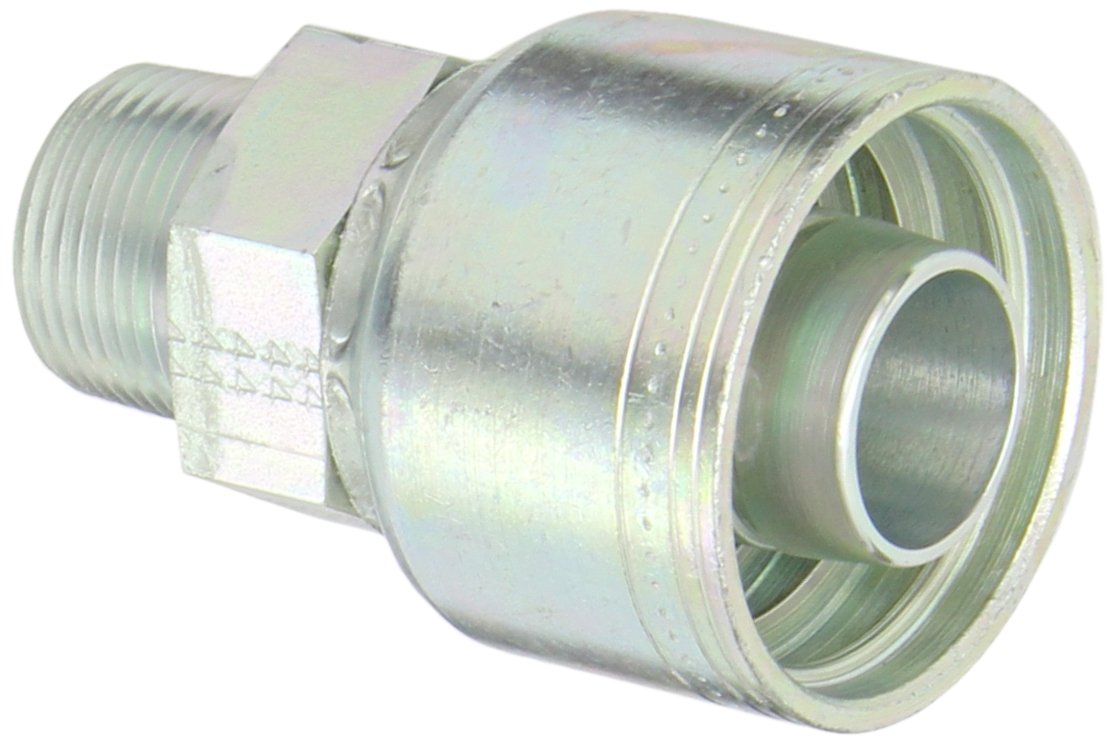

Eaton 1AA12MP16 Aeroquip Global TTC Crimp Hose Fitting 1 inches Hose ID, 3/4 inches - 14 Thread

Product Description

The EATON 1AA12MP16 Aeroquip global crimp hydraulic hose fitting is a carbon steel hose crimp socket for a straight connection of hose to a pipe. It features a crimp socket on one end that connects to the hose, with no skiving necessary, and a male pipe thread form for connecting to a female threaded pipe. It is made of AISI 12L14 carbon steel with a zinc coating.

• Crimp socket for a straight connection of steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and a male pipe end for connecting to a female threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

This fitting's TTC crimping design allows for higher operating pressure. It is designed exclusively for Aeroquip hose for low, medium, and high pressure hydraulic applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA12MP16
• Country of Origin: United States

Technical Specifications

• Brand: Aeroquip
• Manufacturer: Eaton
• Model / MPN: 1AA12MP16
• Product Type: HOSE_PIPE_FITTING
• Product Group: BISS
• Size: 1" Hose ID, 3/4" - 14 Thread
• Number of Items: 1.0
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• D: 1.67
• Pack Size: 1.00
• UOM: EA
• End Size 1: 0.75
• End Size 2: 1
• End Type 1: NPTF
• End Type 2: Line/Hose/Tube
• Hose Size: -16
• Mandrel Required: No
• Supplier Part Number: 1AA12MP16
• Thread 1: 3/4-14
• Thread Sealant: No
• Alternate Part Numbers: C1AP57, MI-00302078, MINO-00015F50820
• For Hose Dash Size: -16
• For Use With Hose Series: 2661(-12 through -32); EC110; EC115; EC118; EC210; EC215; FC310; FC510; FC579; FC611; FC619 (-12 through -32); FC639/FC839B; FC693; FC735; FC849/FC849B; GH120; GH194; GH195; GH663; GH681-6; GH781; GH793
• For Hose I.D.: 1 in
• Thread Size: 3/4 In.-14
• Fitting Shape: Straight, Rigid
• Vacuum Rating: Not Rated
• Thread Type: NPTF
• Hose Fitting A Gender: Male
• Hose Fitting B Gender: Genderless
• Hose Fitting A Size: 3/4 in
• Material: Carbon Steel
