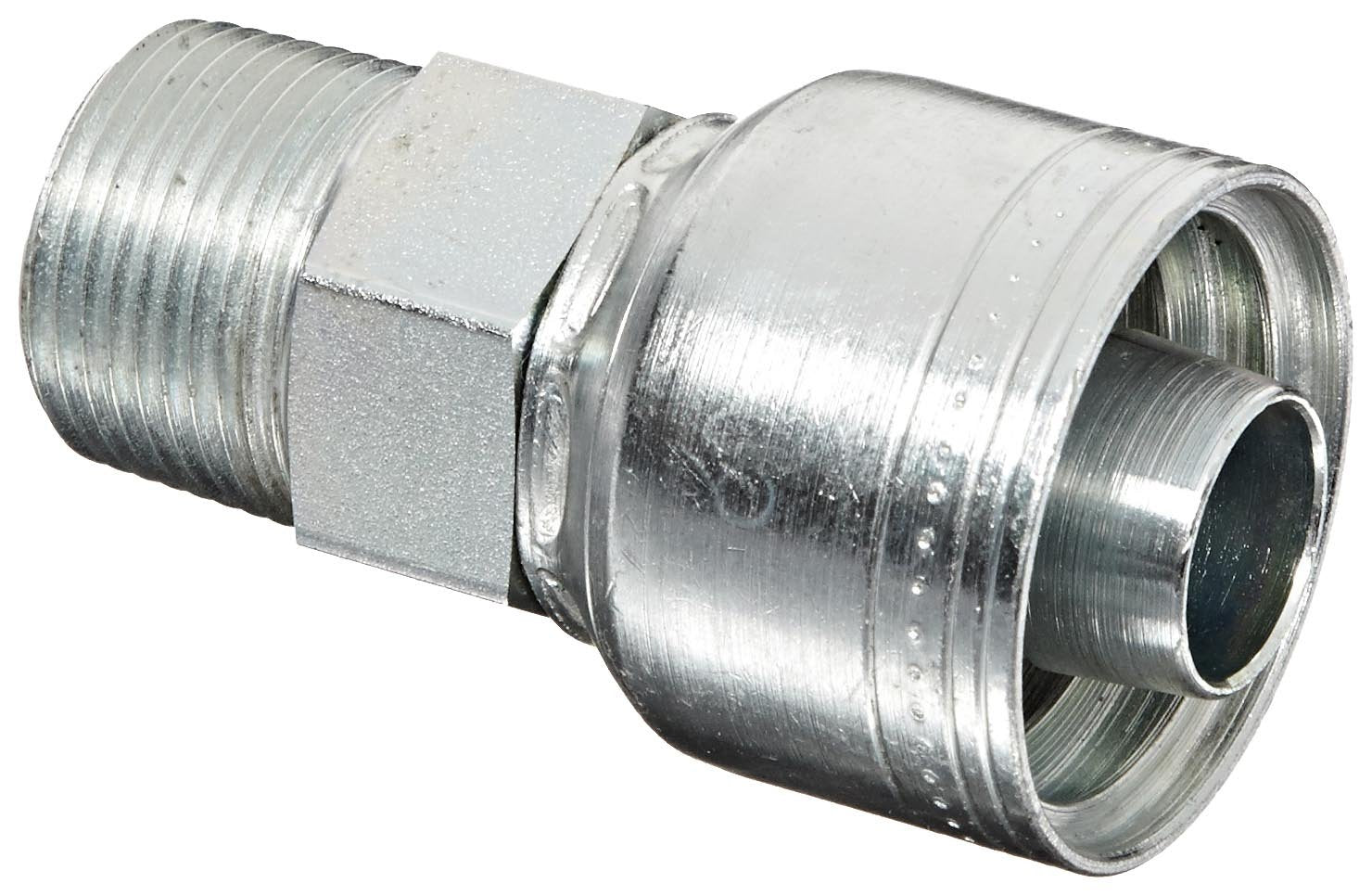

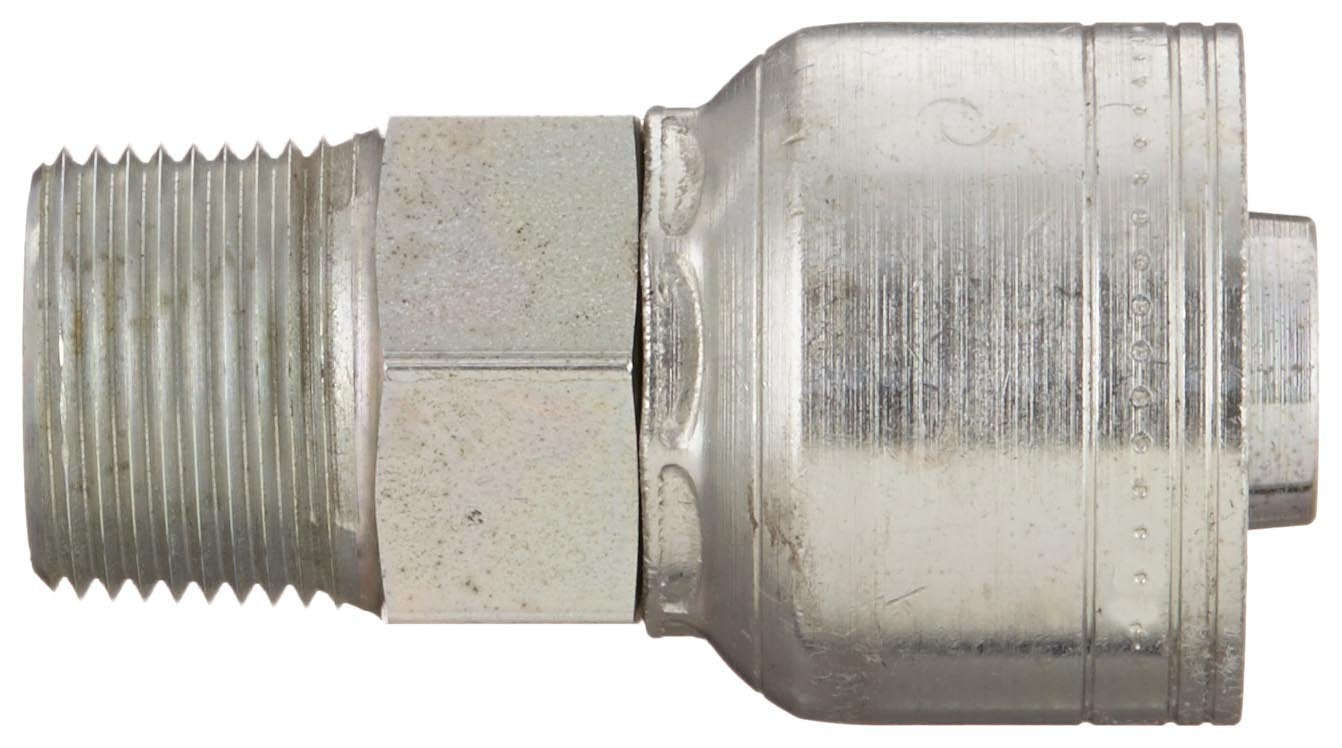

Eaton 1AA12MP12 Aeroquip Carbon Steel Global TTC Crimp Hose Fitting 3/4 inches Hose ID, 3/4 inches - 1 Thread

Product Description

The EATON 1AA12MP12 Aeroquip global crimp hydraulic hose fitting is a carbon steel hose crimp socket for a straight connection of hose to a pipe. It features a crimp socket on one end for hose attachment and a male pipe thread for connecting to a female threaded pipe. Designed for low, medium, and high pressure hydraulic applications.

• Crimp socket for a straight connection of steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and a male pipe end for connecting to a female threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

The 1AA12MP12 fitting's TTC crimping design allows for higher operating and burst pressure. It is compatible with various Aeroquip hoses.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA12MP12

Technical Specifications

• Product Type: HOSE_PIPE_FITTING
• Product Group: BISS
• Model / MPN: 1AA12MP12
• Size: 3/4" Hose ID, 3/4" - 1 Thread
• Number of Items: 1.0
• Adapter Type: Hose Fittings
• End Gender: Male
• Hose Inside Diameter: 3/4 in
• Material: Carbon Steel
• Thread Size: 3/4-14
• Body Material: Carbon Steel
• Compatible Hose Series: 2661(–12 thru –32), FC310, FC510, FC579, FC611, FC619 (–12 thru –32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681–6, GH781, GH793, EC115, EC215, EC110, EC210, EC118
• Connection 1 Short Name: NPTF
• Hose Cut-Off Factor: 1.65 in
• Length: 3.04 in
• Overall Length: 3.04 in
• Manufacturer Catalog Number: 1AA12MP12
• Manufacturer Upc Number: 678146125781
• Finish: DURA-KOTE
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• End 1 Size: 3/4 in
• End 1 Thread: 3/4-14
• Hex Size: 1.06 in
• End 1 Style: NPTF
• Inside Diameter: 0.61 in
• Type: Hose Fitting
• Height: 1.56 in
• Angle: 180 °
• Finish/Coating: DURA-KOTE
• Outer Diameter: 1.56 in
• Compatible Tube Outer Diameter: 0.75 in
• End 2 Size: 0.750 in
• Hose Dash Size: -12
• Width: 1.56 in
