Eaton 1AA12FRB12 Aeroquip Carbon Steel Global TTC Crimp Hose Fitting 3/4 inches Hose ID, 1-3/16 inches - 12 Thread

Product Description

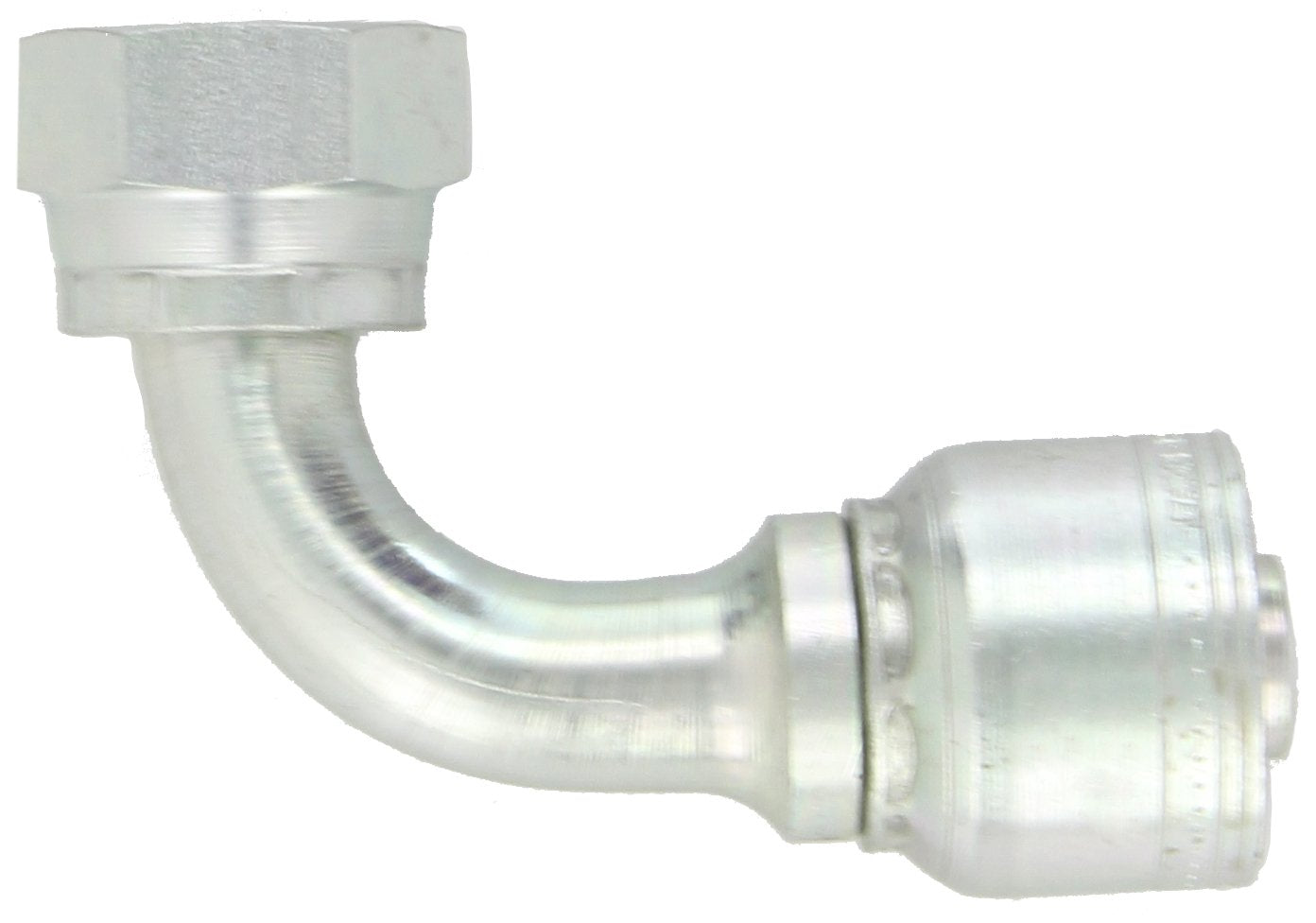

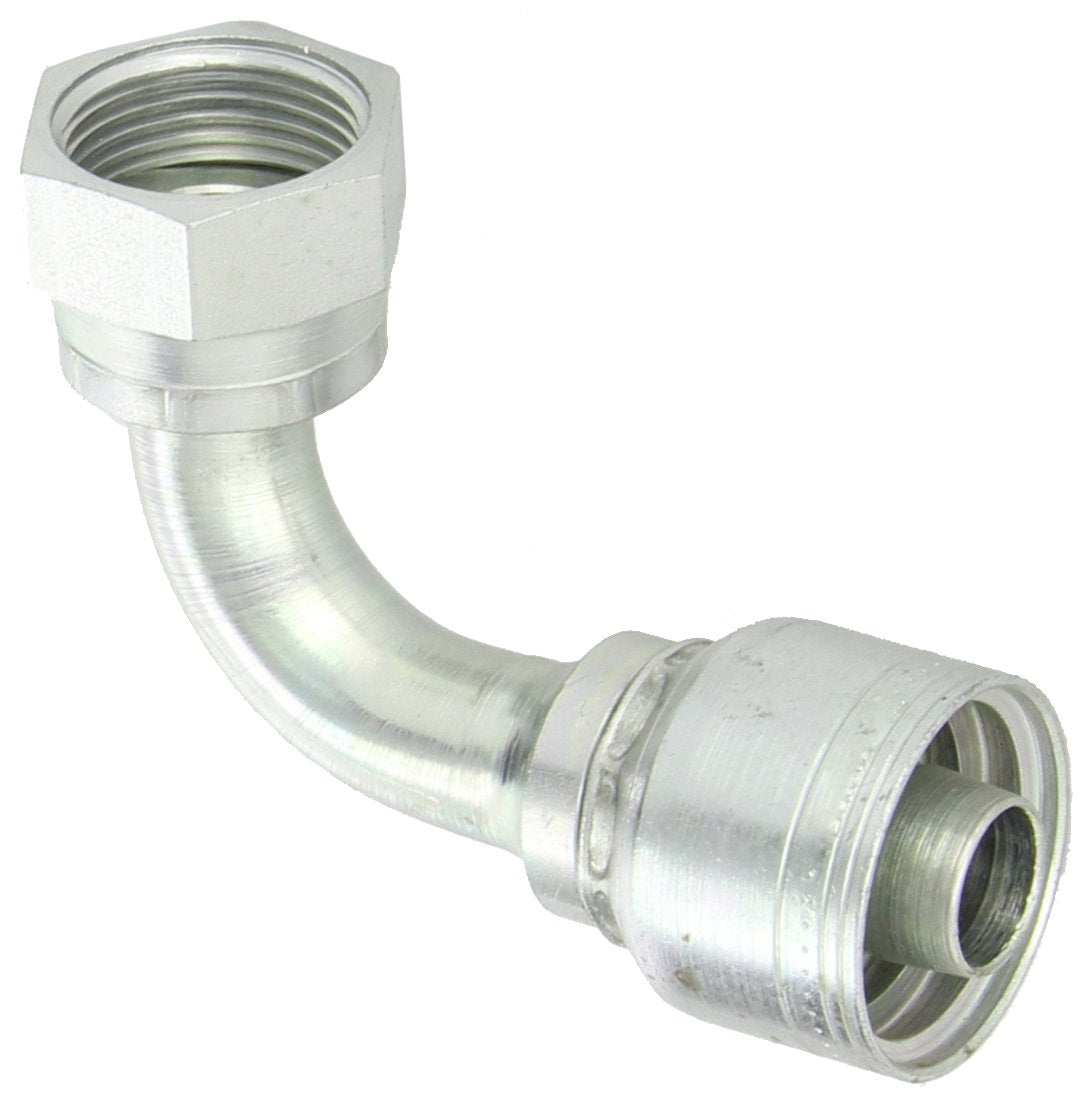

The EATON 1AA12FRB12 Aeroquip global crimp hydraulic hose fitting is a 90-degree elbow fitting connecting a hose to pipe at a 90-degree angle to change the direction of flow. It features a crimp socket on one end and an ORS female swivel on the other end for connecting to a male threaded pipe fitting. It is made of AISI 12L14 carbon steel with zinc plating.

• 90-degree elbow for connecting steel wire-reinforced hydraulic hose to pipe at an angle
• Crimp fitting on one end for attaching to hose and an ORS female swivel on the other end for connecting to a male threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

This fitting's TTC crimping design allows for higher operating pressure. It is designed exclusively for Aeroquip hose for low, medium, and high pressure hydraulic applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA12FRB12

Technical Specifications

• Brand: Aeroquip
• Manufacturer: Eaton
• Model / MPN: 1AA12FRB12
• Size: 3/4" Hose ID, 1-3/16" - 12 Thread
• Number of Items: 1.0
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• D: 2.30
• Drop Dimension: 1.88
• Pack Size: 1.00
• UOM: EA
• End Size 2: 0.75
• End Type 1: ORS
• End Type 2: Line/Hose/Tube
• H: 1.88 in
• Hex Size 2: 0.38
• Hose Size: -12
• Mandrel Required: No
• Supplier Part Number: 1AA12FRB12
• Thread 1: 1-3/16-12
• Thread Sealant: No
• Alternate Part Number: MINO-00015F51701
• Product Weight: 0.68 lbs
