Eaton 1AA12FJB12 Aeroquip carbon steel global TTC crimp hose fitting 3/4 inches hose ID, 1-1/16 inches - 12 thread

Product Description

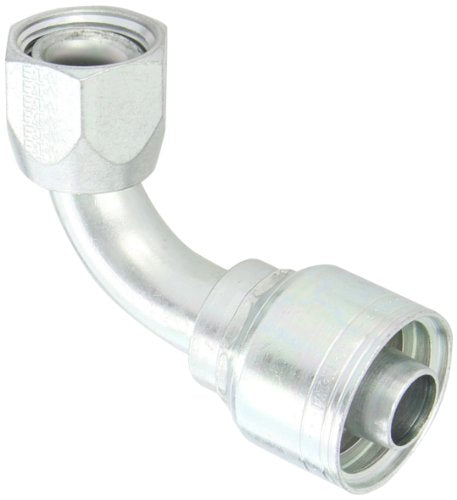

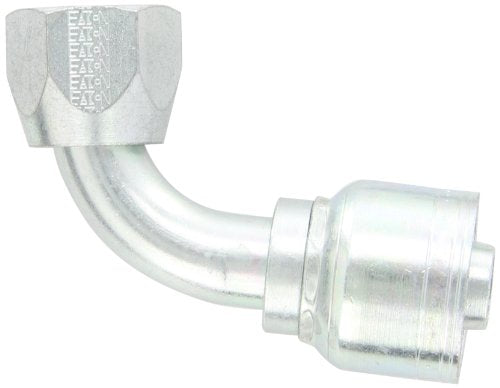

The EATON 1AA12FJB12 Aeroquip is a carbon steel global TTC (Thru the Cover) crimp hose fitting with a female JIC swivel and a 90-degree elbow. Designed for general-purpose low and medium-pressure hydraulics. It features a 3/4" hose ID and 1-1/16" - 12 thread. For use with 2661, FC310, FC510, FC579, FC611, FC619, FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses.

• Female JIC swivel
• 90-degree elbow
• Applications: General-purpose low and medium-pressure hydraulics

Product Highlights

Carbon steel crimp hose fitting with 3/4" hose ID and 1-1/16" - 12 thread, ideal for hydraulic applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA12FJB12

Technical Specifications

• Brand: Aeroquip
• Manufacturer: Eaton
• Model / MPN: 1AA12FJB12
• Part ID / MPN: 1AA12FJB12
• Product Type: HOSE_PIPE_FITTING
• Product Group: BISS
• Size: 3/4" Hose ID, 1-1/16" - 12 Thread
• Fitting Type: 90 deg Elbow
• Gender 2: Female
• Connection Size 2: 3/4 in
• Nominal Size: 3/4 in
• Thread Size 2: 1-1/16-12
• Material: Carbon Steel
• Finish: Dura-Kote
• For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses
• Series: 1A
• Hose Dash Size: 12
• Hose Connection: 3/4 in
• Connection Type 1: Hose
• Connection Size 1: 3/4 in
• Connection 2: 3/4 in JIC Swivel
• Connection Type 2: SAE 37 deg JIC Swivel
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• Hose Size: -12
• Mandrel Required: No
• Supplier Part Number: 1AA12FJB12
• Thread 1: 1-1/16-12
• Thread Sealant: No
• Torque Rating: 79-88 LB/FT
