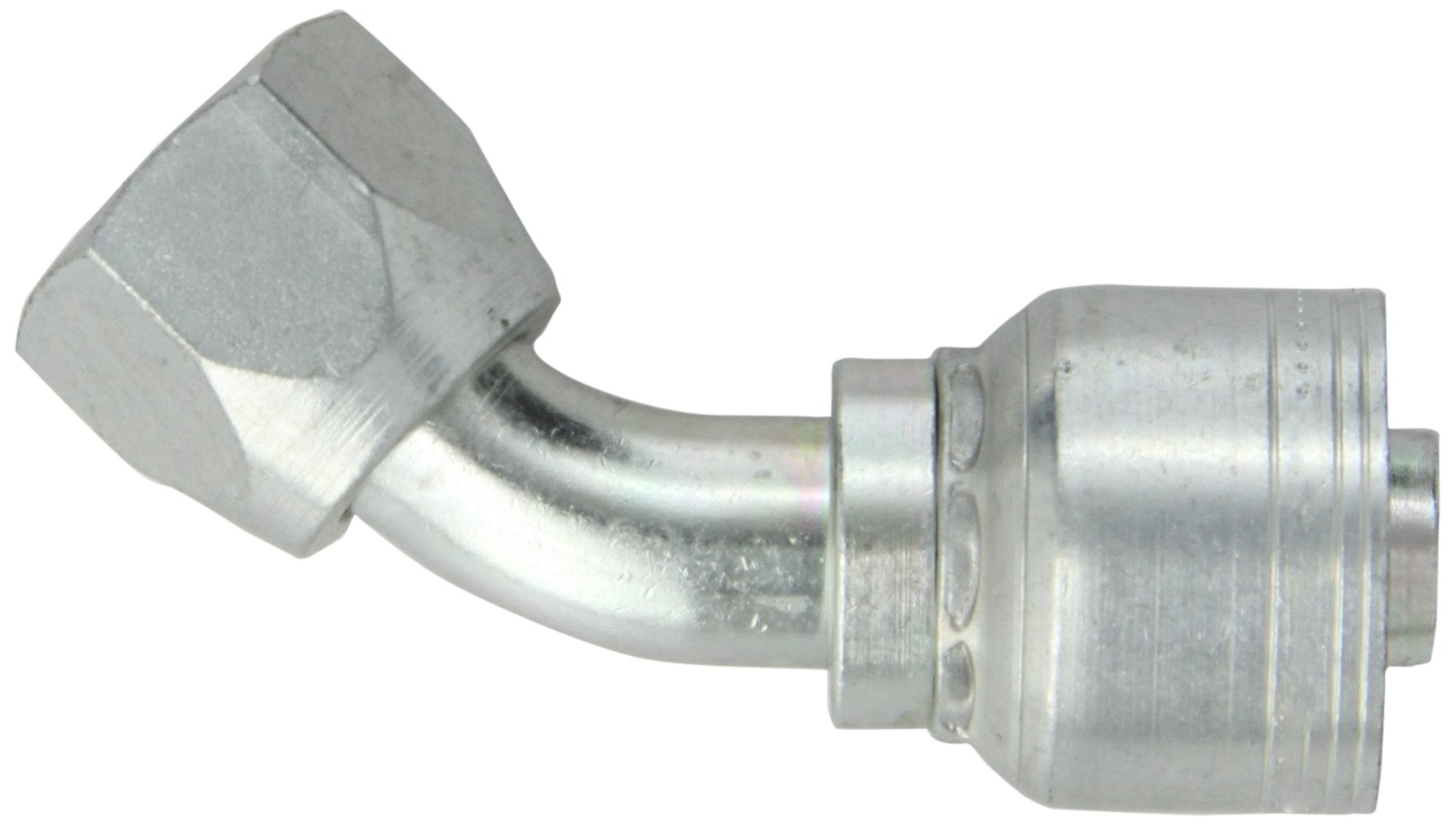

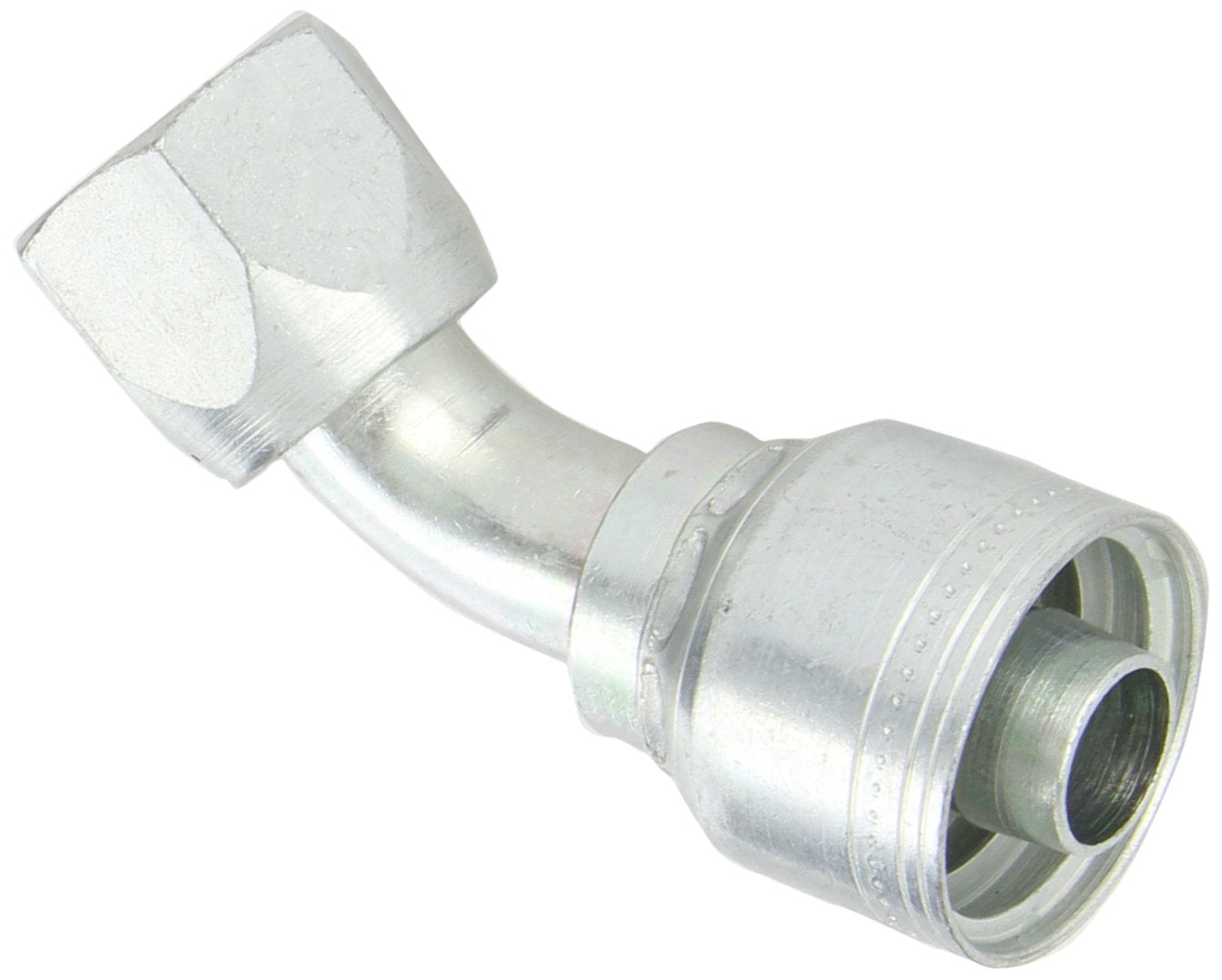

Eaton 1AA12FJA12 Aeroquip Carbon Steel Global TTC Crimp Hose Fitting 45 Degree Elbow

Product Description

The EATON 1AA12FJA12 Aeroquip global crimp hydraulic hose fitting is a 45-degree elbow for connecting a hose to pump at a 45-degree angle. Features a crimp socket on one end that attaches to the hose, with no skiving necessary, and a JIC 37-degree female swivel on the other end for connecting to a male threaded pipe. Designed exclusively for Aeroquip hose for low, medium, and high pressure hydraulic applications.

• 45-degree elbow for connecting steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and JIC 37-degree female swivel for connecting to a male threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

This Aeroquip fitting's Through-The-Cover (TTC) crimping design allows for higher operating pressure and burst pressure. Scribe line identifies the point to position a die cage for crimping.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA12FJA12

Technical Specifications

• Fitting Angle: 45-Degree Elbow
• Hose ID: 3/4"
• Thread Size: 1-1/16" - 12
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• Brand: Aeroquip
• Hose Size: -12
• Mandrel Required: No
• Supplier Part Number: 1AA12FJA12
• Thread 1: 1-1/16-12
• Thread Sealant: No
