Eaton 1AA12FJ12 Aeroquip Carbon Steel Global TTC Crimp Hose Fitting Female JIC Swivel, Straight, 3/4 inches Hose ID

Product Description

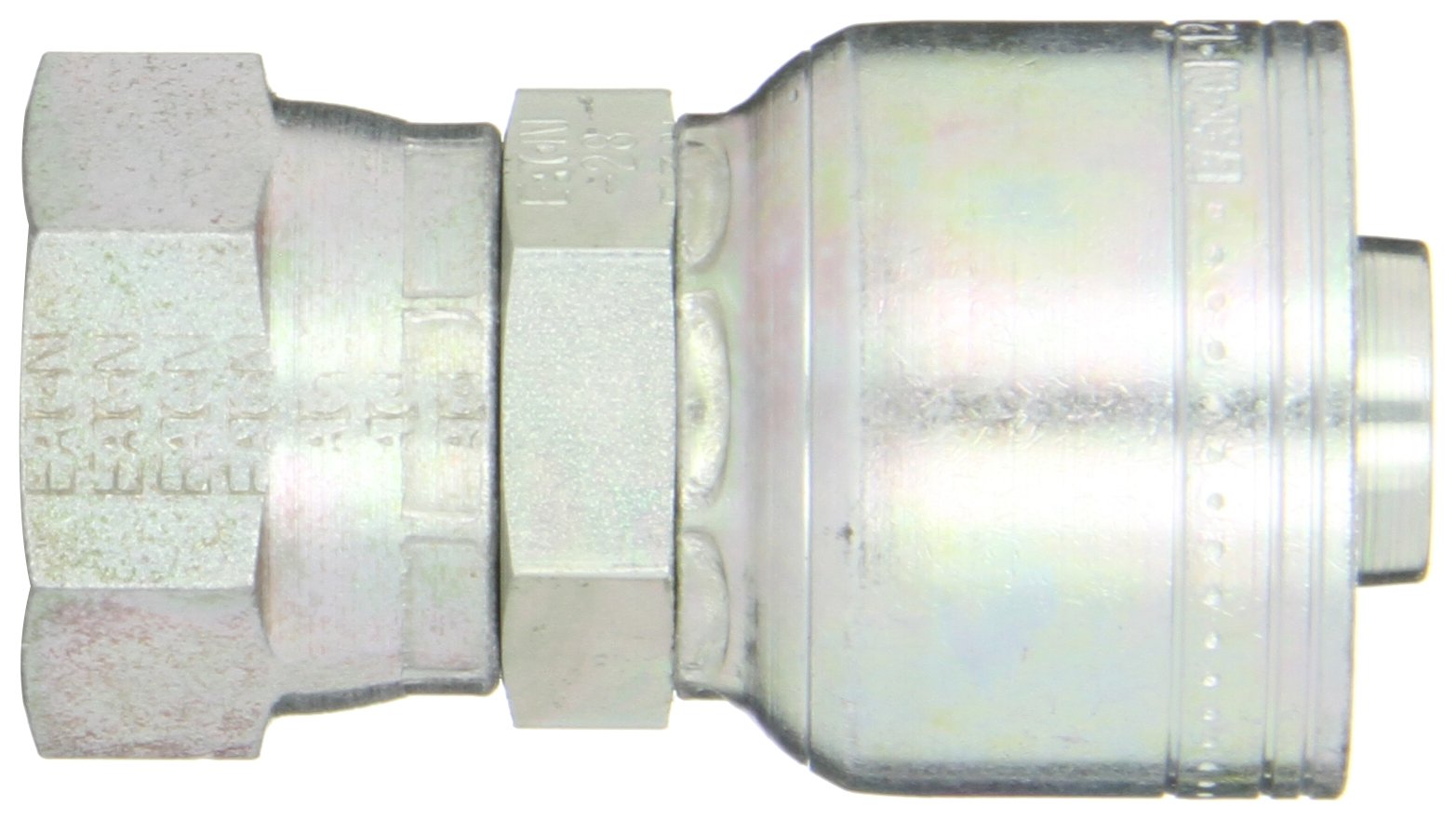

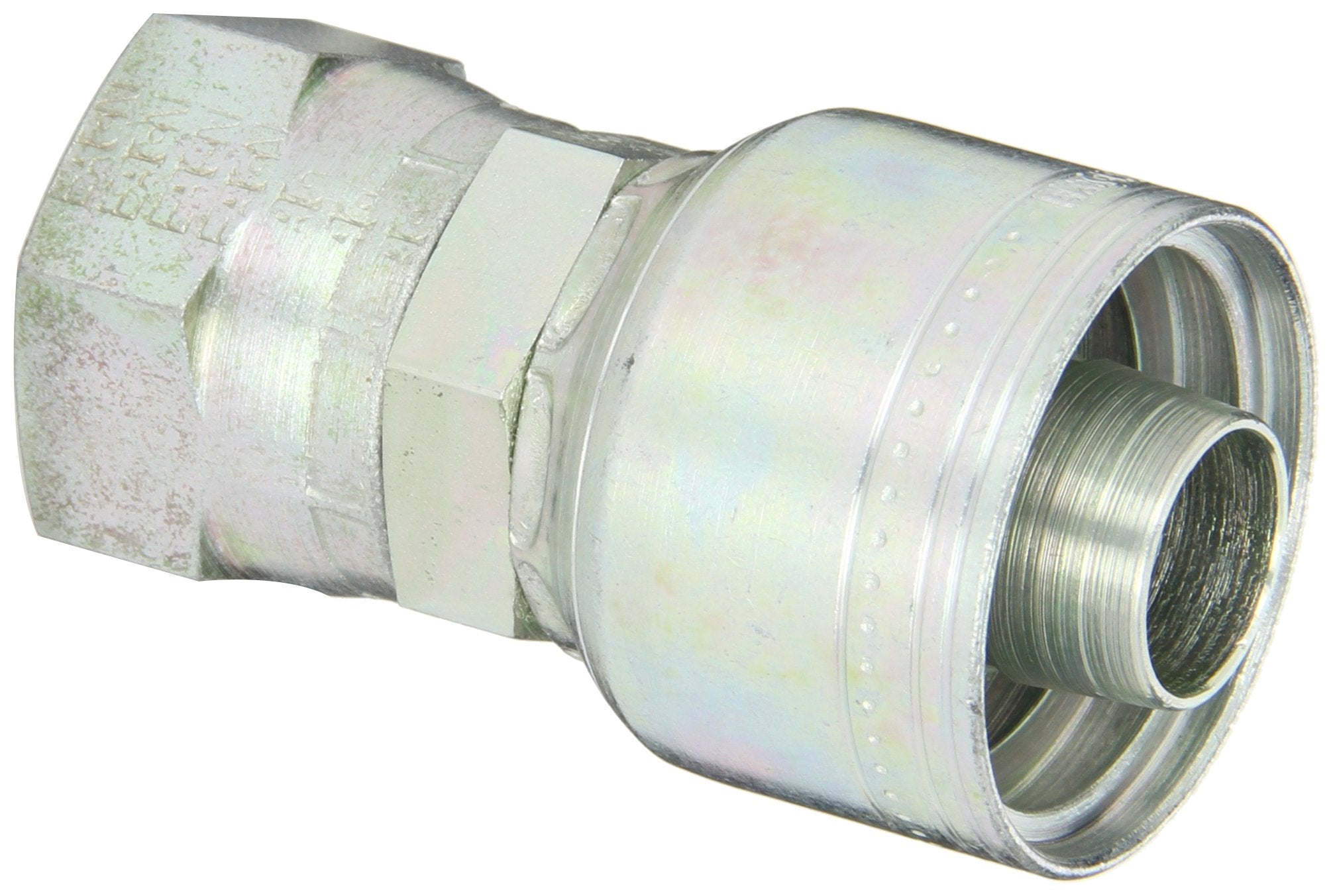

The EATON 1AA12FJ12 Aeroquip global crimp hydraulic hose fitting is a carbon steel hose crimp socket for a straight connection of hose to a pipe. Features a crimp socket on one end for attaching to the hose, with no skiving necessary, and a JIC 37-degree female swivel on the other end for connecting to a male threaded pipe. Designed exclusively for Aeroquip hose for low, medium, and high pressure hydraulic applications.

• Crimp socket for connecting steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and JIC 37-degree female swivel for connecting to a male threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

Carbon steel crimp fitting with JIC 37-degree female swivel, ideal for hydraulic applications. Features a Through-The-Cover crimping design for higher pressure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA12FJ12

Technical Specifications

• Material: Carbon Steel
• Coating: Zinc-plated
• Hose ID: 3/4"
• Thread Size: 1-1/16" - 12
• Fitting Type: Female JIC Swivel, Straight
• Application: Hydraulic
• Standards Met: SAE
