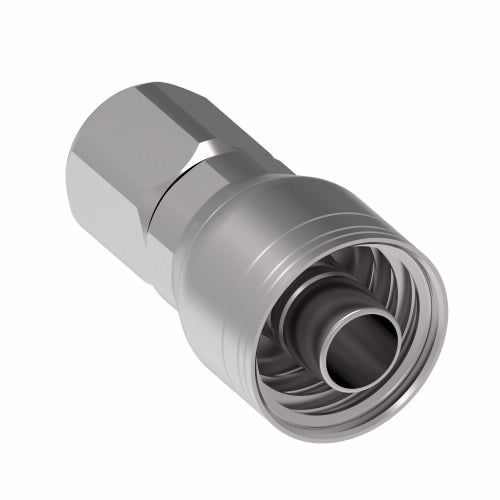

Eaton 1AA10FJ8 Aeroquip Carbon Steel Global TTC Crimp Hose Fitting Female JIC Swivel, Straight, 1/2 inches Hose ID, 7/8 inches - 14 Thread

Product Description

The EATON 1AA10FJ8 Aeroquip global crimp hydraulic hose fitting is a carbon steel hose crimp socket for a straight connection of hose to a pipe. It features a crimp socket on one end that attaches to the hose, with no skiving necessary, and a JIC 37-degree female swivel on the other end for connecting to a male threaded pipe. Designed for low and medium pressure hydraulic applications.

• Crimp socket for connecting steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and JIC 37-degree female swivel for connecting to a male threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

This carbon steel crimp hose fitting provides a secure and corrosion-resistant connection for hydraulic hoses in various applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA10FJ8
• Country of Origin: US

Technical Specifications

• Material: Carbon Steel
• Hose ID: 1/2"
• Thread Size: 7/8"-14
• Angle shape: Straight
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• Compatible hose id: 0.5 inch
• Compatible hoses: 2661(–12 thru –32), FC310, FC510, FC579, FC611, FC619 (–12 thru –32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681–6, GH781, GH793, EC115, EC215, EC110, EC210, EC118
• Construction style: Crimp
• End gender 1: Female
• End size 1: 7/8 IN
• End Size 2: 0.500 IN
• End type 1: JIC 37
• End Type 2: Line/Hose/Tube
• Finish plating: DURA-KOTE
• Hex size 1: 1 inch
• Hex size 2: 0.875 inch
• Hose cut off factor: 1.47 inch
• Hose dash size: -8
• Inside Diameter: 0.38 inch
• Outside Diameter: 1.22 inch
• Product height: 1.22
• Product length: 2.64
• Product material: Carbon steel
• Product trade name: 1A Series
• Product weight: 0.25
• Product width: 1.22
• Sub brand: Aeroquip
• Thread sealant: No
• Thread size 1: 7/8-14
• Torque: 188-213 LB/FT
• Brand: Aeroquip
• Fitting Movement: Swivel
• Fitting Shape: Straight
• For Hose Dash Size: -8
• For Hose I.d.: 1/2"
• For Use With Hose Series: 2661(-12 THROUGH -32) Series, EC110 Series, EC115 Series, EC118 Series, EC210 Series, EC215 Series, FC310 Series, FC510 Series, FC579 Series, FC611 Series, FC619 (-12 THROUGH -32) Series, FC639/FC839B Series, FC693 Series, FC735 Series, FC849/FC849B Series, GH120 Series, GH194 Series, GH195 Series, GH663 Series, GH681-6 Series, GH781 Series, GH793 Series
• Height: 1.22"
• Inside Dia.: 0.38"
• Length: 2 16/25"
• Material Grade: Grade 12L14, Grade 12L15
• Reusable: No
• Thread Type: JIC
• Vacuum Rating: Not Rated
• Width: 1.22"
