Eaton 1AA10FJ10 Aeroquip Carbon Steel Global TTC Crimp Hose Fitting Female JIC Swivel 5/8 inches Hose ID, 7/8 inches - 14 Thread

Product Description

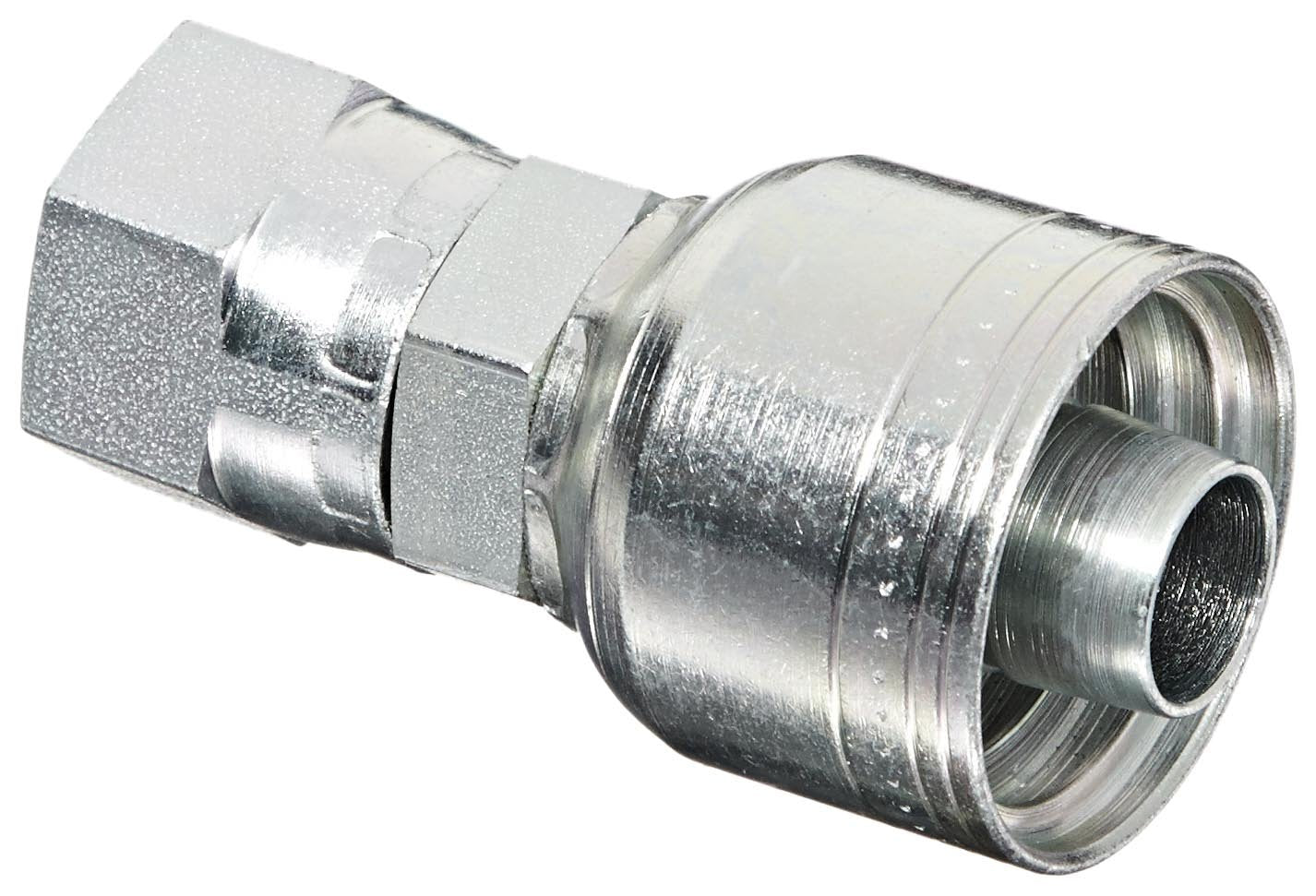

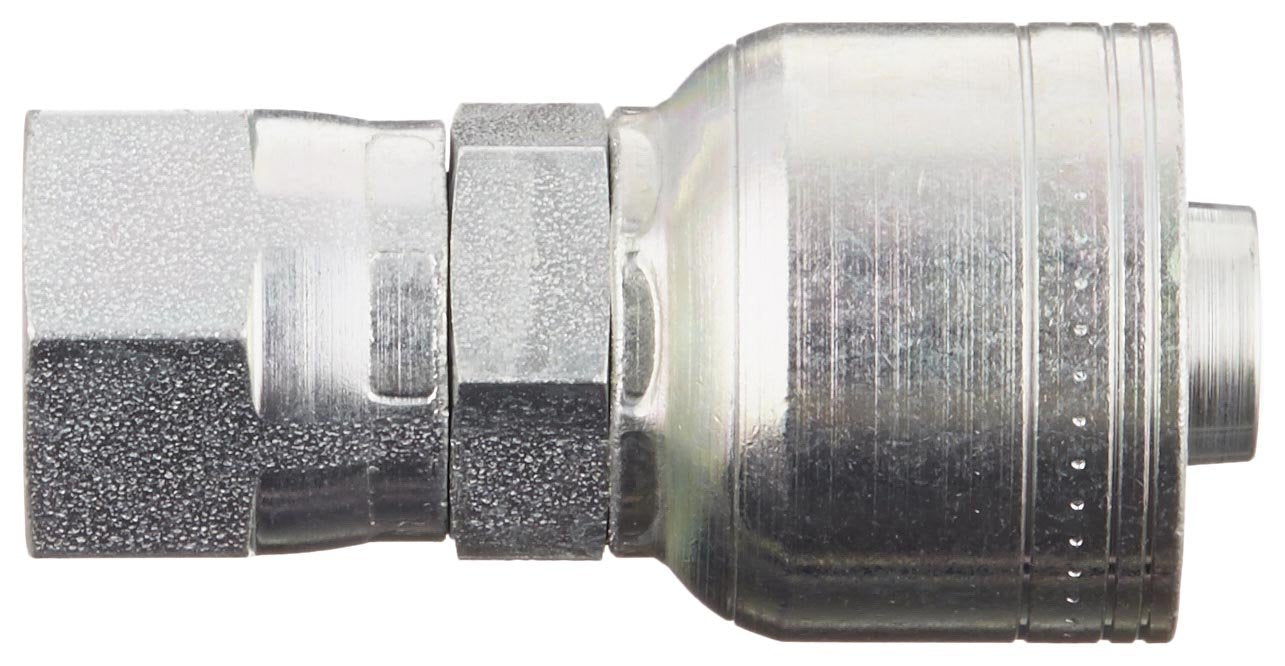

The Eaton 1AA10FJ10 Aeroquip global crimp hydraulic hose fitting is a carbon steel hose crimp socket for a straight connection of hose to a pipe. It features a crimp socket on one end for attaching to the hose, with no skiving necessary, and a JIC 37-degree female swivel on the other end for connecting to a male threaded pipe. It is designed exclusively for Aeroquip hose for low, medium, and high pressure hydraulic applications.

• Crimp socket for connecting steel wire-reinforced hydraulic hose to pipe
• Crimp fitting on one end for attaching to hose and JIC 37-degree female swivel for connecting to a male threaded pipe
• Zinc-plated AISI 12L14 carbon steel for tensile strength, hardness, and corrosion resistance

Product Highlights

This carbon steel hose fitting offers a reliable connection for hydraulic applications, featuring a crimp socket and JIC female swivel.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 1AA10FJ10

Technical Specifications

• Manufacturer: Eaton
• Brand: Aeroquip
• Model / MPN: 1AA10FJ10
• Size: 5/8" Hose ID, 7/8" - 14 Thread
• Product Type: HOSE_PIPE_FITTING
• Product Group: BISS
• Adapter Type: Hose Fittings
• End Gender: Female
• Hose Inside Diameter: 5/8 in
• Material: Carbon Steel
• Thread Size: 7/8-14
• Body Material: Carbon Steel
• Compatible Hose Series: 2661(–12 thru –32), FC310, FC510, FC579, FC611, FC619 (–12 thru –32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681–6, GH781, GH793, EC115, EC215, EC110, EC210, EC118
• Connection 1 Short Name: JIC 37
• Hose Cut-Off Factor: 1.62 in
• Length: 2.77 in
• Overall Length: 2.77 in
• Manufacturer Catalog Number: 1AA10FJ10
• Manufacturer Upc Number: 678146125071
• UPC_NO: 678146125071
• Finish: DURA-KOTE
• Application: General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist
• End 1 Size: 7/8 in
• End 1 Thread: 7/8-14
• Hex Size: 1 in
• End 1 Style: JIC 37
• Type: Hose Fitting
• Height: 1.39 in
• Angle: 180 °
• Finish/Coating: DURA-KOTE
• Outer Diameter: 1.386 in
• Compatible Tube Outer Diameter: 1.5 in
• End 2 Size: 0.625 in
• Hose Dash Size: -24
• Width: 1.39 in
